Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 09:51 AM
F 0117_F 0116 _11092017_025950.mp4
- Date
- 09/11/2017
- W/O
- 651793
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00041
- PipeID
- P10247
- Time
- 2:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4727
- Sewer Name
- F JOINT OUTFALL F - UNIT 5
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_651793_TV02237_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- F 0117
- Downstream MH
- F 0116
- Dir. of Survey
- Downstream
- Length Surveyed
- 185.3 ft.
- Total Length
- 185.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2R00
- O&M Rating
- 186
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 186
Observation photos (2)

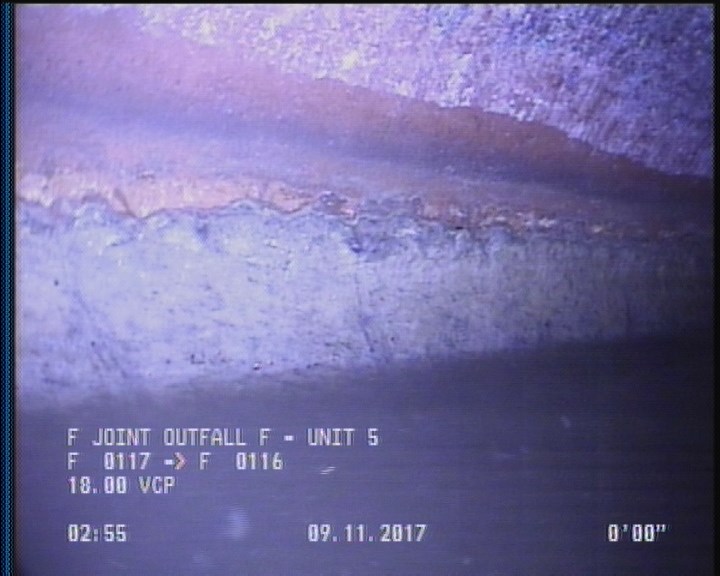

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

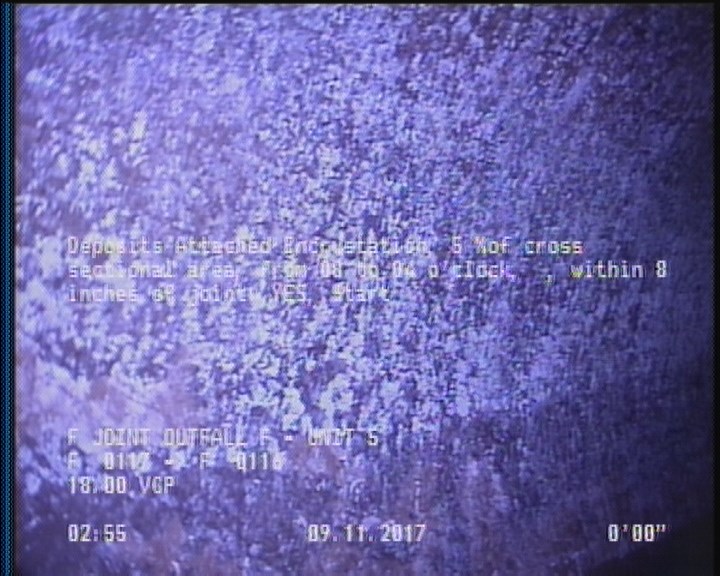

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 77 | DSZ | DEBRIS |
| 0 | AMH | F 0117 |
| 185.3 | AMH | F 0116 |
| 0 | MWL | — |
| 183.4 | DAGS | — |
| 0 | MWM | — |
| 183.4 | DSZ | — |
| 184 | MGO | UNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK |
| 2 | DAE | — |
| 183.4 | DAE | — |
Properties (5)
- additional_info
- SC345736
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-11T02:51:01-07:00
- sewer_category
- Gravity
