Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 07:51 AM

  • F 0100_F 0099_30082017_023546.mp4

Date
08/30/2017
W/O
651793
Weather
Dry
Operator/Surveyor
KYLE A.
Sewer ID
Z00041
PipeID
P10230
Time
12:51 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4809
Sewer Name
F JOINT OUTFALL F - UNIT 5
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_651793_TV02237_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
F 0100
Downstream MH
F 0099
Dir. of Survey
Downstream
Length Surveyed
251.4 ft.
Total Length
251.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole F 0100 to F 0099
MH: F 0100MH: F 0099downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 01000 ft. MWM - Water Mark, 15 %of cross sectional area18.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start18.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start32.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"86.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"117.2 ft. MGP - General Photograph132 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"182.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"234.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"247.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Finish247.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish251.4 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK251.4 ft. AMH - Downstream Manhole, Survey Ends - F 0099

Observation photos (3)

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

    18.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

    18.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

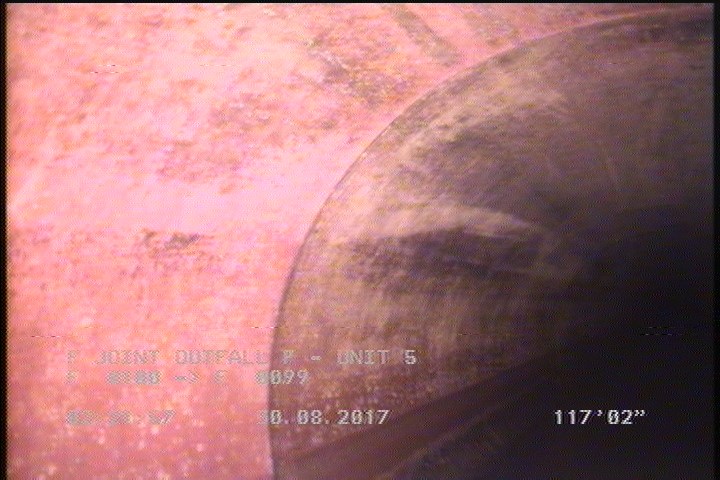

  • General Photograph

    117.2 ft. - General Photograph

All inspections of P10230Work order 651793

Observations (16)

DistanceCodeObservation
251.4MGOCONNECTION AT MH 3 OCLOCK
251.4AMHF 0099
132TFC—
182.3TFC—
247.9DAE—
0MGOCONNECTION AT MH 3 OCLOCK
117.2MGP—
18.3DAGS—
247.9DAGS—
32.4TFC—
234.8TFC—
18.4DAE—
0MWL—
0AMHF 0100
0MWM—
86.7TFA—

Properties (5)

additional_info
SC353041
custom_field_two
4
customer
LACSD
datetime
2017-08-30T00:51:13-07:00
sewer_category
Gravity
