Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 07:51 AM

  • F 0099_F 0097_30082017_030411.mp4

Date
08/30/2017
W/O
651793
Weather
Dry
Operator/Surveyor
KYLE A.
Sewer ID
Z00041
PipeID
P10229
Time
12:51 AM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4809
Sewer Name
F JOINT OUTFALL F - UNIT 5
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
WO_651793_TV02237_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
F 0099
Downstream MH
F 0097
Dir. of Survey
Downstream
Length Surveyed
270.6 ft.
Total Length
270.6 ft.
Structural Index
4
Structural Quick
5132
Structural Rating
11
O&M Index
2
O&M Quick
2T00
O&M Rating
206
Overall Index
2
Overall Quick
—
Overall Rating
217
Pipe schematic from manhole F 0099 to F 0097
MH: F 0099MH: F 0097downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 00990 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK15.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start15.9 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start21.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"30.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO33.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"86 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"86 ft. MGP - General Photograph - HOLE VOID IN TAP86 ft. HVV - Hole Void Visible, from 02 to 03 o'clock, within 8 inches of joint: NO135.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"217.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"253.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO266.3 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: NO268.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish268.9 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish269.8 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK269.8 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK270.6 ft. AMH - Downstream Manhole, Survey Ends - F 0097

Observation photos (8)

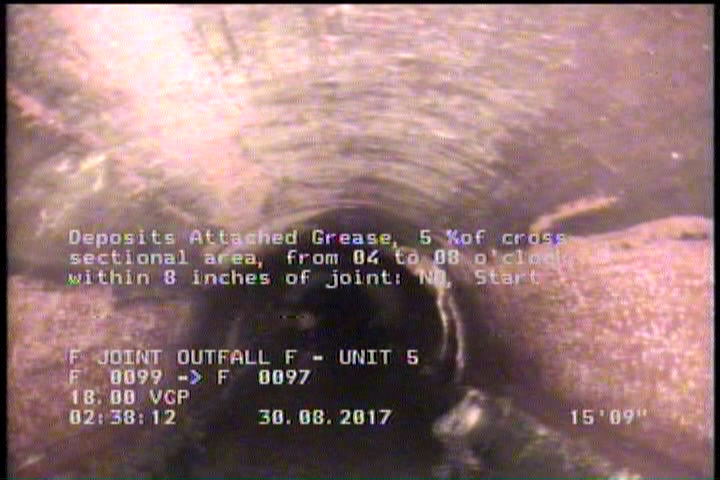

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    15.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    21.3 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO

    30.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    86 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

  • General Photograph - HOLE VOID IN TAP

    86 ft. - General Photograph - HOLE VOID IN TAP

  • Hole Void Visible, from 02 to 03 o'clock, within 8 inches of joint: NO

    86 ft. - Hole Void Visible, from 02 to 03 o'clock, within 8 inches of joint: NO

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO

    253.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO

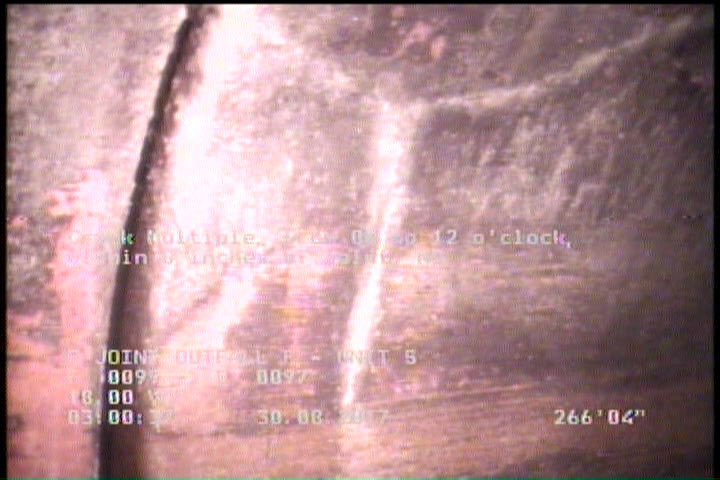

  • Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: NO

    266.3 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: NO

All inspections of P10229Work order 651793

Observations (22)

DistanceCodeObservation
86TF—
33.2TFA—
268.9DAGS—
193.1TFC—
86MGPHOLE VOID IN TAP
270.6AMHF 0097
15.9DSF—
269.8MGOCONNECTION AT MH 3 OCLOCK
135.5TFC—
30.8DAGS—
0MWM—
21.3TF—
269.8MGOCONNECTION AT MH 9 OCLOCK
266.3CM—
0AMHF 0099
0MWL—
0MGOCONNECTION AT MH 3 OCLOCK
268.9DSF—
217.9TFC—
15.8DAGS—
86HVV—
253.1CM—

Properties (5)

additional_info
SC353041
custom_field_two
2
customer
LACSD
datetime
2017-08-30T00:51:57-07:00
sewer_category
Gravity
