Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 11:01 AM
F 0115_F 0114 _30082017_040946.mp4
- Date
- 08/30/2017
- W/O
- 651793
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00041
- PipeID
- P10245
- Time
- 4:01 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4809
- Sewer Name
- F JOINT OUTFALL F - UNIT 5
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_651793_TV02237_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- F 0114
- Downstream MH
- F 0115
- Dir. of Survey
- Upstream
- Length Surveyed
- 215.5 ft.
- Total Length
- 215.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

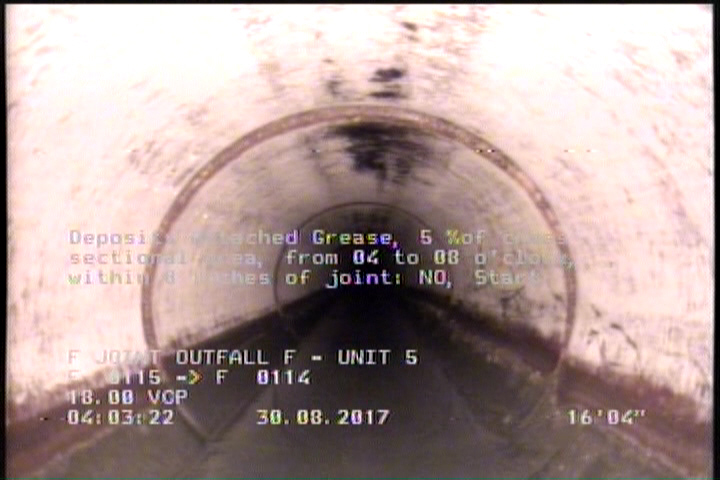

16.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

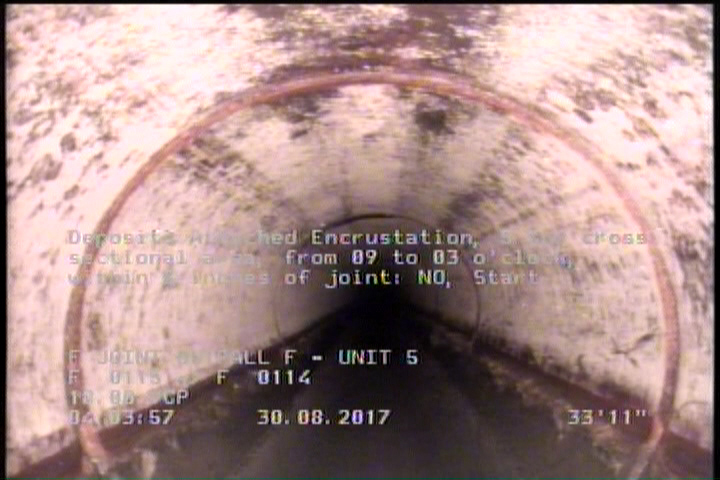

33.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 215.5 | MGO | ACTIVE CONNECTION AT MH 9 OCLOCK |
| 212.3 | DAGS | — |
| 0 | MWM | — |
| 212.3 | DAE | — |
| 0 | MWL | — |
| 0 | AMH | F 0114 |
| 16.4 | DAGS | — |
| 212.3 | DSF | — |
| 215.5 | AMH | F 0115 |
| 33.8 | DAE | — |
| 166.7 | DSF | — |
Properties (5)
- additional_info
- SC353041
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-30T04:01:02-07:00
- sewer_category
- Gravity
