Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 03:04 PM
02 1935_02 1934_29082017_084448.mp4
- Date
- 08/29/2017
- W/O
- 651724
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00238
- PipeID
- P04708
- Time
- 8:04 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4808
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- MONTEREY PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_651724_TV02182_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1934
- Downstream MH
- 02 1935
- Dir. of Survey
- Upstream
- Length Surveyed
- 173.4 ft.
- Total Length
- 173.4 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

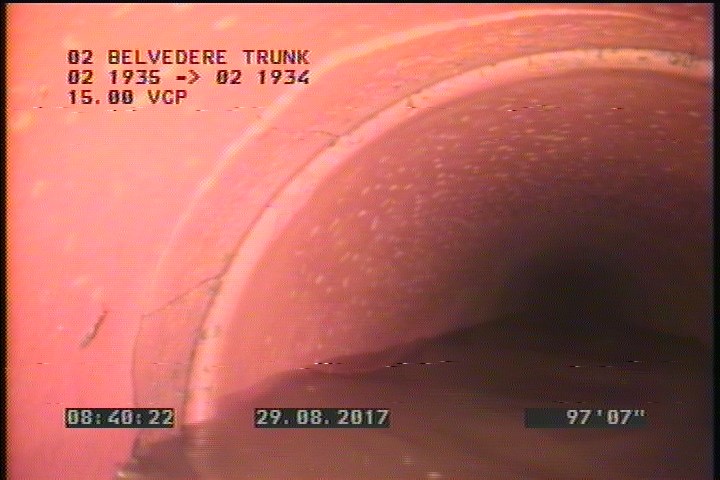

97.4 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

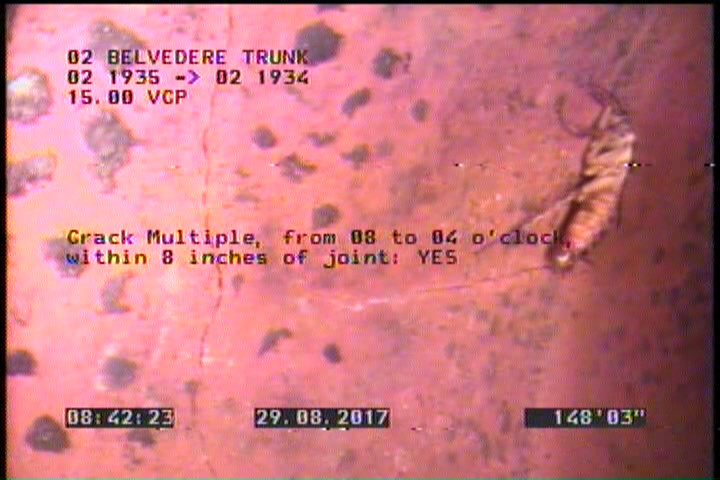

148.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 97.4 | FM | — |
| 0 | MWM | — |
| 148.2 | CM | — |
| 0 | MWL | — |
| 172 | MGO | SPALLING THROUGHOUT REACH |
| 1.8 | MSC | PIPE CHANGE TO 12" |
| 173.4 | AMH | 02 1935 |
| 0 | AMH | 02 1934 |
Properties (5)
- additional_info
- SC353039
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-29T08:04:58-07:00
- sewer_category
- Gravity
