Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2017, 09:37 PM

  • 02 1924_02 1923_12092017_144830.mp4

Date
07/26/2017
W/O
651724
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00238
PipeID
P04272
Time
2:37 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4723
Sewer Name
02 BELVEDERE TRUNK
City
MONTEREY PARK
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
05
Purpose
Routine Assessment
Project
WO_651724_TV02182_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1924
Downstream MH
02 1923
Dir. of Survey
Downstream
Length Surveyed
244.5 ft.
Total Length
244.5 ft.
Structural Index
3
Structural Quick
3G22
Structural Rating
124
O&M Index
2
O&M Quick
2I00
O&M Rating
98
Overall Index
2
Overall Quick
—
Overall Rating
222
Pipe schematic from manhole 02 1924 to 02 1923
MH: 02 1924MH: 02 1923downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MH0 ft. AMH - Upstream Manhole, Survey Begins - 02 192422 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES42.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES43.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"43.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES47 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start244.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish244.1 ft. MGO - General Observation - COCKROACHES IN MH244.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish244.5 ft. AMH - Downstream Manhole, Survey Ends - 02 1923

Observation photos (5)

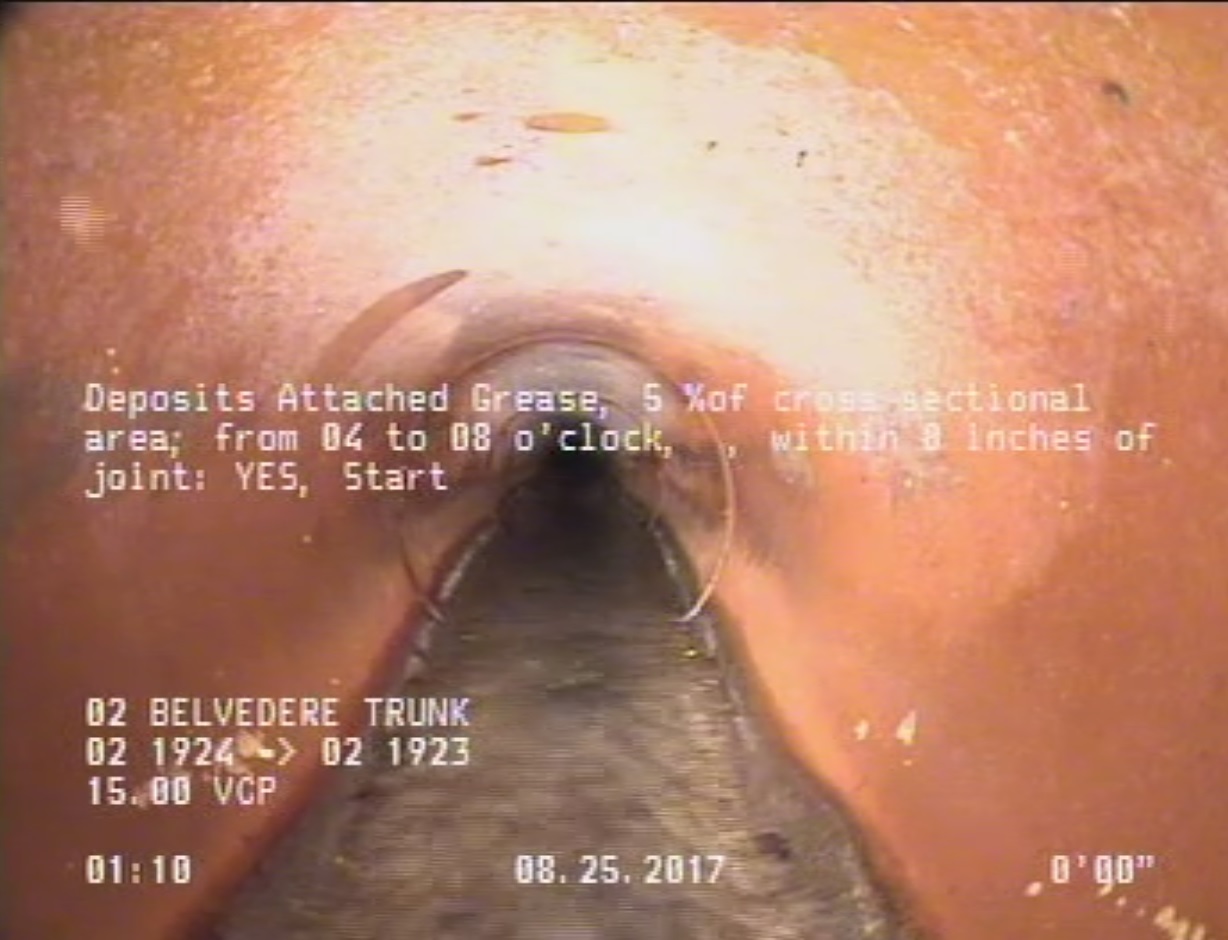

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

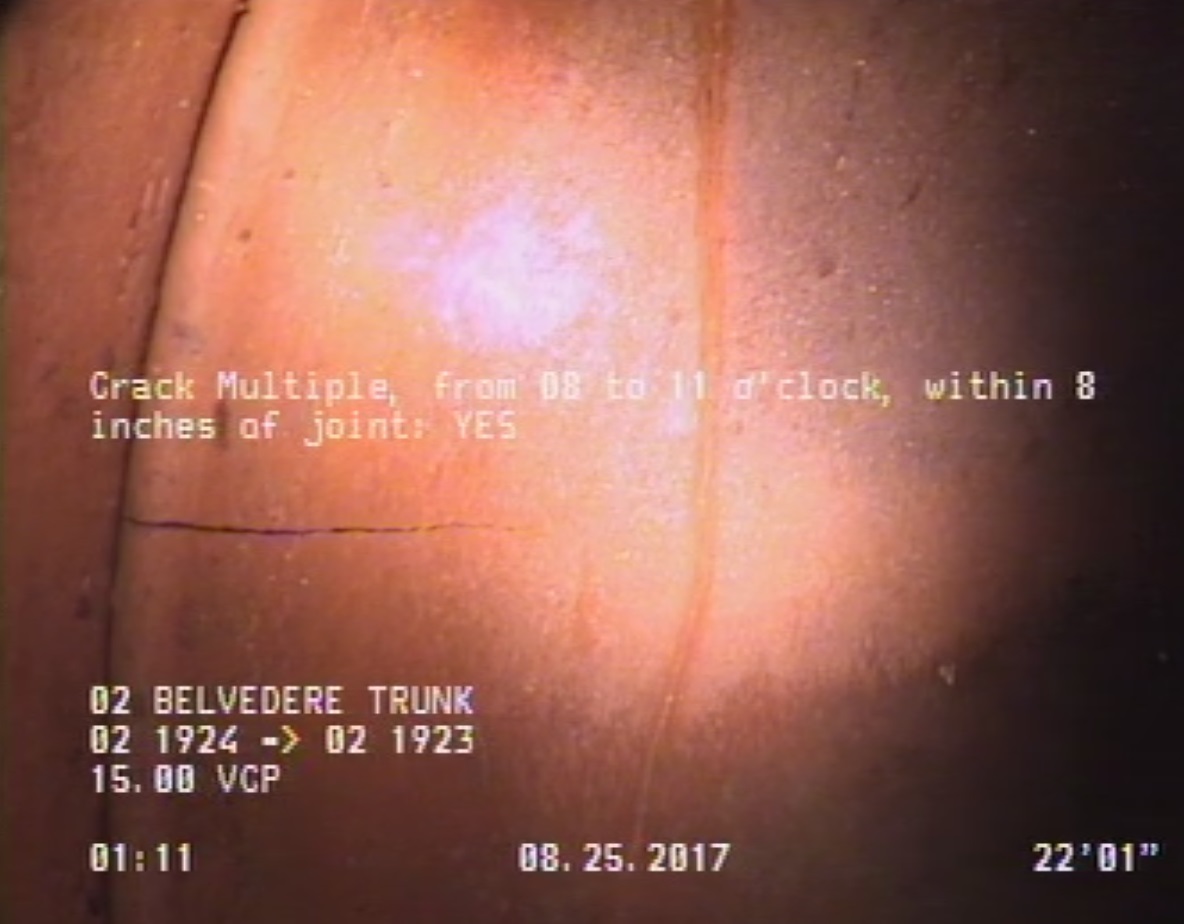

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    22 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

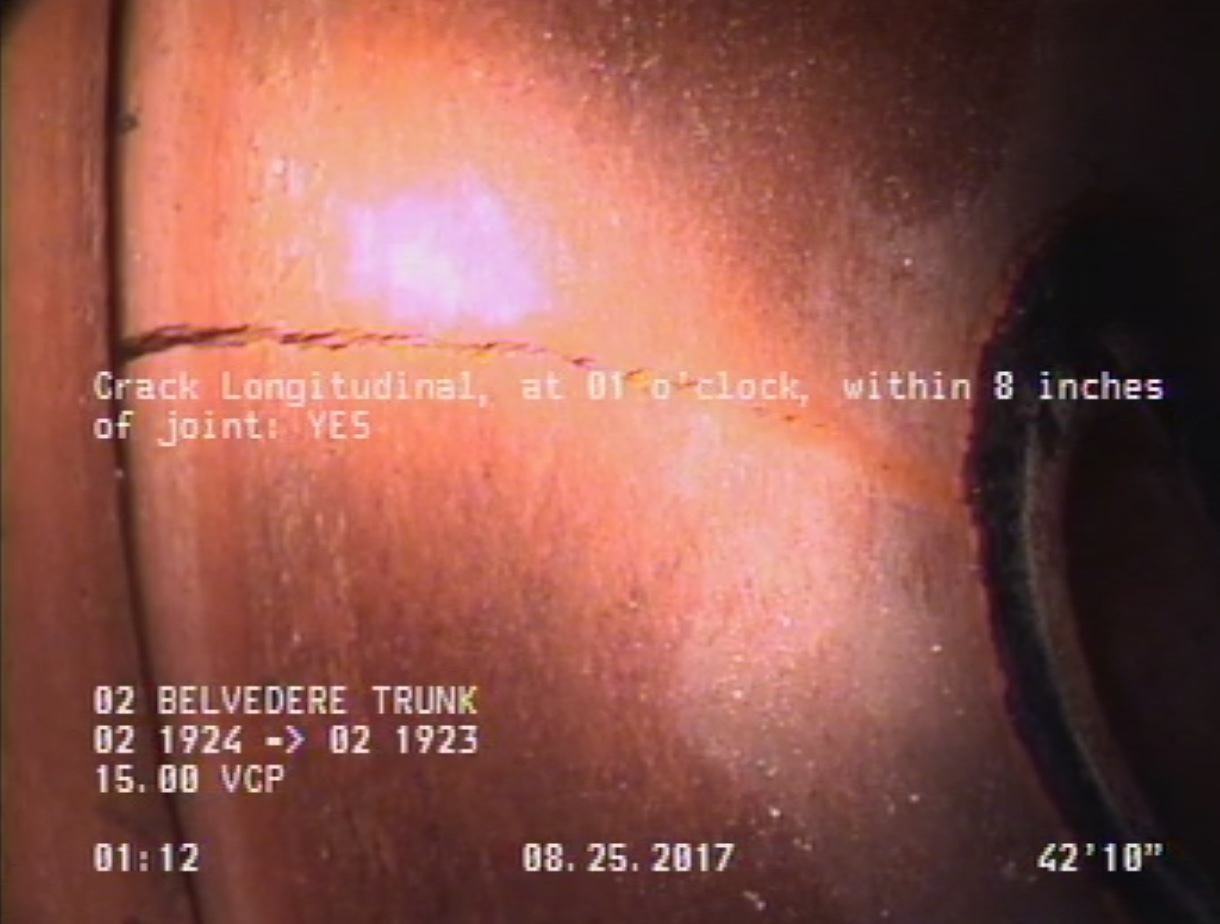

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    42.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

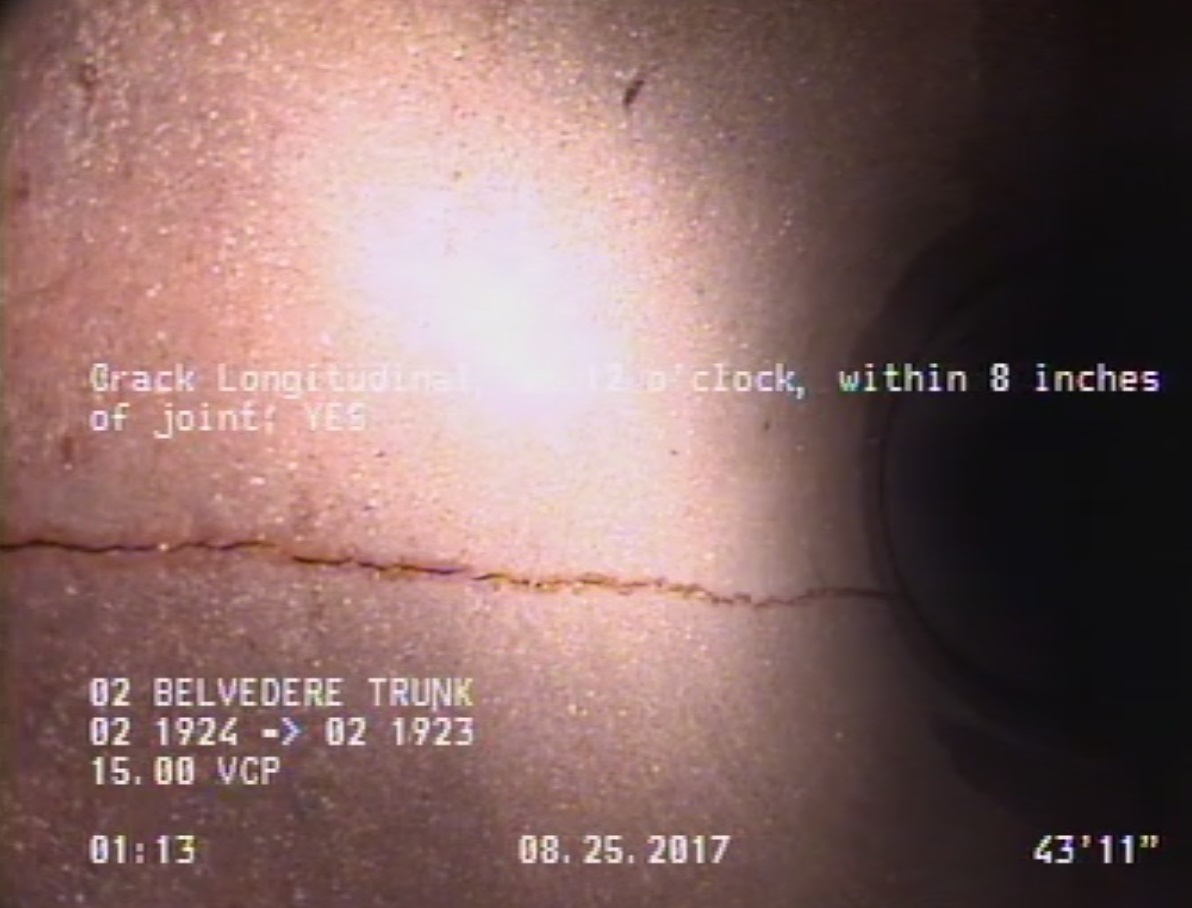

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    43.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

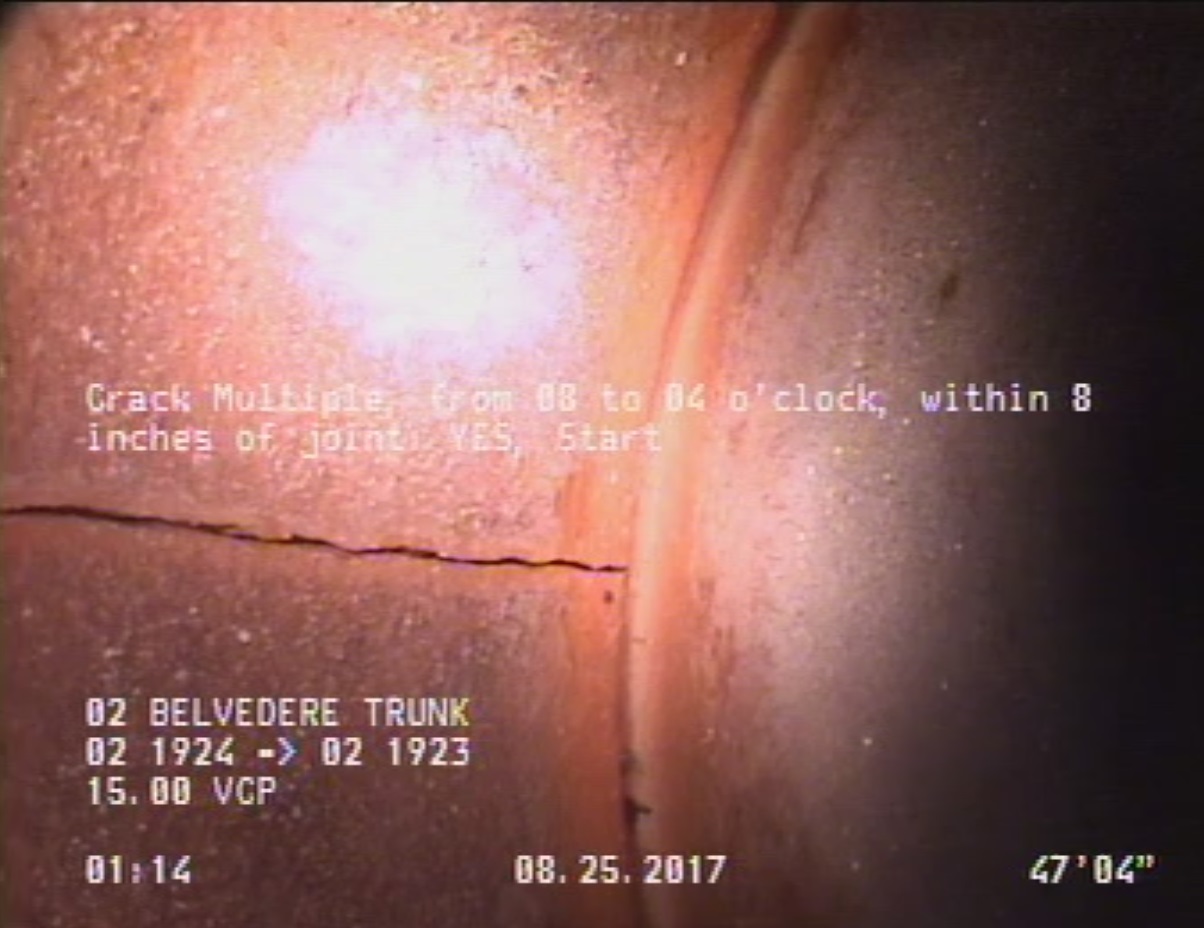

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    47 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04272Work order 651724

Observations (14)

DistanceCodeObservation
0MWM—
43.1TFC—
244.1CM—
0DAGS—
47CM—
0MWL—
43.1CL—
22CM—
0MGOCOCKROACHES IN MH
244.1MGOCOCKROACHES IN MH
0AMH02 1924
244.5AMH02 1923
244.1DAGS—
42.1CL—

Properties (5)

additional_info
SC345727
custom_field_two
3
customer
LACSD
datetime
2017-07-26T14:37:36-07:00
sewer_category
Gravity
