Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 02:27 PM
02 1929_02 1928_29082017_074115.mp4
- Date
- 08/29/2017
- W/O
- 651724
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00238
- PipeID
- P04277
- Time
- 7:27 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4808
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- MONTEREY PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_651724_TV02182_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1929
- Downstream MH
- 02 1928
- Dir. of Survey
- Downstream
- Length Surveyed
- 355.3 ft.
- Total Length
- 355.3 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

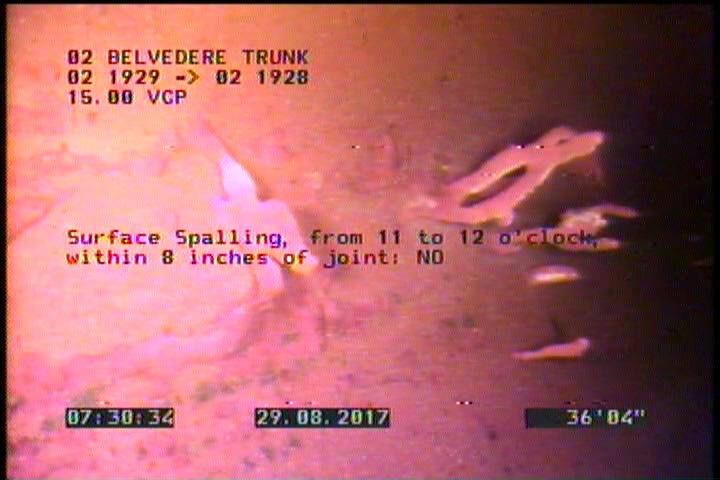

36.3 ft. - Surface Spalling, from 11 to 12 o'clock, within 8 inches of joint: NO

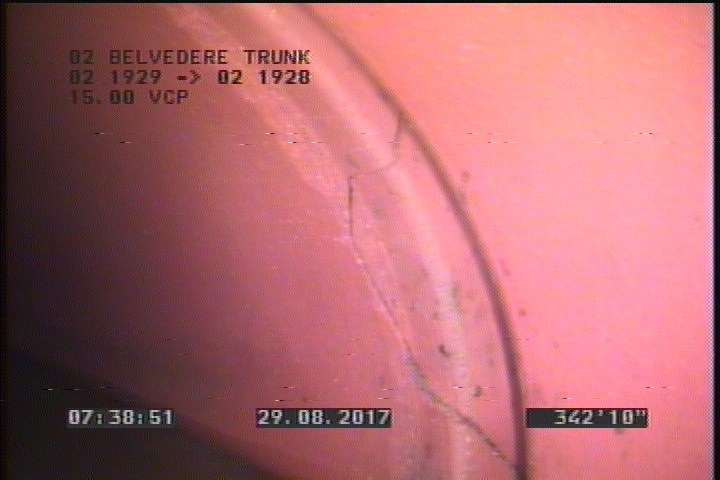

342.8 ft. - Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES

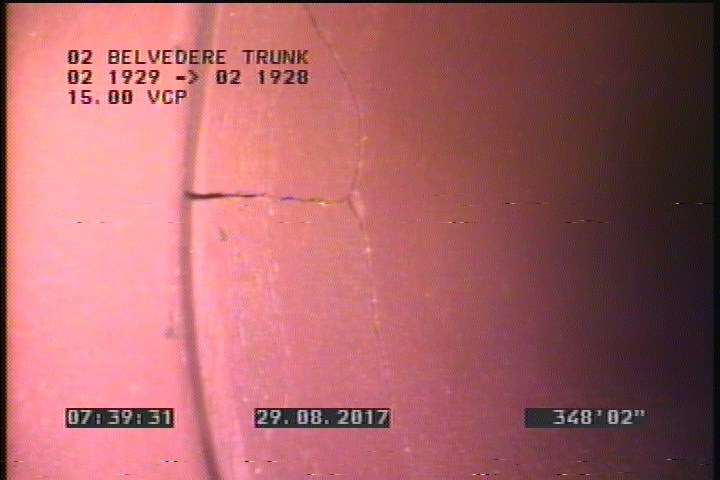

348.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 355.3 | AMH | 02 1928 |
| 348.2 | CM | — |
| 36.3 | SSS | — |
| 0 | AMH | 02 1929 |
| 354 | MGO | SPALLING THROUGHOUT THE REACH |
| 342.8 | CM | — |
Properties (5)
- additional_info
- SC353039
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-29T07:27:29-07:00
- sewer_category
- Gravity
