Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 08:11 AM
C 0684_C 0683 _09082017_011559.mp4
- Date
- 09/08/2017
- W/O
- 651655
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00126
- PipeID
- P24967
- Time
- 1:11 AM
- Certificate
- U-715-7000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4963
- Sewer Name
- C JOINT OUTFALL C - UNIT 4A
- City
- LONG BEACH
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_651655_TV03069_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- C 0684
- Downstream MH
- C 0683
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.3 ft.
- Total Length
- 16.3 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

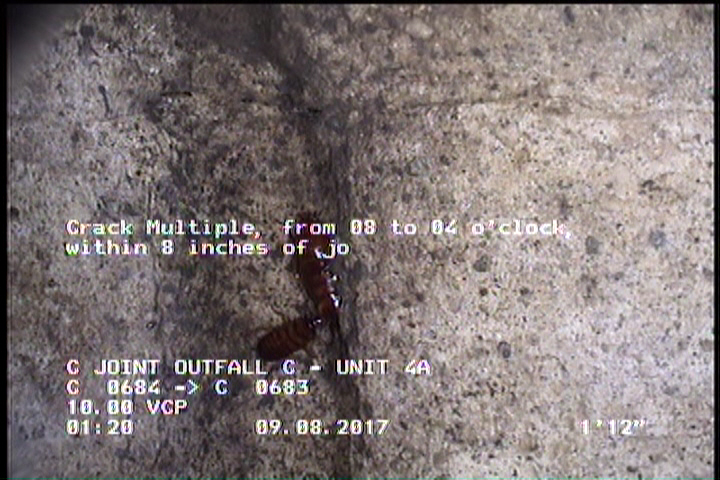

2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

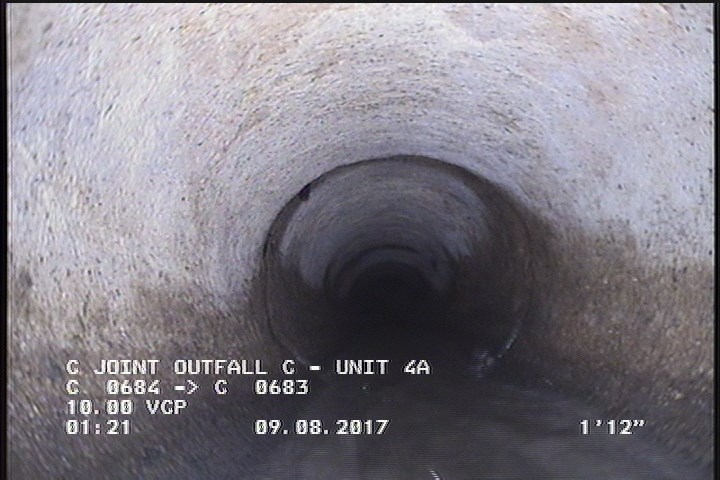

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

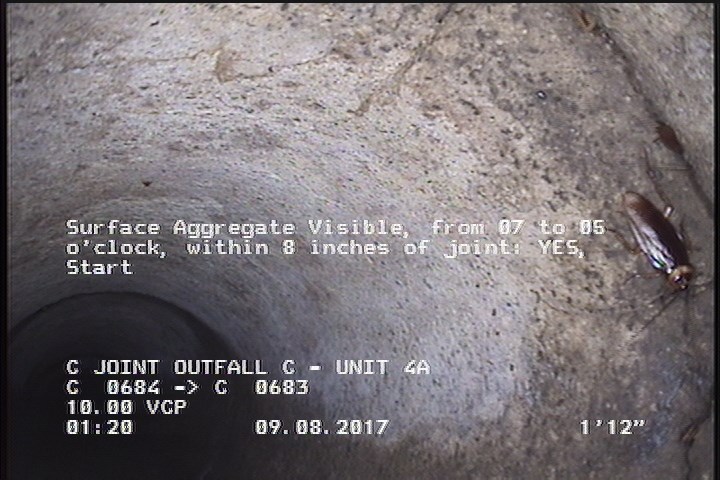

2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 16.3 | DAGS | — |
| 16 | MGO | SPALLING FROM 08 TO 04 O'CLOCK THROUGHOUT THE REACH |
| 0 | AMH | C 0684 |
| 16.3 | MGO | CONNECTION AT 3 OC |
| 0.2 | MGO | DB STATES VCP ACTUALLY NRCP |
| 2 | CM | — |
| 0 | MWL | — |
| 16.3 | AMH | C 0683 |
| 16.3 | SAV | — |
| 0 | MWM | — |
| 0.2 | MMC | — |
| 2 | DAGS | — |
| 2 | SAV | — |
Properties (5)
- additional_info
- SC345954
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-08T01:11:04-07:00
- sewer_category
- Gravity
