Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 09:34 AM
C 0687_C 0114 _09082017_023625.mp4
- Date
- 09/08/2017
- W/O
- 651655
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00126
- PipeID
- P24970
- Time
- 2:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4963
- Sewer Name
- C JOINT OUTFALL C - UNIT 4A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_651655_TV03069_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- C 0687
- Downstream MH
- C 0114
- Dir. of Survey
- Downstream
- Length Surveyed
- 89.4 ft.
- Total Length
- 89.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4132
- O&M Rating
- 48
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (2)

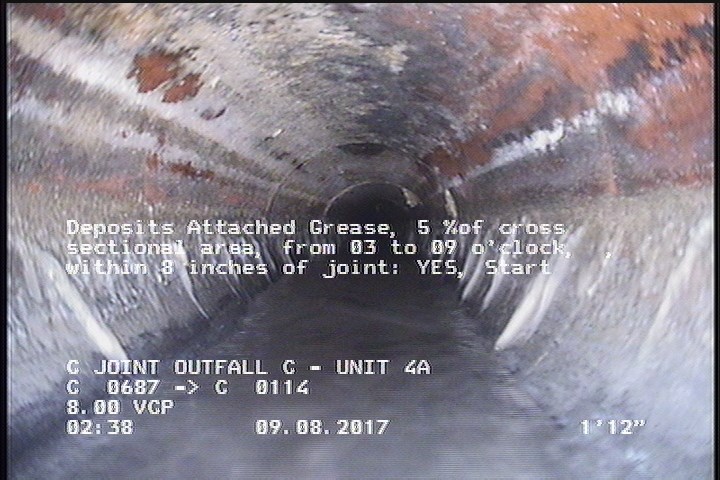

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

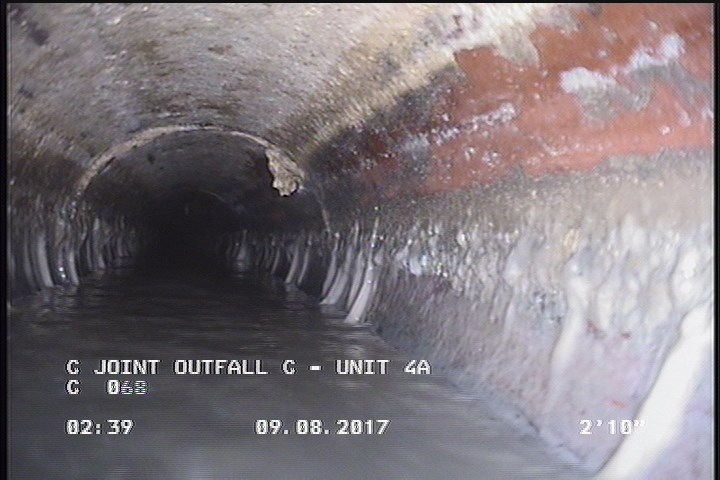

2.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 89.4 | DAGS | — |
| 2 | DAGS | — |
| 88 | MGO | SPALLING FROM 08 TO 04 O'CLOCK THROUGHOUT THE REACH |
| 89.4 | AMH | C 0114 |
| 0 | MWM | — |
| 2.9 | DAE | — |
| 89.4 | DSC | — |
| 0 | MWL | — |
| 89.4 | DAE | — |
| 0 | AMH | C 0687 |
| 19.2 | DSC | — |
Properties (5)
- additional_info
- SC345954
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-08T02:34:48-07:00
- sewer_category
- Gravity
