Wastewater/Activity/PacpInspection/1.0Sep 13, 2017, 10:45 AM
05 0783_05 0782 _13092017_034603.mp4
- Date
- 09/13/2017
- W/O
- 651654
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00553
- PipeID
- P06011
- Time
- 3:45 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4873
- Sewer Name
- 05 MANCHESTER-VERMONT DIVERSION EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_651654_TV05202_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0783
- Downstream MH
- 05 0782
- Dir. of Survey
- Downstream
- Length Surveyed
- 411.4 ft.
- Total Length
- 411.4 ft.
- Structural Index
- 3
- Structural Quick
- 4331
- Structural Rating
- 17
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (3)

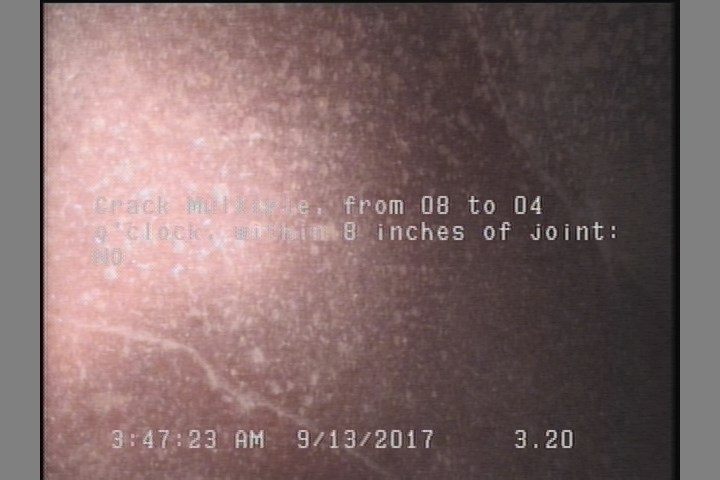

3.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: NO

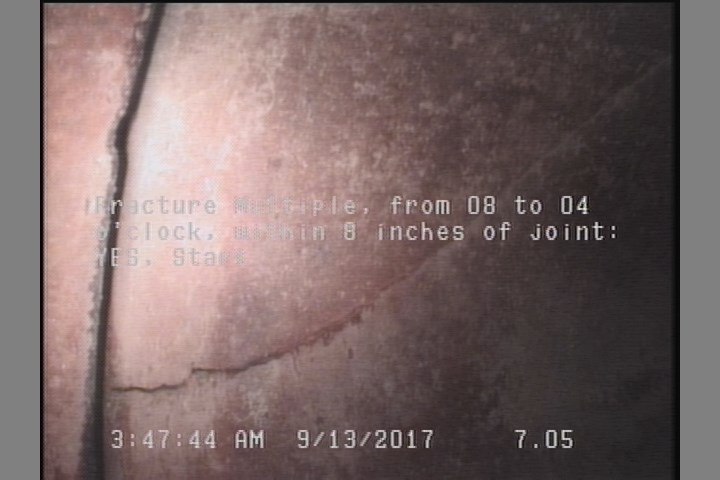

7.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

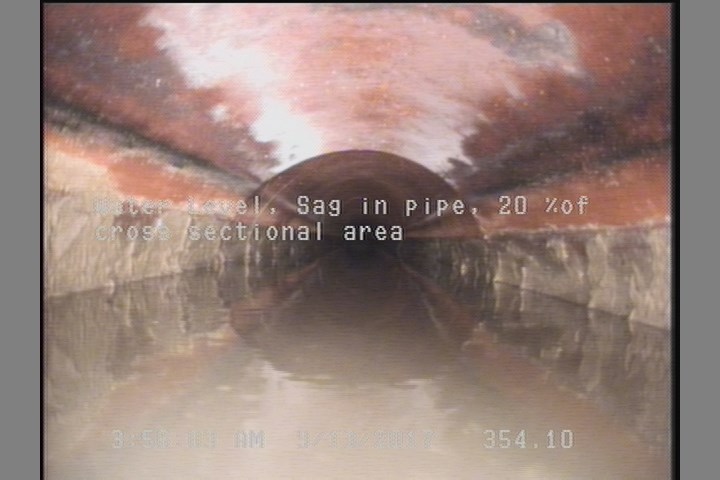

354.1 ft. - Water Level, Sag in pipe, 20 %of cross sectional area
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 407.1 | FM | — |
| 7.1 | FM | — |
| 3.2 | CM | — |
| 0 | MWL | — |
| 354.1 | MWLS | — |
| 369 | B | — |
| 0 | MWM | — |
| 410 | MGO | SPALLING THROUGHOUT THE REACH FROM 08 TO 04 O'CLOCK |
| 411.4 | AMH | 05 0782 |
| 0 | AMH | 05 0783 |
Properties (5)
- additional_info
- SC345932
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-09-13T03:45:46-07:00
- sewer_category
- Gravity
