Wastewater/Activity/PacpInspection/1.0Sep 1, 2017, 05:41 AM
01 1224_01 1223_31082017_224228.mp4
- Date
- 08/31/2017
- W/O
- 630377
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00226
- PipeID
- P02138
- Time
- 10:41 PM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4911
- Sewer Name
- 01 WILCOX AVENUE TRUNK, EXTENSION #1
- City
- BELL
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine assessment
- Project
- wilcox
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 01 1224
- Downstream MH
- 01 1223
- Dir. of Survey
- Downstream
- Length Surveyed
- 268.1 ft.
- Total Length
- 268.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

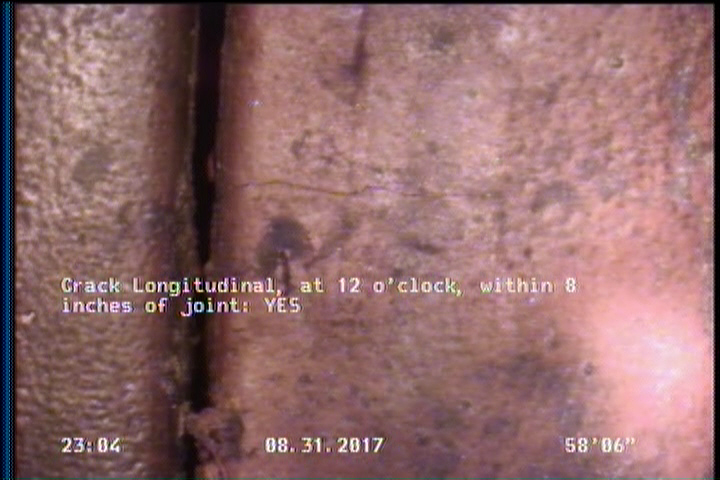

58.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

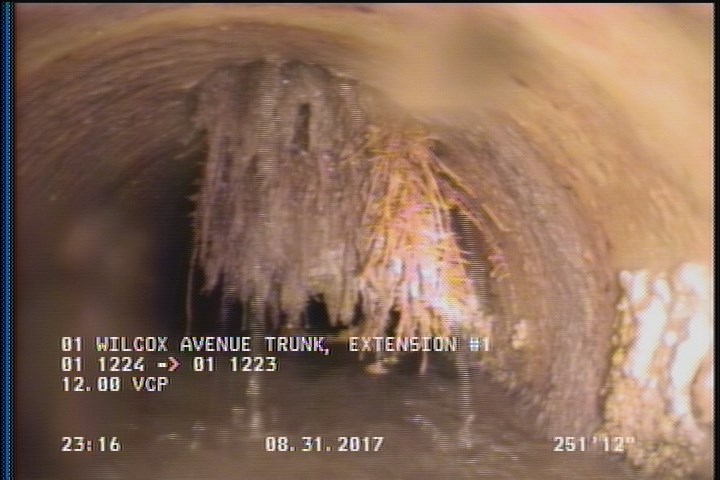

252 ft. - Roots Ball Lateral, at 12 o'clock, 20 %, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 64.8 | MGO | UNMAPPED MANHOLE |
| 0 | MWL | — |
| 0 | AMH | 01 1224 |
| 74.9 | TF | — |
| 65.4 | MMC | LINER STARTS |
| 102.1 | DSZ | — |
| 268.1 | AMH | 01 1223 |
| 0 | MWM | — |
| 58.5 | CL | — |
| 0 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 231.8 | TF | — |
| 252 | RBL | — |
| 65 | MGO | UNKNOWN MANHOLE CONNECTIONS INSIDE UNMAPPED MH. @ 03 AND 09 O'CLOCK |
| 252 | TFD | 80% ROOT BLOCKAGE |
Properties (5)
- additional_info
- SC345817
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-31T22:41:26-07:00
- sewer_category
- Gravity
