Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 11:12 AM
01 1216A_01 1216_30082017_041450.mp4
- Date
- 08/30/2017
- W/O
- 630377
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00226
- PipeID
- P02129
- Time
- 4:12 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4906
- Sewer Name
- 01 WILCOX AVENUE TRUNK, EXTENSION #1
- City
- CUDAHY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine assessment
- Project
- wilcox
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1216A
- Downstream MH
- 01 1216
- Dir. of Survey
- Downstream
- Length Surveyed
- 40.3 ft.
- Total Length
- 40.3 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4232
- O&M Rating
- 16
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 21
Observation photos (4)

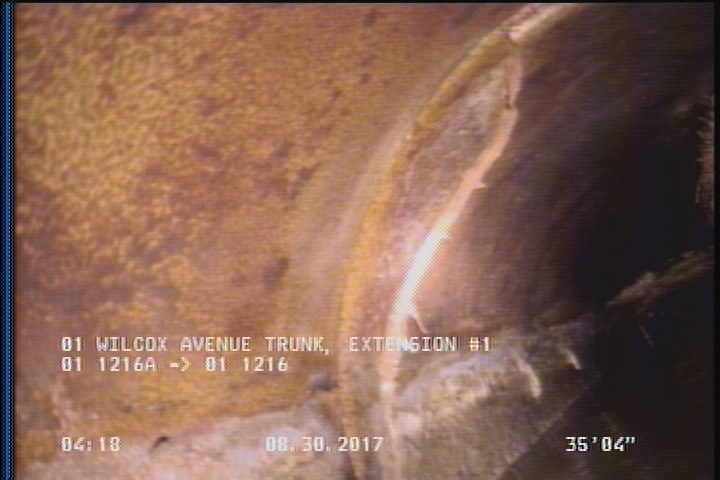

35.3 ft. - Broken, from 08 to 12 o'clock, within 8 inches of joint: YES

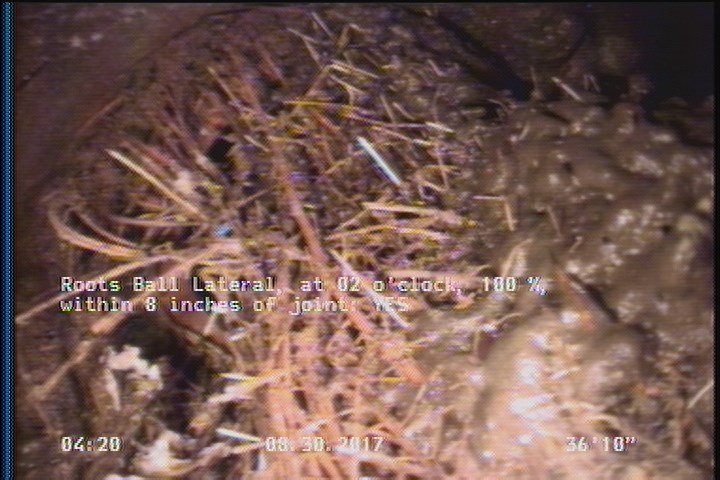

36.8 ft. - Roots Medium Lateral, at 02 o'clock, 15 %, within 8 inches of joint: YES

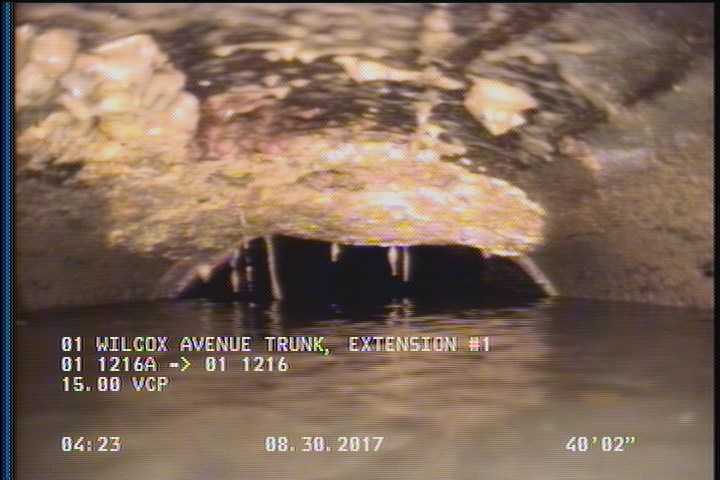

40.2 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

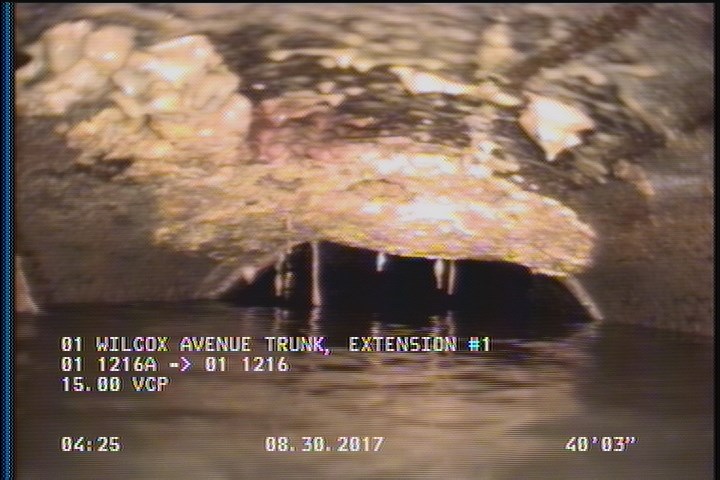

40.3 ft. - Survey Abandoned - A/S SEVERE DEBRIS UNABLE TO CONTINUE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 40.2 | DAGS | — |
| 36.8 | DSZ | — |
| 36.8 | TFD | 100% ROOT BLOCKAGE |
| 35.3 | B | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 40.3 | MSA | A/S SEVERE DEBRIS UNABLE TO CONTINUE |
| 40.2 | DSZ | — |
| 36.8 | RML | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 34.2 | TFC | — |
| 0 | AMH | 01 1216A |
Properties (5)
- additional_info
- NO REVERSAL INPECTION NO ACCESS PRIVATE PROPERTY
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-08-30T04:12:54-07:00
- sewer_category
- Gravity
