Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 10:03 AM

  • 01 1214_01 1213_31082017_030342.mp4

Date
08/31/2017
W/O
630377
Weather
Dry
Operator/Surveyor
CORTEZ ESTEBAN
Sewer ID
Z00226
PipeID
P02126
Time
3:03 AM
Certificate
U-209-8148
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4910
Sewer Name
01 WILCOX AVENUE TRUNK, EXTENSION #1
City
CUDAHY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine assessment
Project
wilcox
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1213
Downstream MH
01 1214
Dir. of Survey
Upstream
Length Surveyed
204.4 ft.
Total Length
204.4 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 01 1213 to 01 1214
MH: 01 1213MH: 01 1214upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 121457.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES63.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4"66.5 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"126.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish137.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start204.4 ft. AMH - Downstream Manhole, Survey Begins - 01 1213204.4 ft. MWL - Water Level, 25 %of cross sectional area204.4 ft. MWM - Water Mark, 35 %of cross sectional area

Observation photos (2)

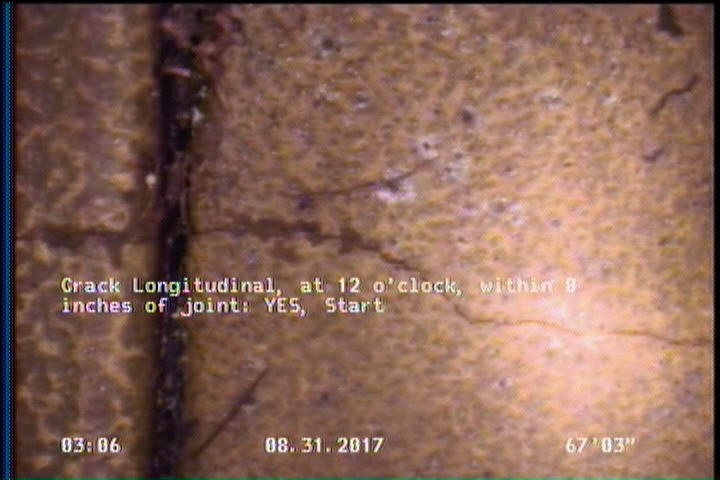

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    67.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

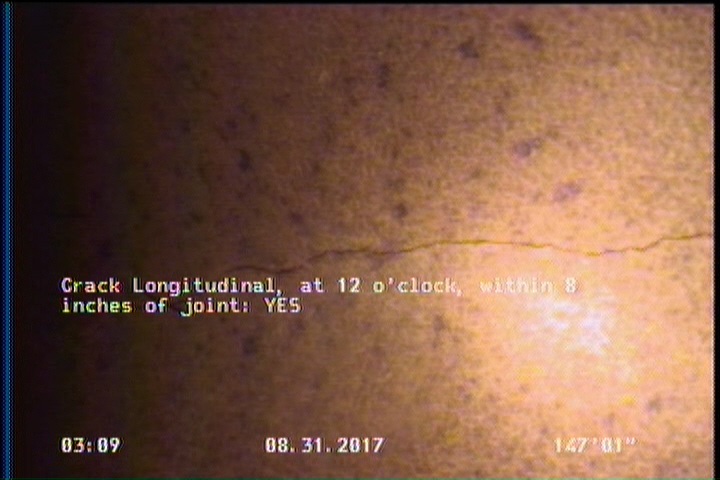

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    147 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P02126Work order 630377

Observations (9)

DistanceCodeObservation
0AMH01 1213
204.4AMH01 1214
137.9TFA—
140.7TF—
147CL—
0MWL—
77.5CL—
0MWM—
67.2CL—

Properties (5)

additional_info
SC345816
custom_field_two
4
customer
LACSD
datetime
2017-08-31T03:03:30-07:00
sewer_category
Gravity
