Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 09:22 AM

  • 01 1209_01 1208_31082017_022221.mp4

Date
08/31/2017
W/O
630377
Weather
Dry
Operator/Surveyor
CORTEZ ESTEBAN
Sewer ID
Z00226
PipeID
P02120
Time
2:22 AM
Certificate
U-209-8148
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4910
Sewer Name
01 WILCOX AVENUE TRUNK, EXTENSION #1
City
CUDAHY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine assessment
Project
wilcox
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1208
Downstream MH
01 1209
Dir. of Survey
Upstream
Length Surveyed
206.5 ft.
Total Length
206.5 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 01 1208 to 01 1209
MH: 01 1208MH: 01 1209upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 120960.5 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Finish73.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 4"74.6 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start74.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Finish78.4 ft. RFJ - Roots Fine Joint, from 12 to 05 o'clock, within 8 inches of joint: YESR78.4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start79.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 4"90.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR194.8 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 4"206.4 ft. MWM - Water Mark, 35 %of cross sectional area206.5 ft. AMH - Downstream Manhole, Survey Begins - 01 1208206.5 ft. MWL - Water Level, 25 %of cross sectional area

Observation photos (2)

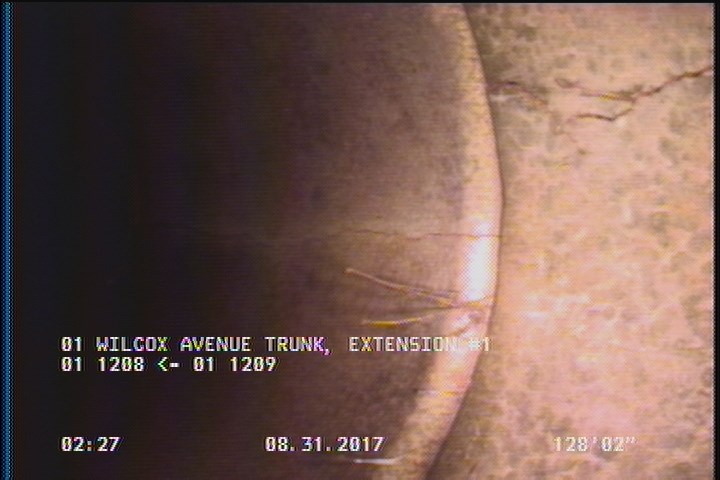

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start

    128.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start

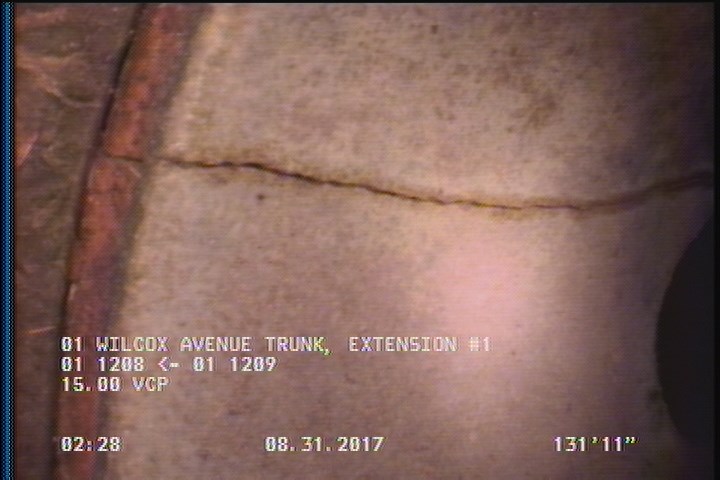

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start

    131.9 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start

All inspections of P02120Work order 630377

Observations (13)

DistanceCodeObservation
116.4RFJ—
133.1TFC—
0AMH01 1208
128.1RFJ—
146CL—
11.7TB—
131.9CL—
0MWL—
206.5AMH01 1209
127.4TFC—
131.9CL—
128.1CL—
0.1MWM—

Properties (5)

additional_info
S345816
custom_field_two
4
customer
LACSD
datetime
2017-08-31T02:22:05-07:00
sewer_category
Gravity
