Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 08:35 AM

  • 22 0267A_22 0267_24012017_003624.mp4

Date
01/24/2017
W/O
613443
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16551
Time
12:35 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4132
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_613443_TV22016_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0267A
Downstream MH
22 0267
Dir. of Survey
Downstream
Length Surveyed
303.8 ft.
Total Length
303.8 ft.
Structural Index
3
Structural Quick
3K2I
Structural Rating
280
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
281
Pipe schematic from manhole 22 0267A to 22 0267
MH: 22 0267AMH: 22 0267downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 22 0267A0 ft. MWM - Water Mark, 20 %of cross sectional area3.4 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start19 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"58.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start66.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"102.1 ft. RFJ - Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YESR119.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"158.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES163.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"215.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"239.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"263 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"287 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"303.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish303.8 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish303.8 ft. AMH - Downstream Manhole, Survey Ends - 22 0267

Observation photos (4)

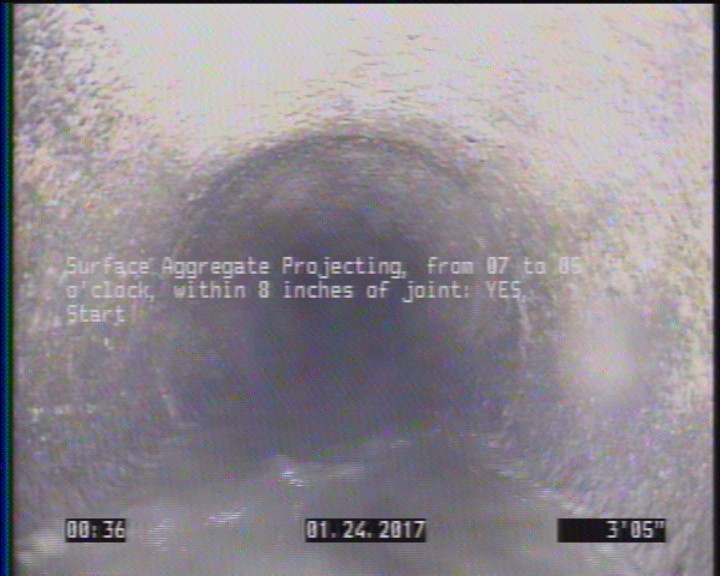

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

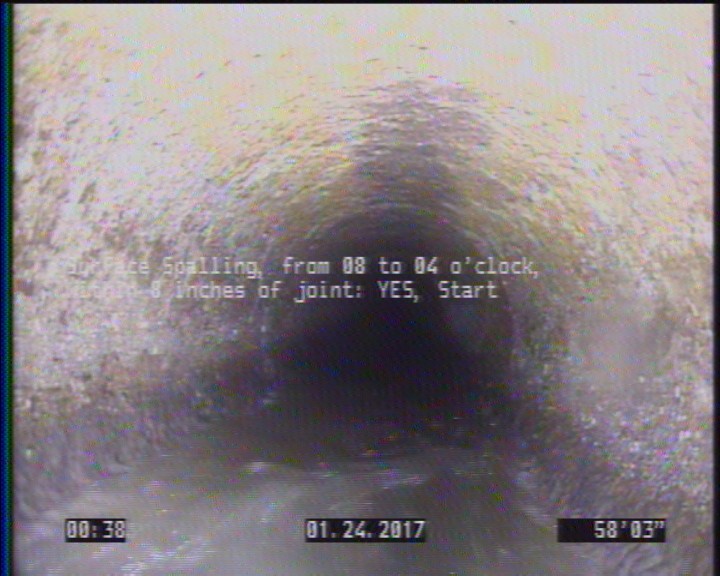

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    58.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

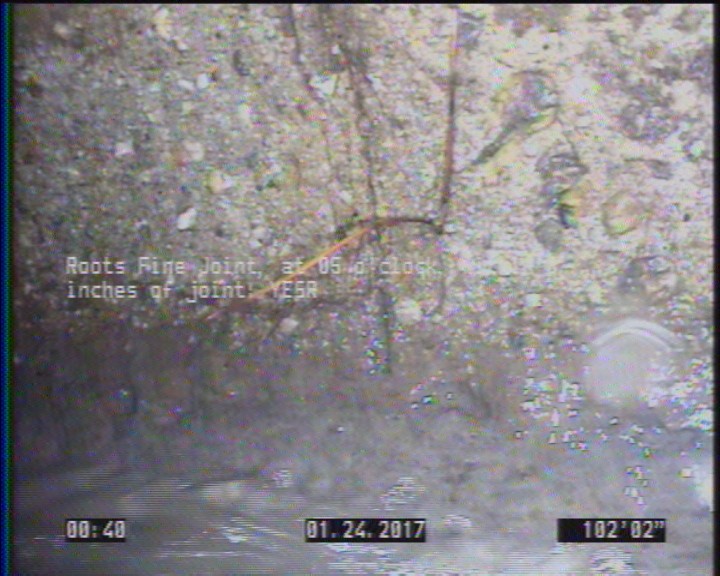

  • Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YESR

    102.1 ft. - Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YESR

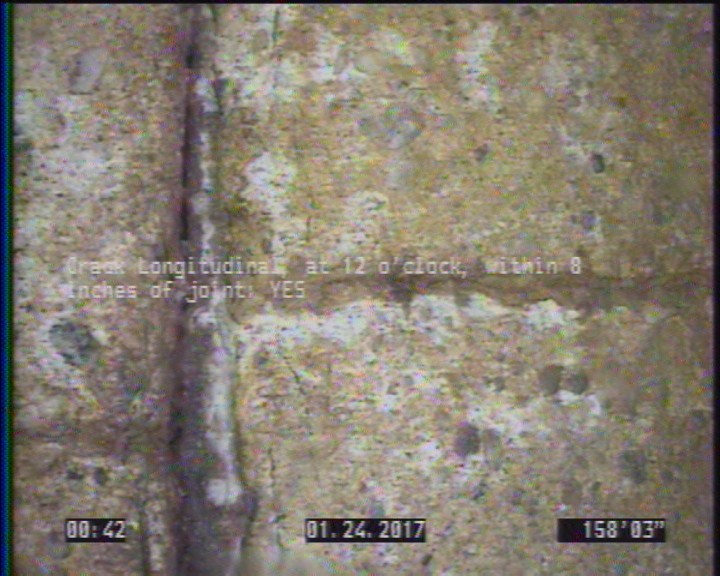

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    158.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P16551Work order 613443

Observations (22)

DistanceCodeObservation
303.8SSS—
215.6TFC—
287TFC—
303.8SAP—
119.6TFC—
139.1TFC—
0MWL—
0MGOCONNECTION AT THE MH 9 O'CLOCK
0AMH22 0267A
19TFC—
163.2TFC—
58.2SSS—
102.1RFJ—
91.7TFC—
303.8AMH22 0267
263TFC—
239.1TFC—
43.4TFC—
158.2CL—
66.9TFC—
3.4SAP—
0MWM—

Properties (5)

additional_info
SC306488
custom_field_two
3
customer
LACSD
datetime
2017-01-24T00:35:50-08:00
sewer_category
Gravity
