Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 07:06 AM
22 0271_22 0270_23012017_232651.mp4
- Date
- 01/23/2017
- W/O
- 613443
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00793
- PipeID
- P16556
- Time
- 11:06 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4132
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_613443_TV22016_JAN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0270
- Downstream MH
- 22 0271
- Dir. of Survey
- Upstream
- Length Surveyed
- 86.2 ft.
- Total Length
- 86.2 ft.
- Structural Index
- 3
- Structural Quick
- 3F21
- Structural Rating
- 104
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 109
Observation photos (4)

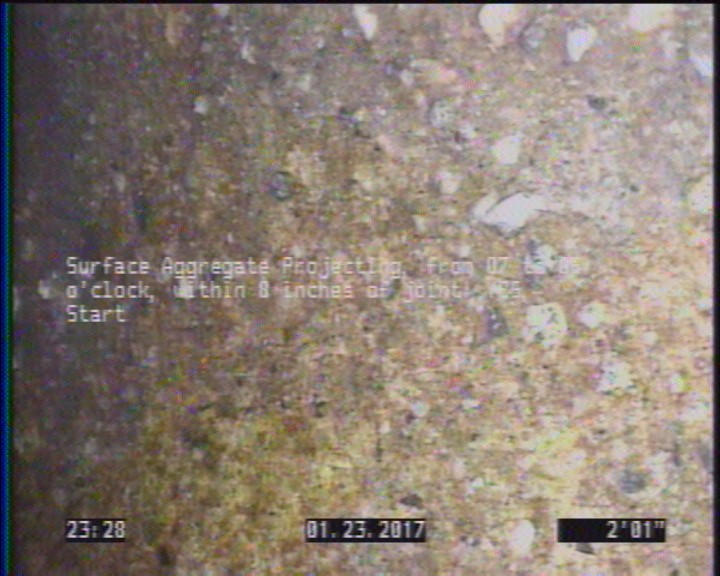

2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

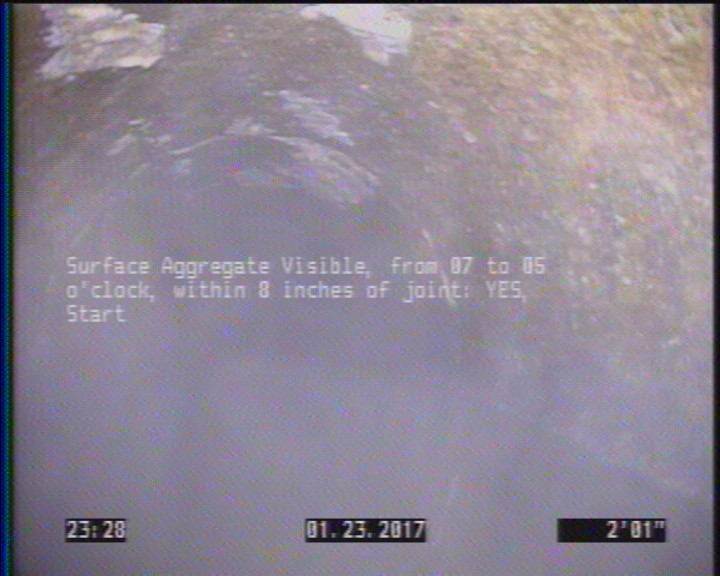

2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

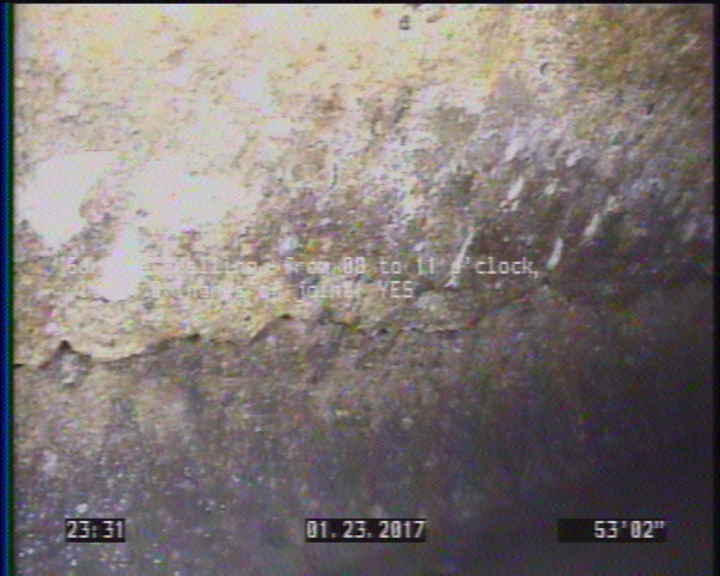

53.1 ft. - Surface Spalling, from 08 to 11 o'clock, within 8 inches of joint: YES

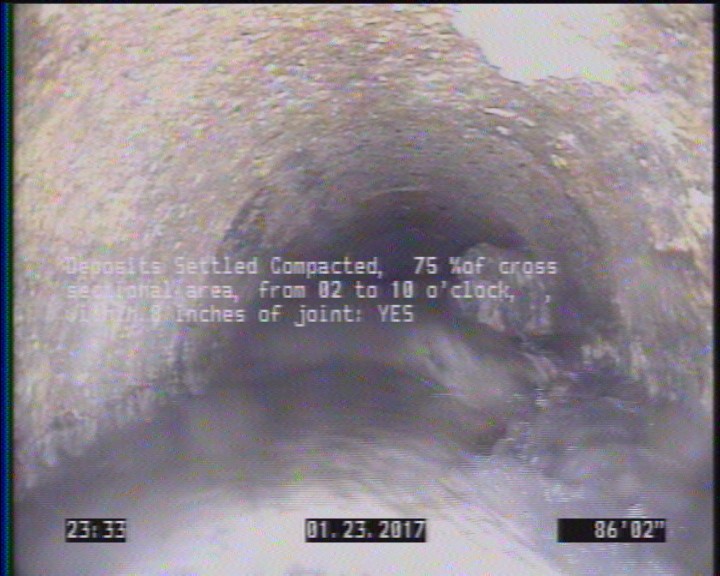

86.2 ft. - Deposits Settled Compacted, 75 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 86.2 | MSA | cam blkd by debris |
| 86.2 | SAP | — |
| 17.9 | TFC | — |
| 78.1 | TFC | — |
| 0 | MWM | — |
| 86.2 | SAV | — |
| 53.1 | SSS | — |
| 86.2 | DSC | — |
| 2 | SAP | — |
| 2 | SAV | — |
| 46.2 | TFC | — |
| 0 | MGO | — |
| 0 | AMH | 22 0270 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC306488
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-23T23:06:38-08:00
- sewer_category
- Gravity
