Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 10:20 AM
22 0264_22 0337_24012017_022052.mp4
- Date
- 01/24/2017
- W/O
- 613443
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00793
- PipeID
- P16547
- Time
- 2:20 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4132
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_613443_TV22016_JAN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0264
- Downstream MH
- 22 0337
- Dir. of Survey
- Downstream
- Length Surveyed
- 49.1 ft.
- Total Length
- 49.1 ft.
- Structural Index
- 3
- Structural Quick
- 3900
- Structural Rating
- 27
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 28
Observation photos (2)

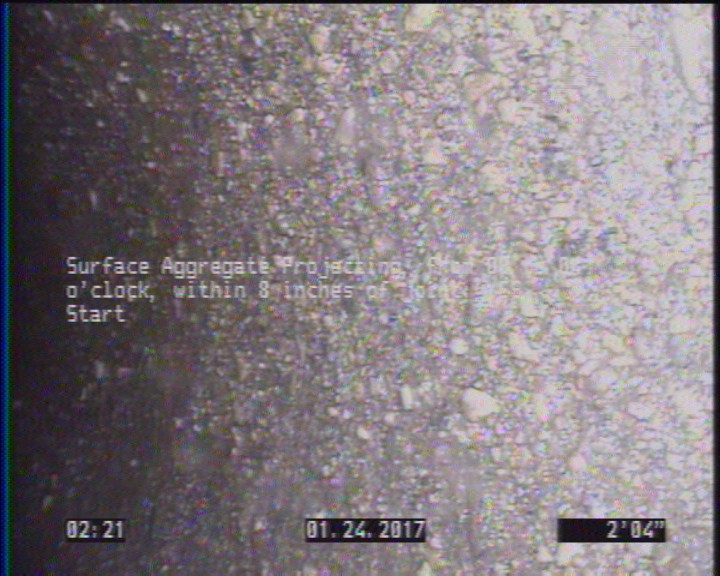

2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

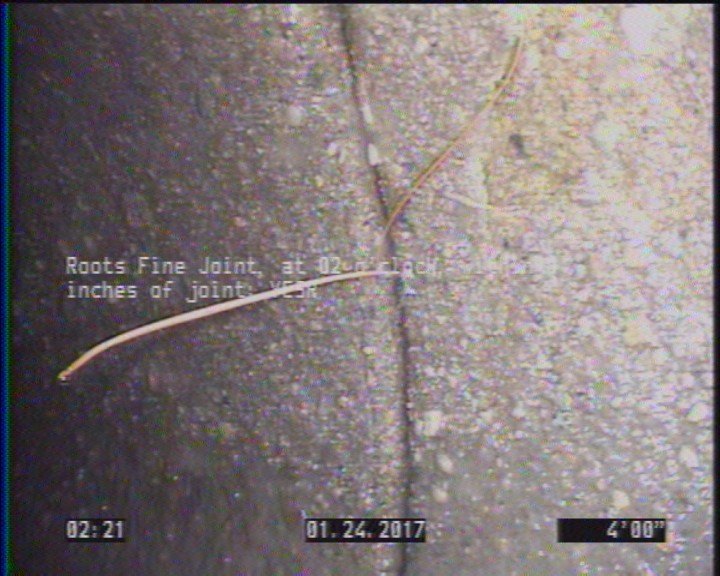

4 ft. - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 49.1 | AMH | 22 0337 |
| 2.2 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | 22 0264 |
| 4 | RFJ | — |
| 49.1 | SAP | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC306488
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-24T02:20:21-08:00
- sewer_category
- Gravity
