Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 07:38 AM

  • 22 0270_22 0269_23012017_233906.mp4

Date
01/23/2017
W/O
613443
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16555
Time
11:38 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4132
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_613443_TV22016_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0270
Downstream MH
22 0269
Dir. of Survey
Downstream
Length Surveyed
168.8 ft.
Total Length
168.8 ft.
Structural Index
3
Structural Quick
3M21
Structural Rating
206
O&M Index
3
O&M Quick
3A00
O&M Rating
36
Overall Index
3
Overall Quick
—
Overall Rating
242
Pipe schematic from manhole 22 0270 to 22 0269
MH: 22 0270MH: 22 0269downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02700 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start27.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"44.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"54.6 ft. CM - Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES87.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"90.8 ft. CM - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES107 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start113.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"135.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"151 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES156.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"168.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish168.8 ft. AMH - Downstream Manhole, Survey Ends - 22 0269168.8 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish168.8 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish

Observation photos (6)

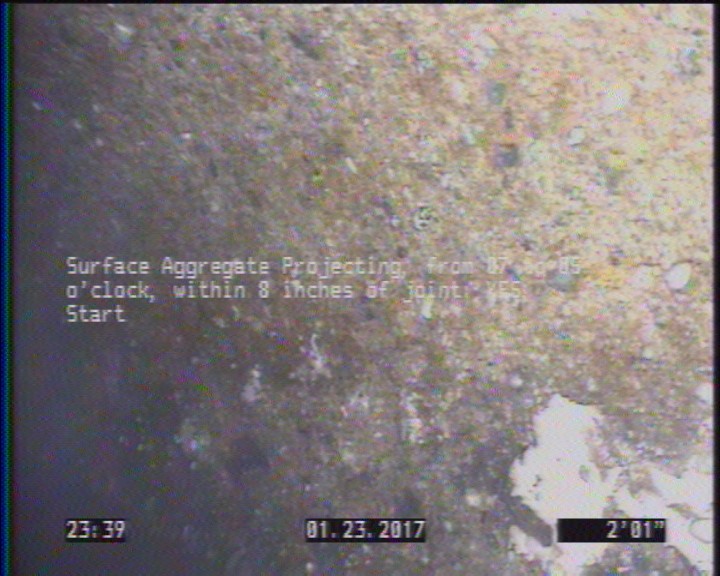

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

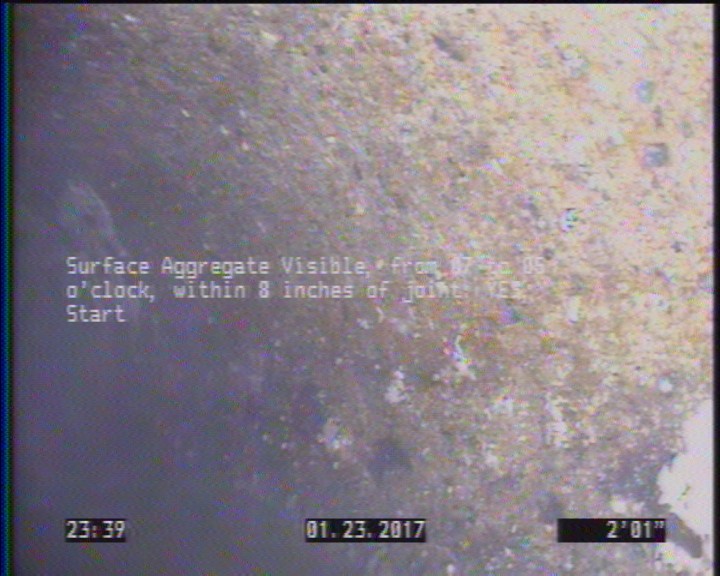

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

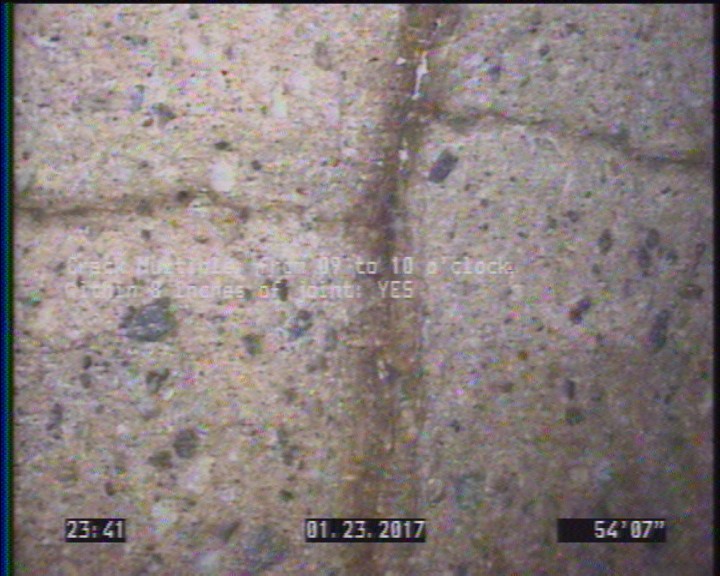

  • Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES

    54.6 ft. - Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES

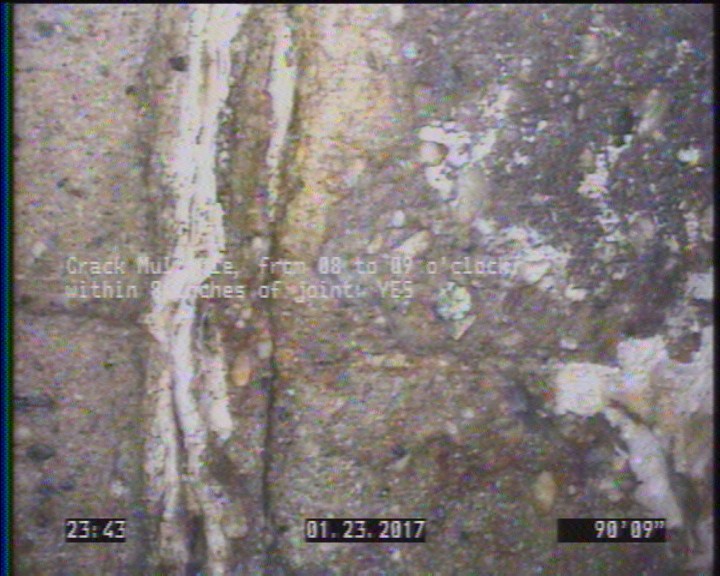

  • Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

    90.8 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

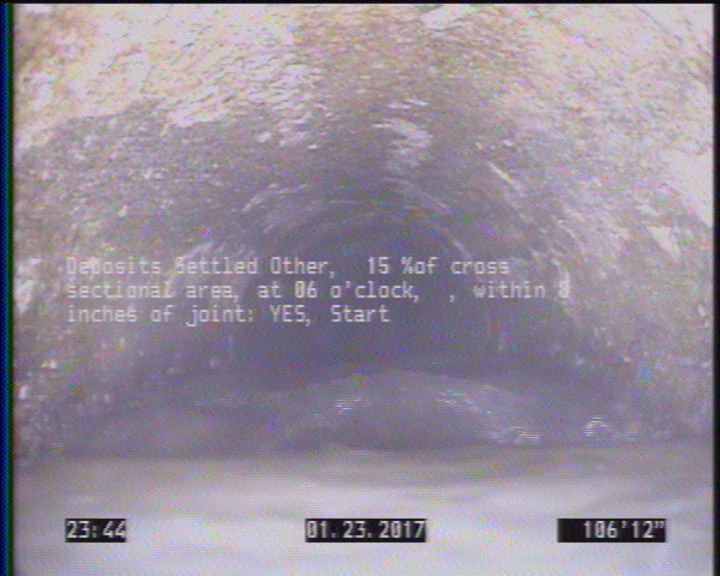

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    107 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

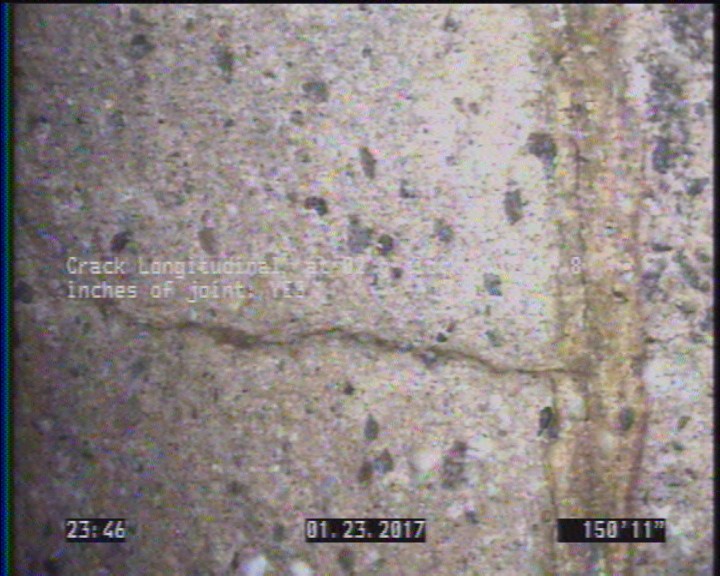

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    151 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P16555Work order 613443

Observations (19)

DistanceCodeObservation
54.6CM—
168.8DSZ—
90.8CM—
0AMH22 0270
156.1TFC—
0MWM—
135.8TFC—
168.8AMH22 0269
151CL—
2.1SAP—
168.8SAV—
2.1SAV—
44.1TFC—
107DSZ—
113.5TFC—
168.8SAP—
0MWL—
27.8TFC—
87.9TFC—

Properties (5)

additional_info
SC306488
custom_field_two
3
customer
LACSD
datetime
2017-01-23T23:38:08-08:00
sewer_category
Gravity
