Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 1, 2017, 05:51 AM

  • 19 0274_19 0273 _31082017_231819.mp4

Date
08/31/2017
W/O
651801
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00732
PipeID
P15244
Time
10:51 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4704
Sewer Name
19 209TH STREET TRUNK
City
LAKEWOOD
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Routine Assessment
Project
WO_651801_TV19001_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
19 0274
Downstream MH
19 0273
Dir. of Survey
Downstream
Length Surveyed
359.2 ft.
Total Length
359.2 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 19 0274 to 19 0273
MH: 19 0274MH: 19 0273downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 19 02743.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start12.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start28.9 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"31.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"71.7 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"80.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"83.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"128.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"132 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"178 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"181 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"203.6 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"228 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"229.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"232.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"281 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"284.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"330 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"332.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"359 ft. MGO - General Observation - CONNECTION AT 9 OC359.2 ft. AMH - Downstream Manhole, Survey Ends - 19 0273359.2 ft. MGO - General Observation - CONNECTION AT 3 OC359.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish359.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish359.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

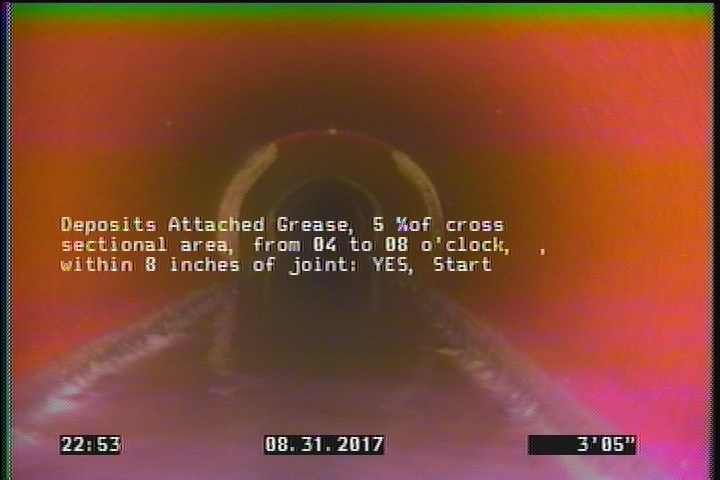

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

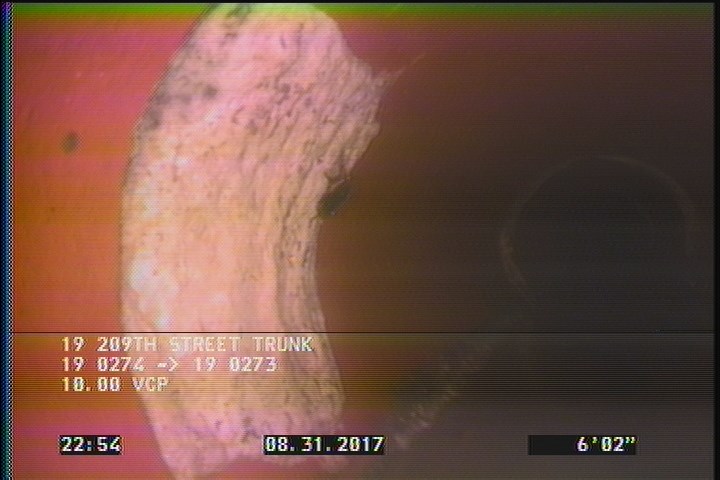

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    6.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

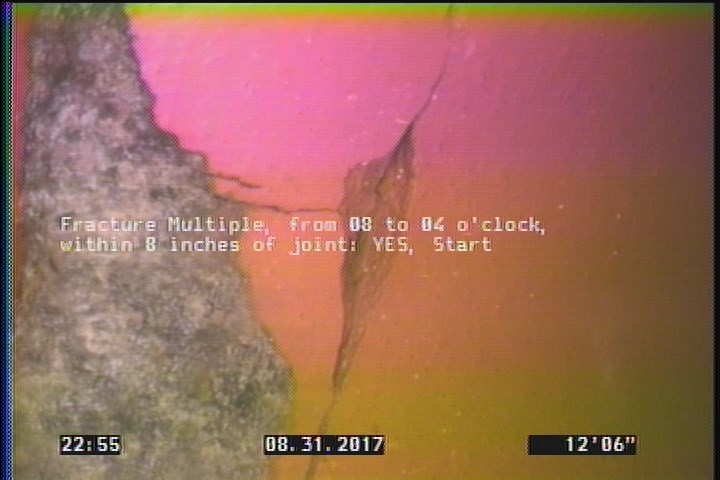

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    12.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P15244Work order 651801

Observations (29)

DistanceCodeObservation
359.2AMH19 0273
359.2MGOCONNECTION AT 3 OC
281TFC—
83.7TFC—
0MWM—
359.2DAE—
128.8TF—
28.9TFA—
6.2DAE—
203.6TBA—
359MGOCONNECTION AT 9 OC
330TFC—
80.3TFC—
359.2DAGS—
132TF—
0MWL—
359.2FM—
178TFC—
284.1TFC—
71.7TB—
12.5FM—
3.4DAGS—
31.6TF—
229.6TF—
181TFC—
332.9TFC—
232.5TFC—
0AMH19 0274
228TB—

Properties (4)

additional_info
SC345645
custom_field_two
3
customer
LACSD
datetime
2017-08-31T22:51:01-07:00
