Wastewater/Activity/PacpInspection/1.0Sep 1, 2017, 06:19 AM
19 0273_19 0272 _31082017_233202.mp4
- Date
- 08/31/2017
- W/O
- 651801
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00732
- PipeID
- P15243
- Time
- 11:19 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4704
- Sewer Name
- 19 209TH STREET TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_651801_TV19001_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 19 0273
- Downstream MH
- 19 0272
- Dir. of Survey
- Downstream
- Length Surveyed
- 83.2 ft.
- Total Length
- 83.2 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

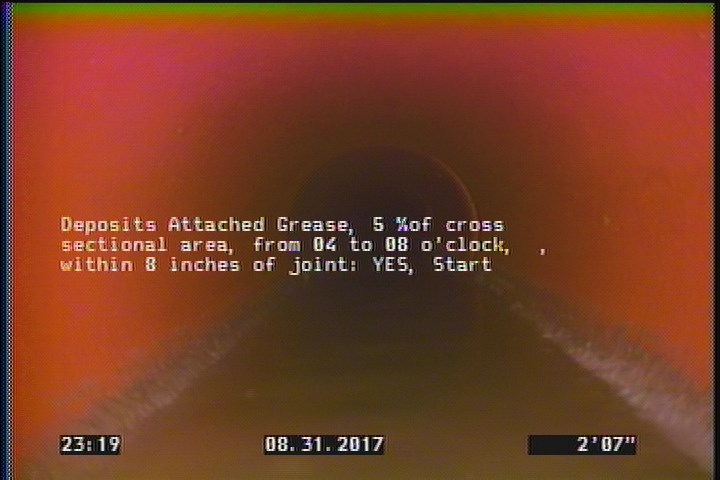

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

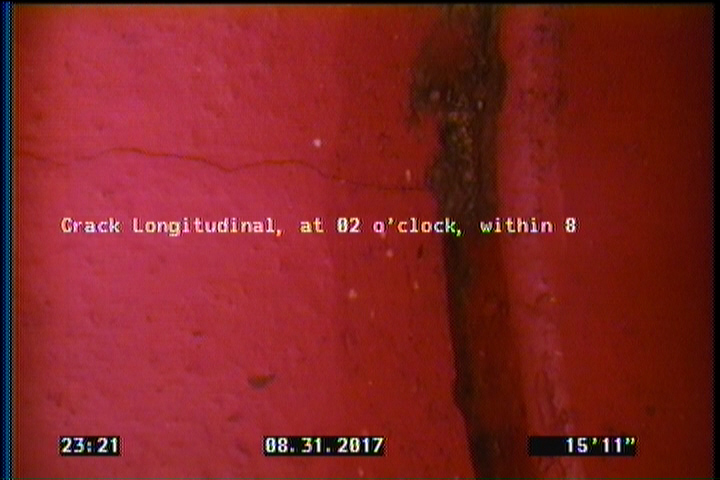

15.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

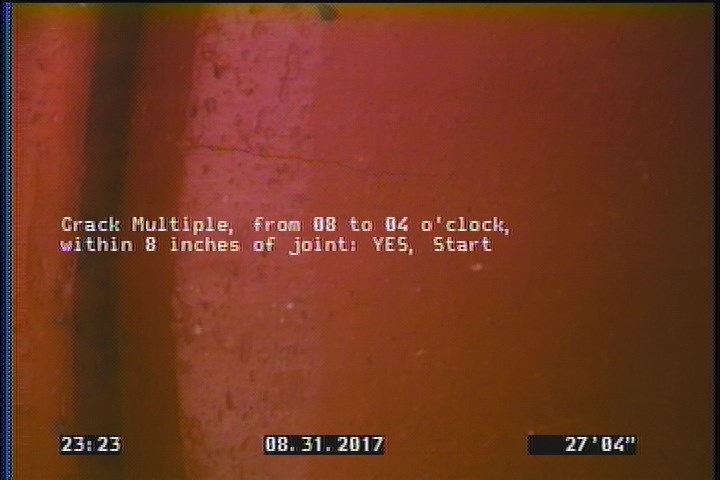

27.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

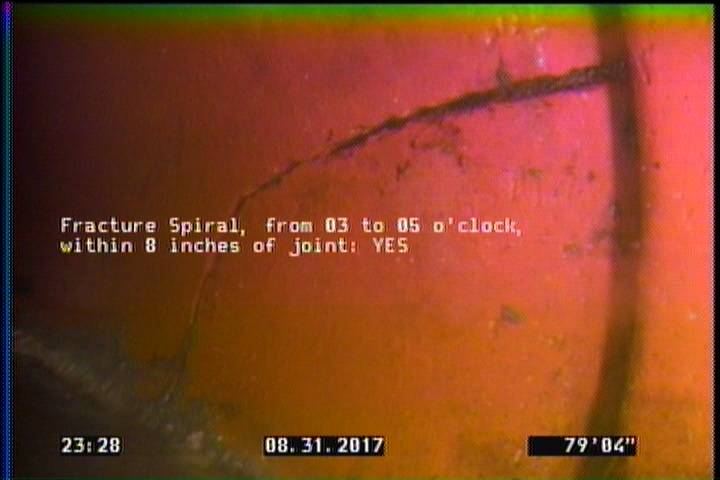

79.3 ft. - Fracture Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 25.4 | TFC | — |
| 79.3 | FS | — |
| 83.2 | CM | — |
| 0 | AMH | 19 0273 |
| 83.2 | DSC | — |
| 83.2 | AMH | 19 0272 |
| 15.9 | CL | — |
| 74.4 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 27.4 | CM | — |
| 71.2 | TFC | — |
| 22.2 | TF | — |
| 51.7 | DSC | — |
| 2.6 | DAGS | — |
| 83.2 | DAGS | — |
Properties (4)
- additional_info
- SC345645
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-31T23:19:20-07:00
