Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2017, 11:50 PM
Date
07/26/2017
W/O
651582
Weather
Dry
Operator/Surveyor
COREY D
Sewer ID
Z00707
PipeID
P14686
Time
4:50 PM
Certificate
U-912-159863
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4783
Sewer Name
18 SO WHITTIER OUTFALL TR, SECT 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
WO_651582_TV18113_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0823
Downstream MH
18 0822
Dir. of Survey
Downstream
Length Surveyed
318.7 ft.
Total Length
318.7 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
186
O&M Index
2
O&M Quick
2L00
O&M Rating
126
Overall Index
3
Overall Quick
—
Overall Rating
312
Pipe schematic from manhole 18 0823 to 18 0822
MH: 18 0823MH: 18 0822downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 08230 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6 ft. CM - Crack Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES, Start19.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"61 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"68 ft. TBC - Tap Break-In Capped, at 08 o'clock, -, within 8 inches of joint: YES, 4"116.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"167.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"180 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"219.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"240 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"267 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"298.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"314.1 ft. CM - Crack Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES, Finish314.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish318.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0822

Observation photos (2)

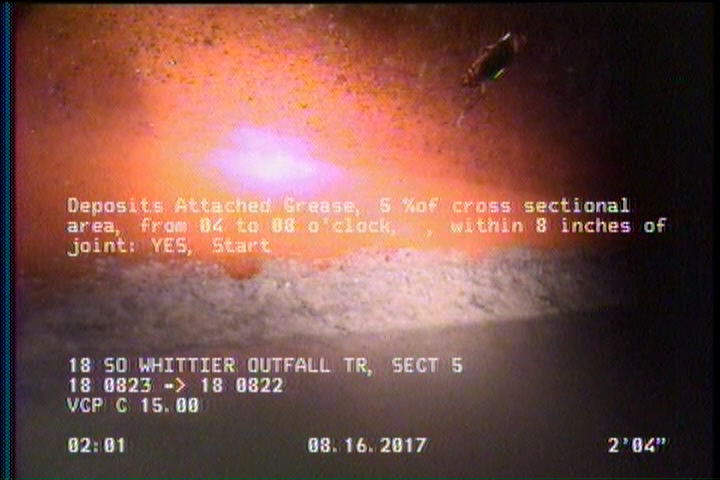

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

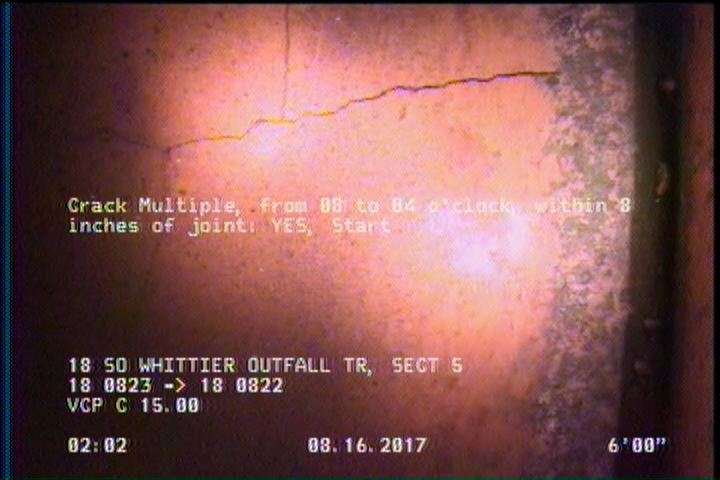

  • Crack Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Crack Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14686Work order 651582

Observations (18)

DistanceCodeObservation
0MWM—
2DAGS—
167.1TB—
116.1TB—
267TB—
61TB—
298.1TB—
314.1CM—
219.1TB—
0AMH18 0823
68TBC—
0MWL—
314.1DAGS—
180TB—
19.1TB—
240TB—
6CM—
318.7AMH18 0822

Properties (4)

additional_info
SC344613
custom_field_two
3
customer
LACSD
datetime
2017-07-26T16:50:42-07:00
