Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 05:12 PM
22 1026_22 1025_1062017_101751.mp4
22 1026_22 1025_1062017_103643.mp4
- Date
- 10/06/2017
- W/O
- 0596837
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00819
- PipeID
- P17395
- Time
- 10:12 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7530
- Sewer Name
- 22 LORAINE TRUNK
- City
- GLENDORA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20171006SHO_LORAINE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 1025
- Downstream MH
- 22 1026
- Dir. of Survey
- Upstream
- Length Surveyed
- 344.5 ft.
- Total Length
- 344.5 ft.
- Structural Index
- 2
- Structural Quick
- 3112
- Structural Rating
- 5
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

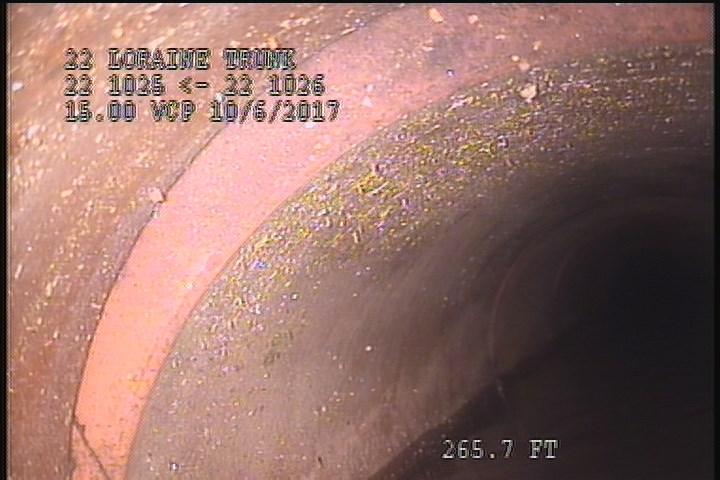

265.7 ft. - Joint Offset Medium

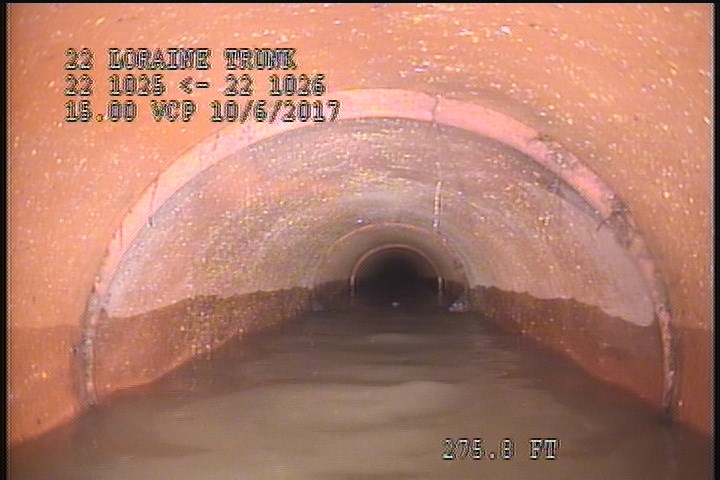

275.8 ft. - Joint Offset Medium

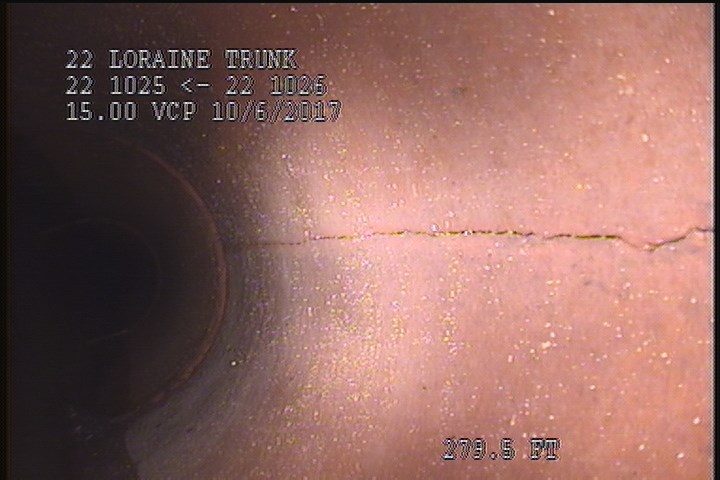

279.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - JOINT TO JOINT

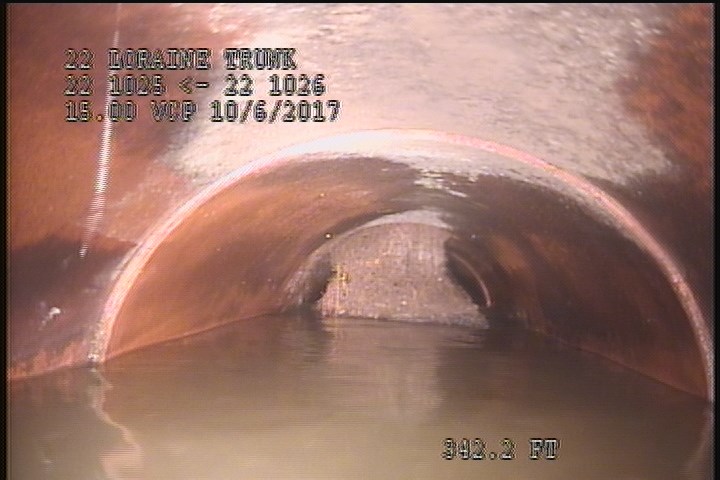

344.5 ft. - Roots Ball Barrell, from 08 to 08 o'clock, 70 %, within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 265.7 | JOM | — |
| 275.8 | JOM | — |
| 344.5 | MSA | 1050 |
| 279.5 | FL | JOINT TO JOINT |
| 0 | MWL | — |
| 0 | AMH | 1020 |
| 0 | MWM | — |
| 344.5 | RBB | — |
Properties (4)
- custom_field_three
- COULD NOT FINISH DUE TO 70% ROOT MASS
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-06T10:12:05-07:00
