Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 08:42 AM

  • J 0148_J 0147 _05092017_224826.mp4

Date
09/06/2017
W/O
651864
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00052
PipeID
P11382
Time
1:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4858
Sewer Name
J JOINT OUTFALL J - UNIT 1A
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
40
Purpose
Routine Assessment
Project
WO_651864_TV05159_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
J 0147
Downstream MH
J 0148
Dir. of Survey
Upstream
Length Surveyed
83.3 ft.
Total Length
83.3 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole J 0147 to J 0148
MH: J 0147MH: J 0148upstream0 ft. AMH - Upstream Manhole, Survey Ends - J 01488 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES13 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES27.2 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES55.2 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES71.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES83.3 ft. MWM - Water Mark, 25 %of cross sectional area83.3 ft. MWL - Water Level, 5 %of cross sectional area83.3 ft. AMH - Downstream Manhole, Survey Begins - J 0147

Observation photos (5)

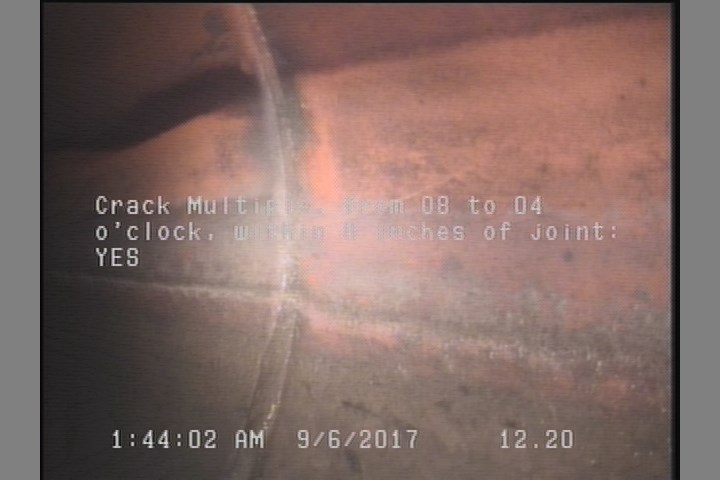

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    12.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

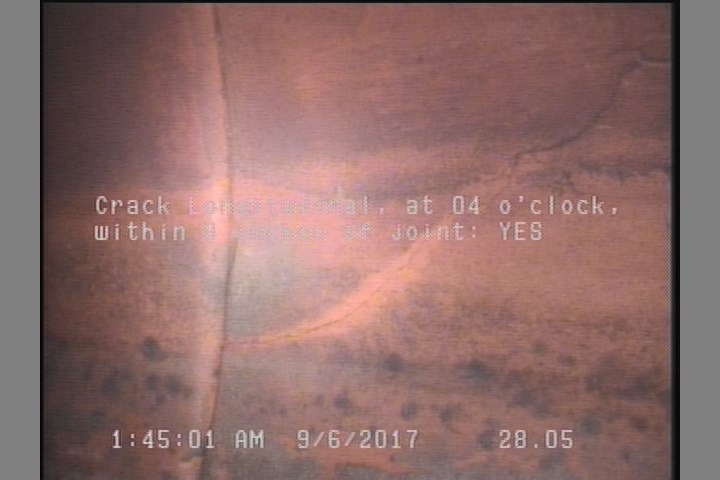

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    28.1 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

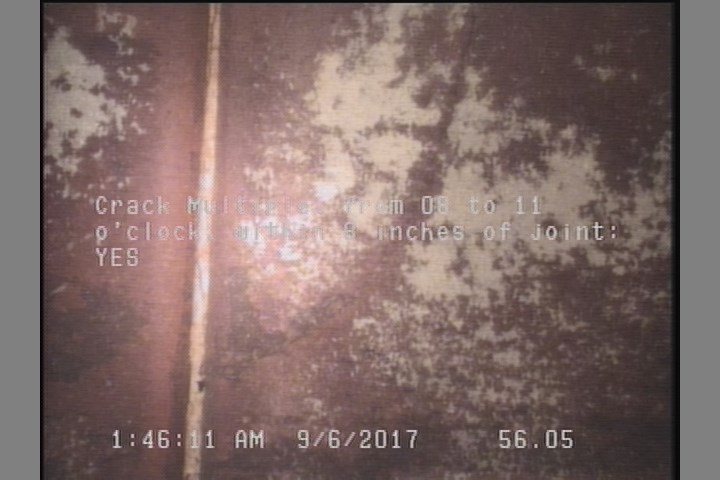

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    56.1 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

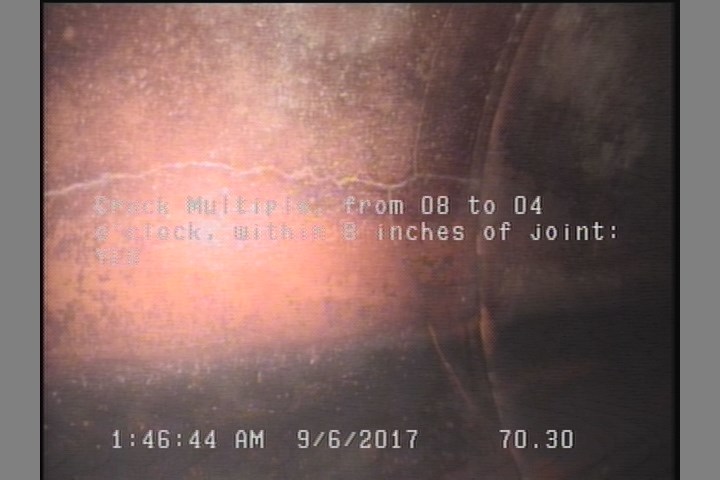

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    70.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

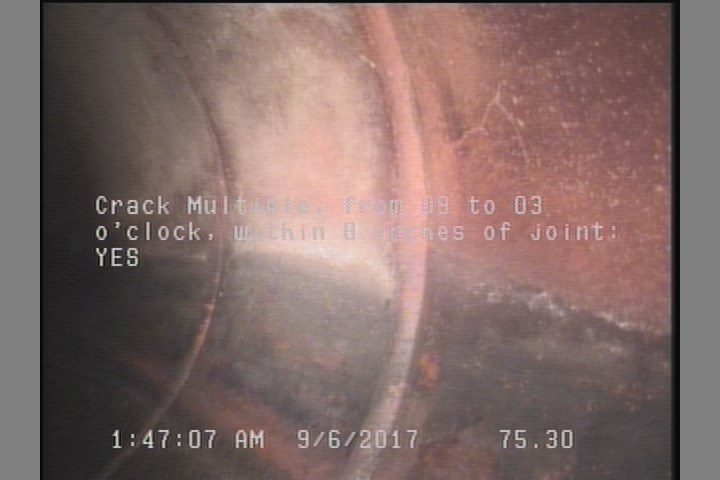

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    75.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P11382Work order 651864

Observations (9)

DistanceCodeObservation
70.3CM—
56.1CM—
0MWM—
83.3AMHJ 0148
28.1CL—
0MWL—
12.2CM—
75.3CM—
0AMHJ 0147

Properties (5)

additional_info
SC345917
custom_field_two
3
customer
LACSD
datetime
2017-09-06T01:42:14-07:00
sewer_category
Gravity
