Wastewater/Activity/PacpInspection/1.0Sep 7, 2017, 10:00 AM
J 0023_J 0463_07092017_030134.mp4
- Date
- 09/07/2017
- W/O
- 651864
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00052
- PipeID
- P22775
- Time
- 3:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4861
- Sewer Name
- J JOINT OUTFALL J - UNIT 1A
- City
- LOMITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_651864_TV05159_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- J 0023
- Downstream MH
- J 0463
- Dir. of Survey
- Downstream
- Length Surveyed
- 18.9 ft.
- Total Length
- 18.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (3)

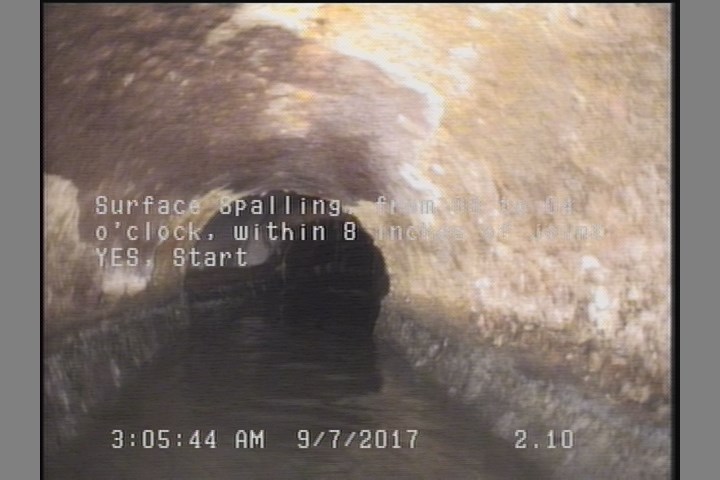

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

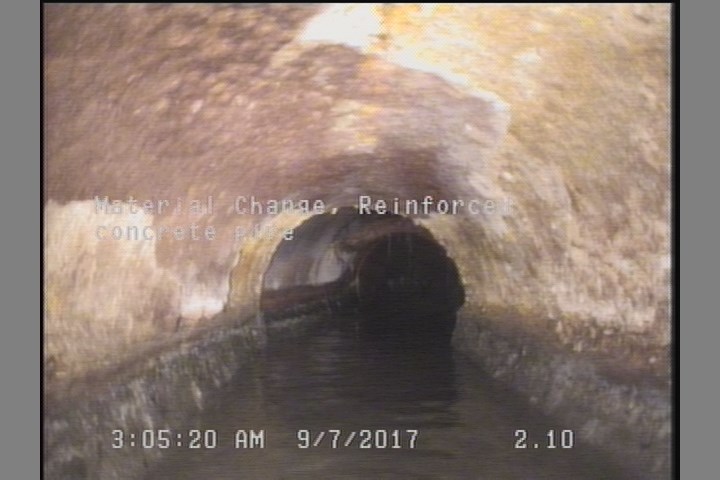

2.1 ft. - Material Change, Reinforced concrete pipe

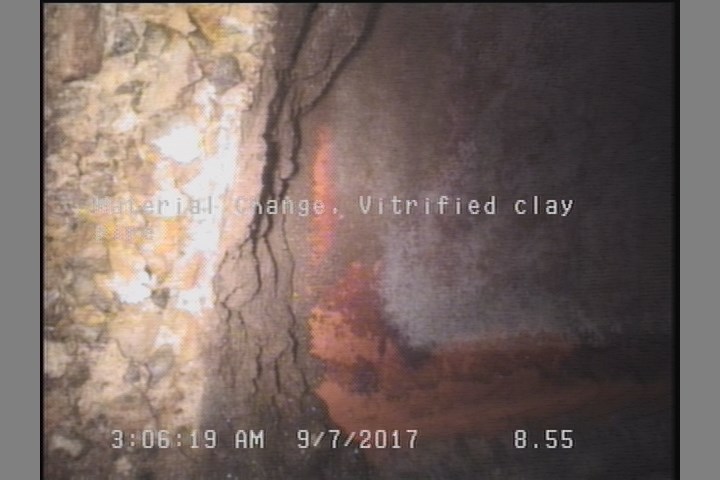

8.6 ft. - Material Change, Vitrified clay pipe
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 7 O'CLOCK |
| 2.1 | SSS | — |
| 0 | MGO | CONNECTION AT MH 5 O'CLOCK |
| 2.1 | MMC | — |
| 8.6 | SSS | — |
| 0 | MWL | — |
| 8.6 | MMC | — |
| 18.9 | AMH | J 0463 |
| 0 | AMH | J 0023 |
| 0 | MWM | — |
| 18.9 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC345920
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-07T03:00:13-07:00
- sewer_category
- Gravity
