Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 05:59 AM

  • 20 0430_20 0429 _19062017_225958.mp4

Date
06/19/2017
W/O
640624
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19378
Time
10:59 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4585
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_640624_TV20001_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
20 0430
Downstream MH
20 0429
Dir. of Survey
Downstream
Length Surveyed
355.1 ft.
Total Length
355.1 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2M00
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
146
Pipe schematic from manhole 20 0430 to 20 0429
MH: 20 0430MH: 20 0429downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 20 04300 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start23.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"136.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"157 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES160.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES210.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"259 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"261.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"353.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE353.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish354 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH355.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK355.1 ft. AMH - Downstream Manhole, Survey Ends - 20 0429

Observation photos (3)

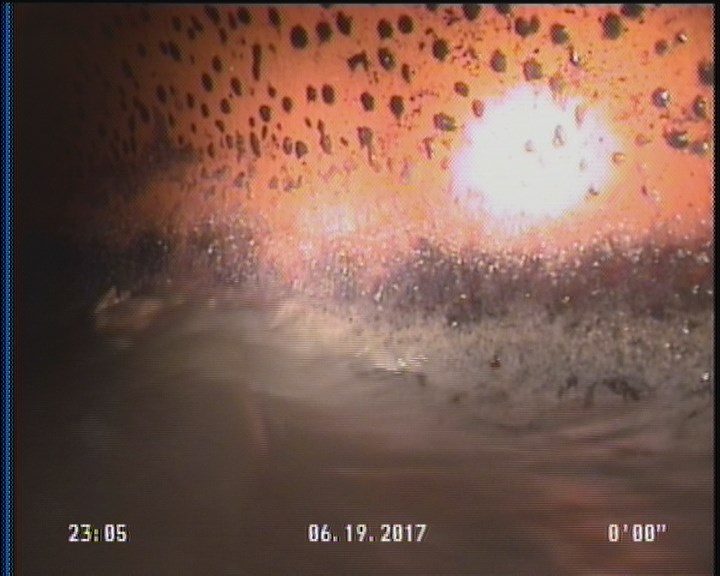

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

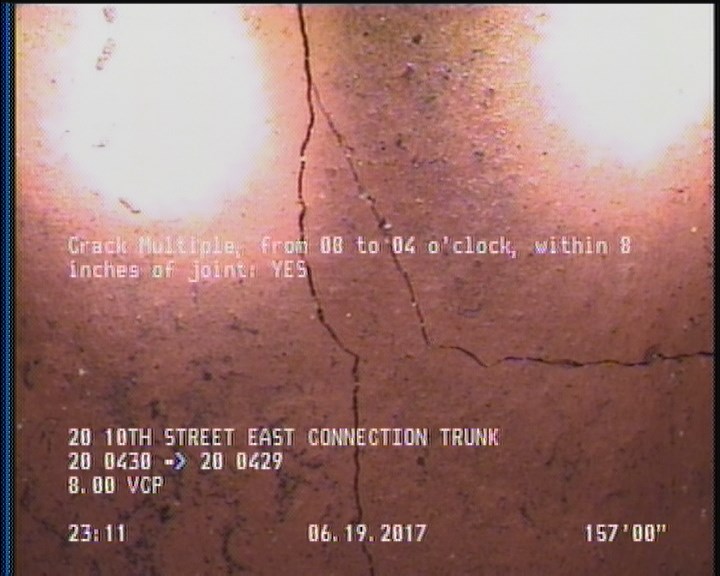

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    157 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

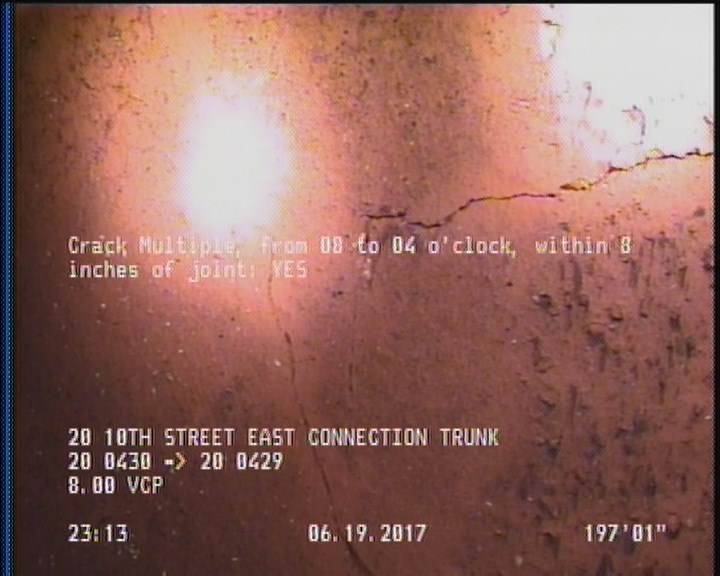

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    197.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19378Work order 640624

Observations (20)

DistanceCodeObservation
353.4MGOCOCKROACHES IN MANHOLE
0MWM—
91.1TF—
210.5TF—
354MGOSPALLING THROUGHOUT THE REACH
0MWL—
160.9TFC—
23.9TFC—
259TFC—
136.7TF—
0AMH20 0430
157CM—
197.1CM—
355.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAGS—
353.4DAGS—
0MGOCOCKROACHES IN MANHOLE
355.1AMH20 0429
261.9TFC—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (5)

additional_info
SC345411
custom_field_two
3
customer
LACSD
datetime
2017-06-19T22:59:43-07:00
sewer_category
Gravity
