Wastewater/Activity/PacpInspection/1.0Jun 19, 2017, 11:17 AM
20 0431_20 0430 _19062017_041811.mp4
- Date
- 06/19/2017
- W/O
- 640624
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00749
- PipeID
- P19379
- Time
- 4:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4584
- Sewer Name
- 20 10TH STREET EAST CONNECTION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_640624_TV20001_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 20 0431
- Downstream MH
- 20 0430
- Dir. of Survey
- Downstream
- Length Surveyed
- 234.8 ft.
- Total Length
- 234.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

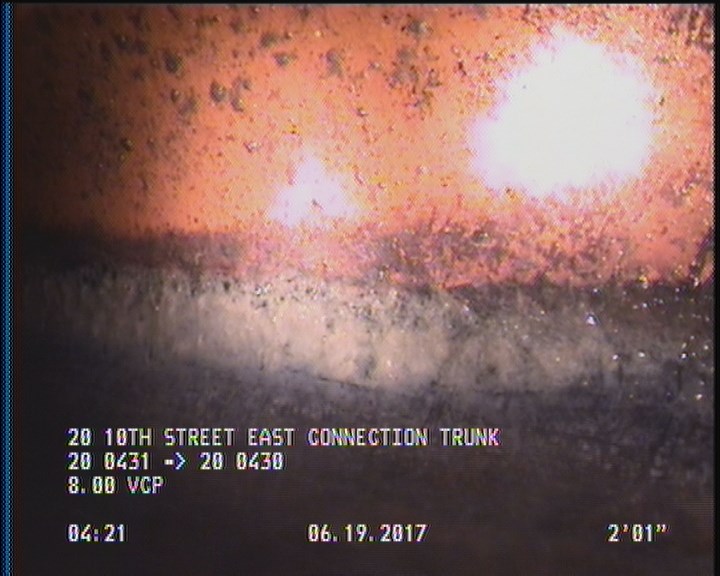

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

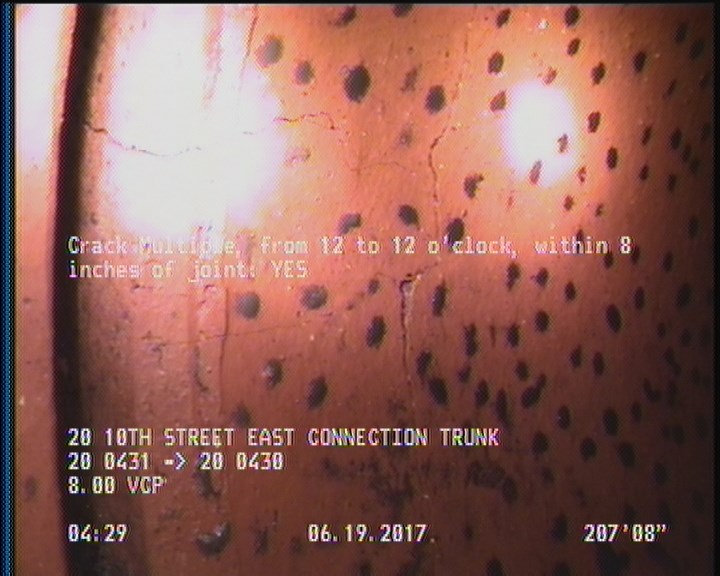

207.6 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 233 | MGO | SPALLING THROUGHOUT THE REACH |
| 44.8 | TF | — |
| 232.6 | DAGS | — |
| 207.6 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 234.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 159.7 | TFA | — |
| 234.8 | MGO | COCKROACHES IN MANHOLE |
| 56.6 | TFC | — |
| 234.8 | AMH | 20 0430 |
| 132.7 | TF | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 20 0431 |
| 99.3 | TF | — |
| 17.3 | TF | — |
Properties (5)
- additional_info
- SC345410
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-19T04:17:52-07:00
- sewer_category
- Gravity
