Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 10:39 AM

  • 05 1391_05 1390 _30082017_034008.mp4

Date
08/30/2017
W/O
652020
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00487
PipeID
P06611
Time
3:39 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4803
Sewer Name
05 MONETA TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
WO_652020_TV05074_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1391
Downstream MH
05 1390
Dir. of Survey
Downstream
Length Surveyed
391.9 ft.
Total Length
391.9 ft.
Structural Index
4
Structural Quick
4L3A
Structural Rating
297
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
4
Overall Quick
—
Overall Rating
299
Pipe schematic from manhole 05 1391 to 05 1390
MH: 05 1391MH: 05 1390downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK, GREASE BLOCKING CONN.0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 05 13910 ft. MWL - Water Level, 5 %of cross sectional area4.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"57.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start57.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish89 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6", 6" - BROKEN134.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"241.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"290 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"339.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"385.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish390 ft. MGO - General Observation - POSSIBLE BROKEN PIPE THROUGHOUT391.9 ft. AMH - Downstream Manhole, Survey Ends - 05 1390391.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

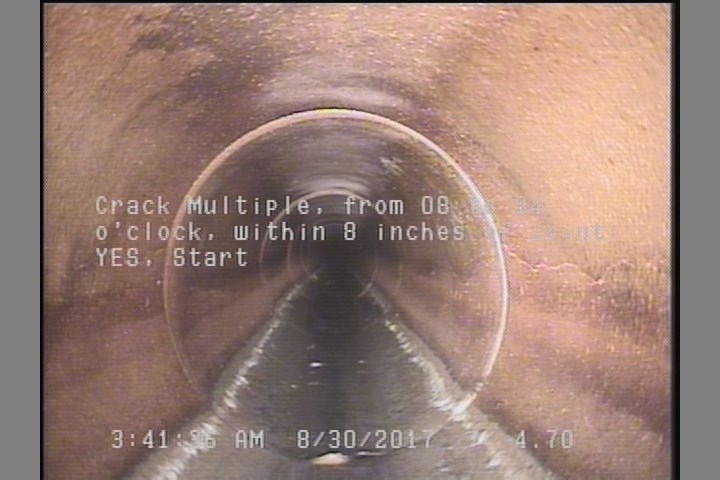

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    57.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06611Work order 652020

Observations (19)

DistanceCodeObservation
390MGOPOSSIBLE BROKEN PIPE THROUGHOUT
89TFDBROKEN
0MWM—
38.3TFC—
134.9TFC—
241.4TFC—
57.8FM—
0MGOCONNECTION AT MH 3 O'CLOCK, GREASE BLOCKING CONN.
0MGOCONNECTION AT MH 9 O'CLOCK
0AMH05 1391
339.9TFC—
0MWL—
290TFC—
385.8FM—
391.9AMH05 1390
4.7CM—
57.8CM—
186.4TF—
391.9MGOCONNECTION AT MH 9 O'CLOCK

Properties (5)

additional_info
SC345912
custom_field_two
2
customer
LACSD
datetime
2017-08-30T03:39:43-07:00
sewer_category
Gravity
