Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 04:49 AM
05 1388_05 1387 _30082017_214923.mp4
- Date
- 08/30/2017
- W/O
- 652020
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00487
- PipeID
- P06608
- Time
- 9:49 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4804
- Sewer Name
- 05 MONETA TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_652020_TV05074_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 1388
- Downstream MH
- 05 1387
- Dir. of Survey
- Downstream
- Length Surveyed
- 338.1 ft.
- Total Length
- 338.1 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 201
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 207
Observation photos (2)

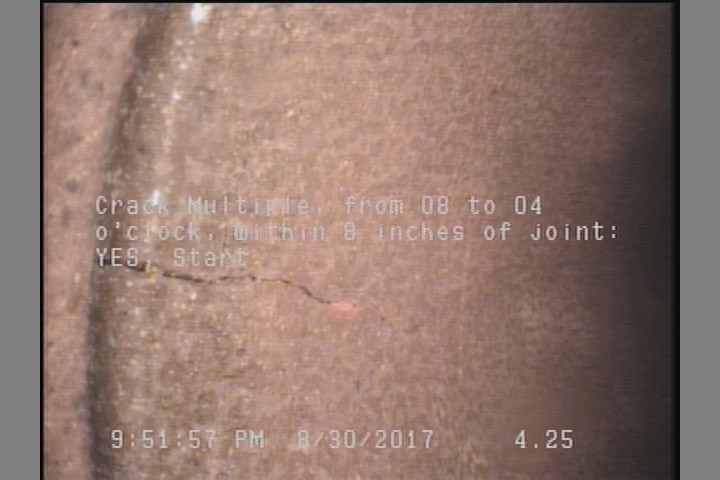

4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

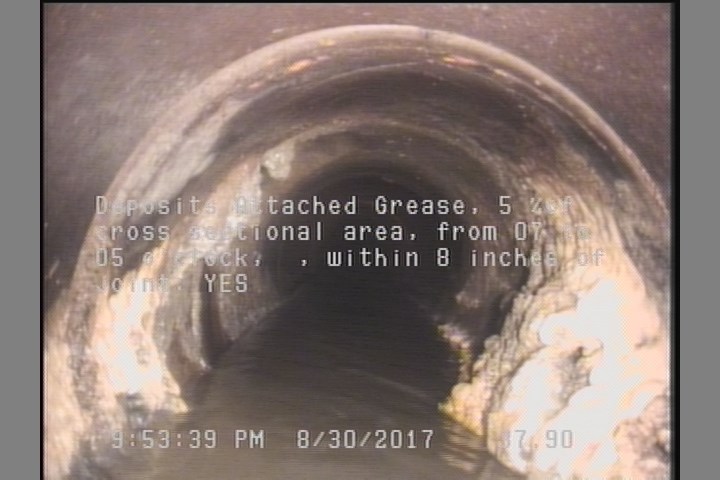

37.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 37.9 | DAGS | — |
| 78.1 | RBL | INSIDE THE LATERAL |
| 39.9 | TFA | — |
| 0 | MWL | — |
| 4.3 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 338.1 | CM | — |
| 194.7 | TF | — |
| 159.1 | TFC | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 338.1 | AMH | 05 1387 |
| 245.6 | TF | — |
| 296.7 | TF | — |
| 78.1 | TF | — |
| 0 | AMH | 05 1388 |
| 14.5 | TF | 15% BLOCKED |
Properties (5)
- additional_info
- SC345913
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-30T21:49:08-07:00
- sewer_category
- Gravity
