Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 09:25 AM

  • 05 1374_05 1373 _31082017_022556.mp4

Date
08/31/2017
W/O
652020
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00487
PipeID
P06593
Time
2:25 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4804
Sewer Name
05 MONETA TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
WO_652020_TV05074_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1374
Downstream MH
05 1373
Dir. of Survey
Downstream
Length Surveyed
332 ft.
Total Length
332.1 ft.
Structural Index
3
Structural Quick
4A3B
Structural Rating
98
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
101
Pipe schematic from manhole 05 1374 to 05 1373
MH: 05 1374MH: 05 1373downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 13740 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"71.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start71.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish96.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.6 ft. RML - Roots Medium Lateral, at 10 o'clock, 30 %, within 8 inches of joint: NO133.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish133.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start171 ft. CL - Crack Longitudinal, at 06 o'clock, within 8 inches of joint: YES201.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"262.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"314.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"332.1 ft. AMH - Downstream Manhole, Survey Ends - 05 1373332.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

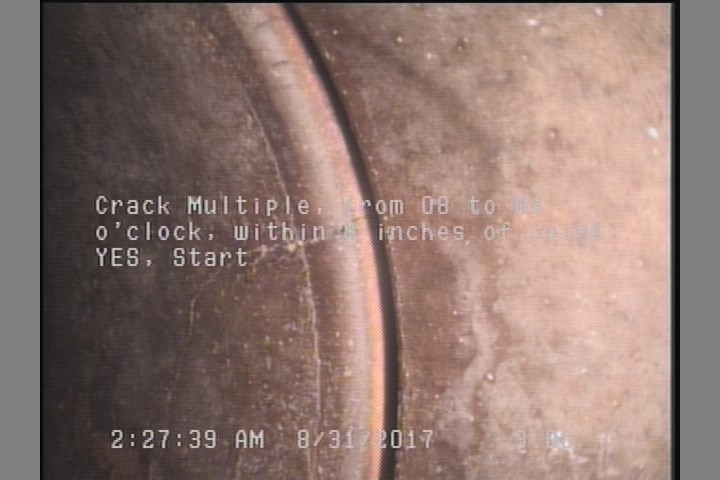

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

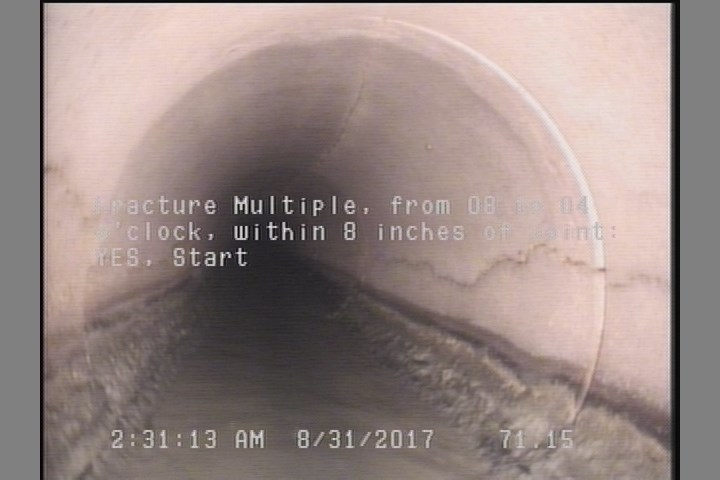

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    71.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

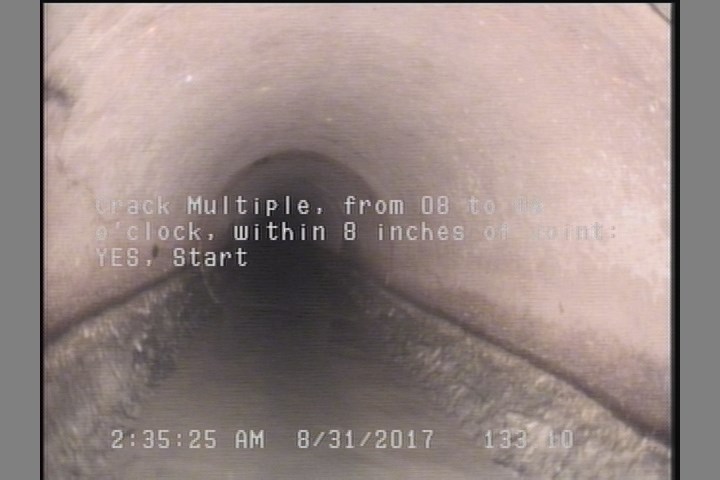

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    133.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

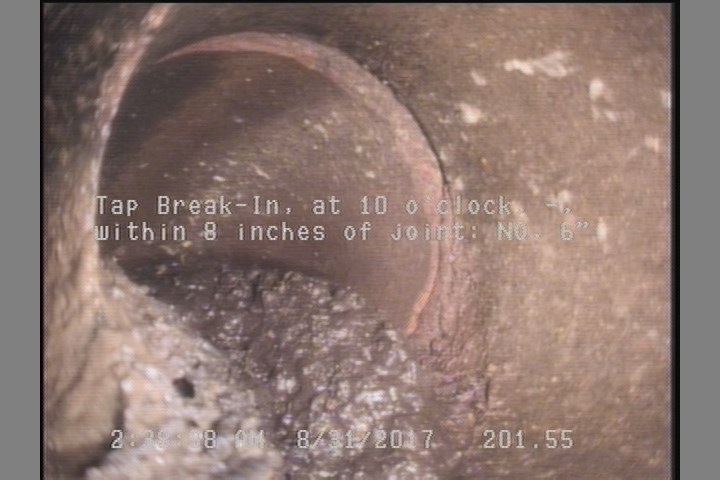

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    201.6 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    266 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P06593Work order 652020

Observations (22)

DistanceCodeObservation
3CM—
314.3TFC—
109.6TF—
332.1AMH05 1373
0MWM—
171CL—
109.6RML—
71.2FM—
332.1CM—
71.2CM—
224.7TFC—
133.1FM—
266TB—
0MWL—
96.7TFC—
0AMH05 1374
48.2TFA—
133.1CM—
262.8TF—
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
0MGOCONNECTION AT MH 9 O'CLOCK CAPPED
201.6TB—

Properties (5)

additional_info
SC345913
custom_field_two
3
customer
LACSD
datetime
2017-08-31T02:25:36-07:00
sewer_category
Gravity
