Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 09:04 AM
05 1375_05 1374 _31082017_020502.mp4
- Date
- 08/31/2017
- W/O
- 652020
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00487
- PipeID
- P06594
- Time
- 2:04 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4804
- Sewer Name
- 05 MONETA TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_652020_TV05074_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 1375
- Downstream MH
- 05 1374
- Dir. of Survey
- Downstream
- Length Surveyed
- 338.4 ft.
- Total Length
- 338.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

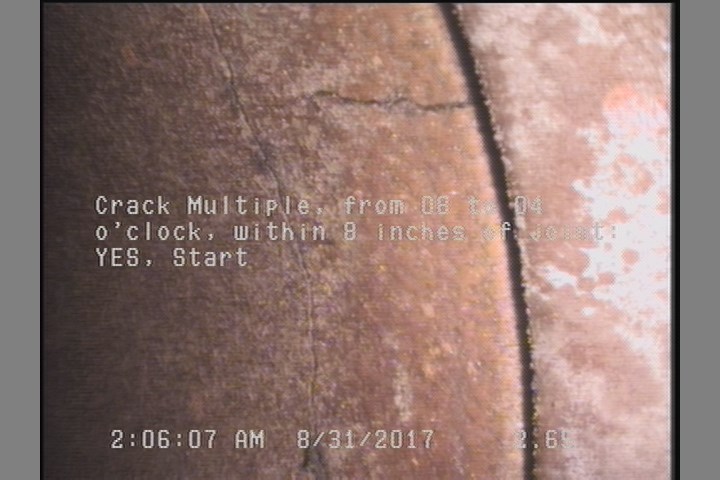

2.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

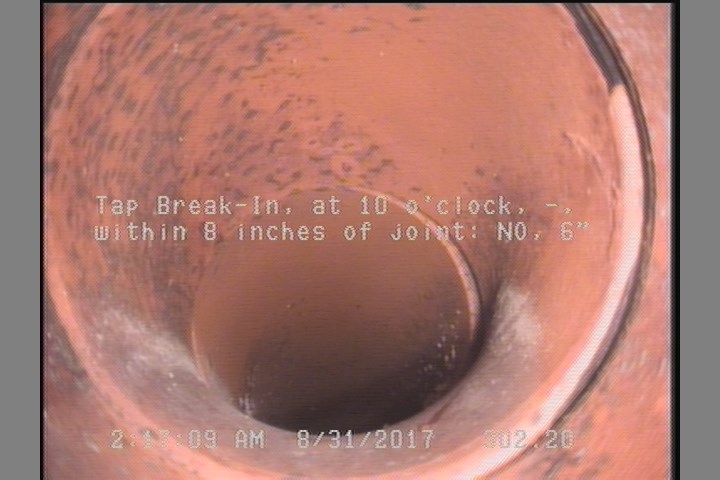

302.2 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 338.4 | AMH | 05 1374 |
| 0 | MWL | — |
| 173.4 | TF | — |
| 0 | AMH | 05 1375 |
| 75.9 | TFC | — |
| 178 | MGO | PIPE CHIPPING AWAY 12 TO 01 O'CLOCK |
| 302.2 | TB | — |
| 284.1 | TFC | — |
| 122 | TFC | — |
| 330.4 | TFC | — |
| 338.4 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 37.4 | TFC | — |
| 235.3 | TFC | — |
| 338.4 | CM | — |
| 2.7 | CM | — |
| 338.4 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
Properties (5)
- additional_info
- SC345913
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-31T02:04:28-07:00
- sewer_category
- Gravity
