Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2017, 10:44 AM

  • 05 1372_05 1371 _31082017_034440.mp4

Date
08/31/2017
W/O
652020
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00487
PipeID
P06591
Time
3:44 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4804
Sewer Name
05 MONETA TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
WO_652020_TV05074_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1372
Downstream MH
05 1371
Dir. of Survey
Downstream
Length Surveyed
331.8 ft.
Total Length
331.8 ft.
Structural Index
3
Structural Quick
443K
Structural Rating
199
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
205
Pipe schematic from manhole 05 1372 to 05 1371
MH: 05 1372MH: 05 1371downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 13720 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area4.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 05 o'clock, , within 8 inches of joint: YES48.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"98.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"147.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"178.9 ft. RBL - Roots Ball Lateral, at 02 o'clock, 75 % - INSIDE THE LATERAL178.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"198.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"246.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"261.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start261.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish280.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish280.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start303.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"329.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish331.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK331.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1371331.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

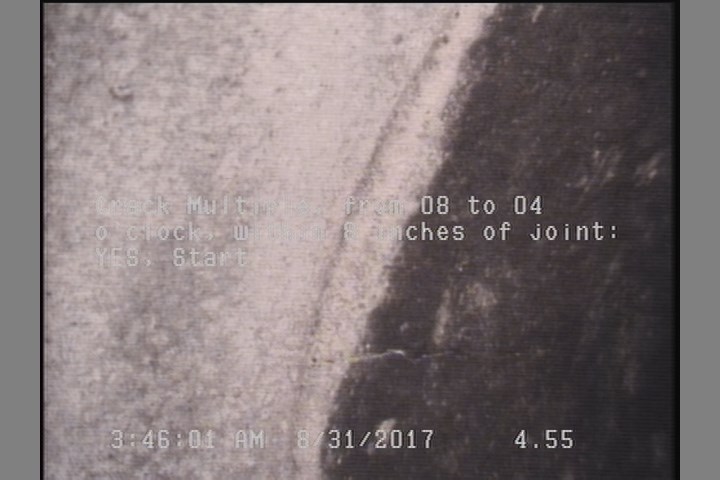

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

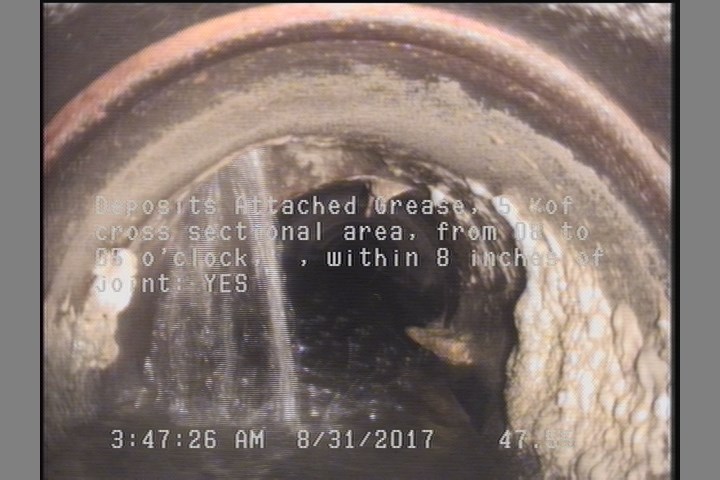

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 05 o'clock, , within 8 inches of joint: YES

    47.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 05 o'clock, , within 8 inches of joint: YES

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    261.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    280.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06591Work order 652020

Observations (21)

DistanceCodeObservation
198.7TFC—
303.3TFC—
98.2TFC—
0AMH05 1372
329.1CM—
147.2TFC—
261.2FM—
0MWM—
47.6DAGS—
4.6CM—
280.9FM—
331.8MGOCONNECTION AT MH 3 O'CLOCK
331.8AMH05 1371
178.9RBLINSIDE THE LATERAL
280.9CM—
246.5TFC—
0MWL—
178.9TF—
261.2CM—
48.4TFA—
331.8MGOCONNECTION AT MH 9 O'CLOCK

Properties (5)

additional_info
SC345913
custom_field_two
3
customer
LACSD
datetime
2017-08-31T03:44:08-07:00
sewer_category
Gravity
