Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 07:24 AM
03 0228_03 0227_06092017_004522.mp4
- Date
- 09/06/2017
- W/O
- 652009
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00387
- PipeID
- P04829
- Time
- 12:24 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4958
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_652009_TV03103_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0227
- Downstream MH
- 03 0228
- Dir. of Survey
- Upstream
- Length Surveyed
- 99.1 ft.
- Total Length
- 99.1 ft.
- Structural Index
- 2
- Structural Quick
- 3C2C
- Structural Rating
- 92
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 134
Observation photos (2)
3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

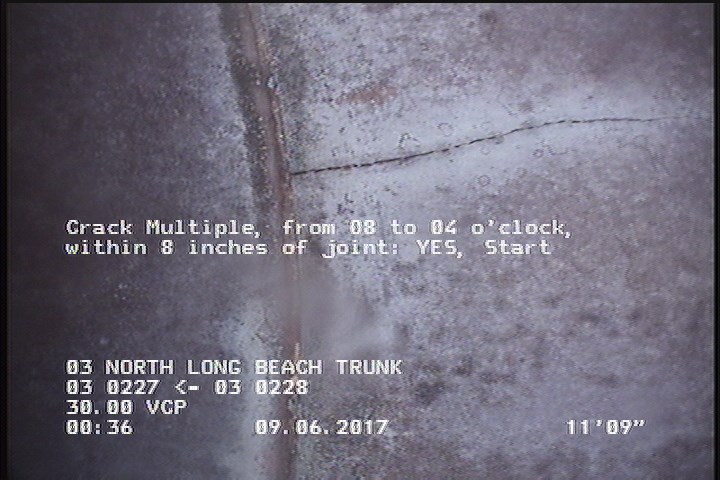

10.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 99.1 | CM | — |
| 3.6 | DAGS | — |
| 98 | SSS | — |
| 10.8 | CM | — |
| 0 | AMH | 03 0227 |
| 99.1 | AMH | 03 0228 |
| 99.1 | DAGS | — |
| 0 | MWL | — |
| 2 | SSS | — |
Properties (5)
- additional_info
- SC3456489
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-06T00:24:28-07:00
- sewer_category
- Gravity
