Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 05:44 AM

  • 05 0952_05 0951 _05072017_232037.mpg

Date
07/05/2017
W/O
630086
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00481
PipeID
P06184
Time
10:44 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4552
Sewer Name
05 MANCHESTER AVENUE PUMP TRUNK
City
HAWTHORNE
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_630086_TV05069_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
05 0952
Downstream MH
05 0951
Dir. of Survey
Downstream
Length Surveyed
339 ft.
Total Length
339 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 05 0952 to 05 0951
MH: 05 0952MH: 05 0951downstream0 ft. MGO - General Observation - CONNECTION AT 9 OC0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 09524.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES6.1 ft. CS - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: NO11.9 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES25.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"26.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES29.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start63.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish63.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start78.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"126.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"178.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"227.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"278.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"330.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"339 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish339 ft. MGO - General Observation - CONNECTION AT 3 OC339 ft. AMH - Downstream Manhole, Survey Ends - 05 0952

Observation photos (6)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    4.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

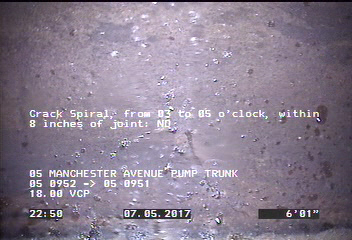

  • Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: NO

    6.1 ft. - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: NO

  • Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    11.9 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    26.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    29.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    63.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P06184Work order 630086

Observations (21)

DistanceCodeObservation
0MGOCONNECTION AT 9 OC
126.5TFC—
6.1CS—
4.7DAGS—
11.9CM—
78.2TFC—
339CM—
29.6CL—
0MWM—
330.3TFC—
178.4TF—
63.4CL—
25.9TFC—
0MWL—
26.8CM—
63.4CM—
339MGOCONNECTION AT 3 OC
227.1TFC—
0AMH05 0952
339AMH05 0952
278.4TFC—

Properties (5)

additional_info
SC345383
custom_field_two
3
customer
LACSD
datetime
2017-07-05T22:44:06-07:00
sewer_category
Gravity
