Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 09:17 AM

  • 29 0115_29 0086 _29082017_021742.mp4

Date
08/29/2017
W/O
651802
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00273
PipeID
P23902
Time
2:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4799
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_651802_TV29102_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0086
Downstream MH
29 0115
Dir. of Survey
Upstream
Length Surveyed
297.2 ft.
Total Length
297.2 ft.
Structural Index
3
Structural Quick
513K
Structural Rating
179
O&M Index
3
O&M Quick
4212
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
189
Pipe schematic from manhole 29 0086 to 29 0115
MH: 29 0086MH: 29 0115upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01152.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"8.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"62.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"64.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"112.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"115.2 ft. RBL - Roots Ball Lateral, at 02 o'clock, 75 %163.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"165.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"174.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"216.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"221 ft. RFJ - Roots Fine Joint, from 07 to 11 o'clock, within 8 inches of joint: YES254.2 ft. RFJ - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES264.5 ft. RBL - Roots Ball Lateral, at 10 o'clock, 75 %264.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.4 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES294.8 ft. MGO - General Observation - DROP CONNECTION294.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start297.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0086297.2 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK297.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (3)

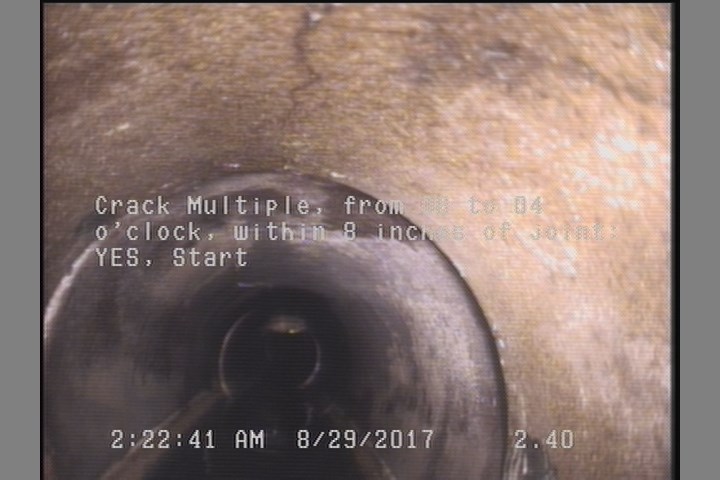

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

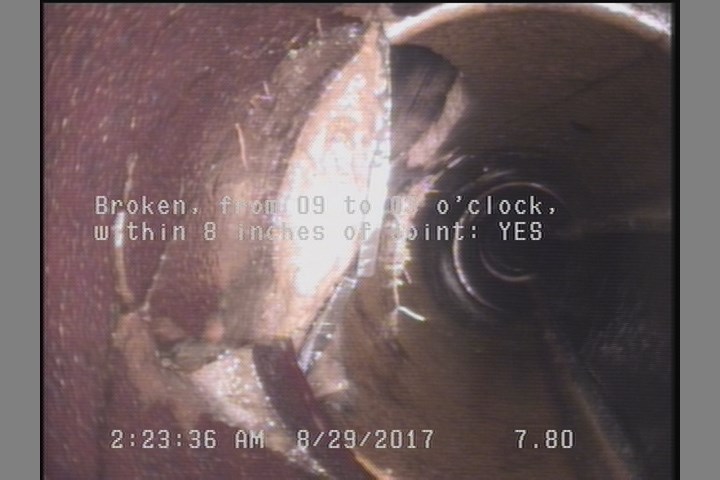

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES

    7.8 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES

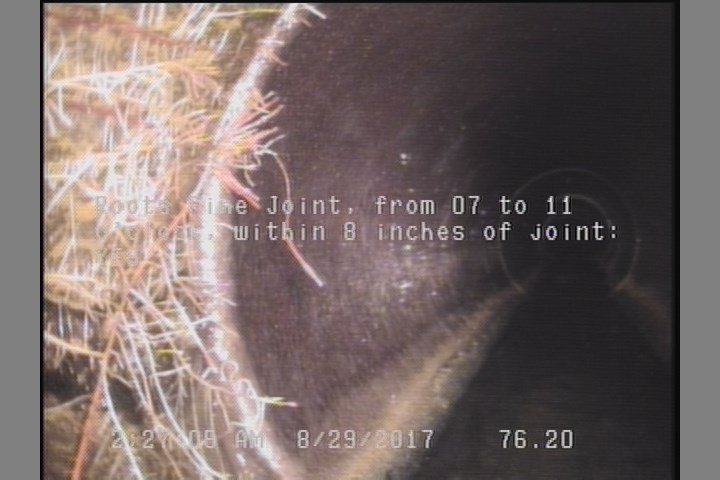

  • Roots Fine Joint, from 07 to 11 o'clock, within 8 inches of joint: YES

    76.2 ft. - Roots Fine Joint, from 07 to 11 o'clock, within 8 inches of joint: YES

All inspections of P23902Work order 651802

Observations (25)

DistanceCodeObservation
232.4TF—
32.7RBL—
134.1TF—
32.7TF—
0AMH29 0086
294.8CM—
80.8TFC—
291.2TFC—
0MGOCONNECTION AT MH 6 O'CLOCK
2.4MGODROP CONNECTION
30.6TFC—
182TF—
7.8B—
297.2AMH29 0115
182RBL—
43RFJ—
122.7TFA—
0MGOCONNECTION AT MH 3 O'CLOCK
131.7TFC—
2.4CM—
83.4TF—
288.6TF—
184.4TF—
234.8TF—
76.2RFJ—

Properties (5)

additional_info
SC345908
custom_field_two
3
customer
LACSD
datetime
2017-08-29T02:17:07-07:00
sewer_category
Gravity
