Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 08:40 AM

  • 29 0117_29 0087 _29082017_014111.mp4

Date
08/29/2017
W/O
651802
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00273
PipeID
P23906
Time
1:40 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4799
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_651802_TV29102_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0087
Downstream MH
29 0117
Dir. of Survey
Upstream
Length Surveyed
275.6 ft.
Total Length
275.7 ft.
Structural Index
3
Structural Quick
413J
Structural Rating
163
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
163
Pipe schematic from manhole 29 0087 to 29 0117
MH: 29 0087MH: 29 0117upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01170 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish33.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"41.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"44 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"68 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"70 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"90.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"93.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"98.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"145.7 ft. FM - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES152 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"188.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"217.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"241.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"265.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start275.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK275.7 ft. MWM - Water Mark, 5 %of cross sectional area275.7 ft. AMH - Downstream Manhole, Survey Begins - 29 0087275.7 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

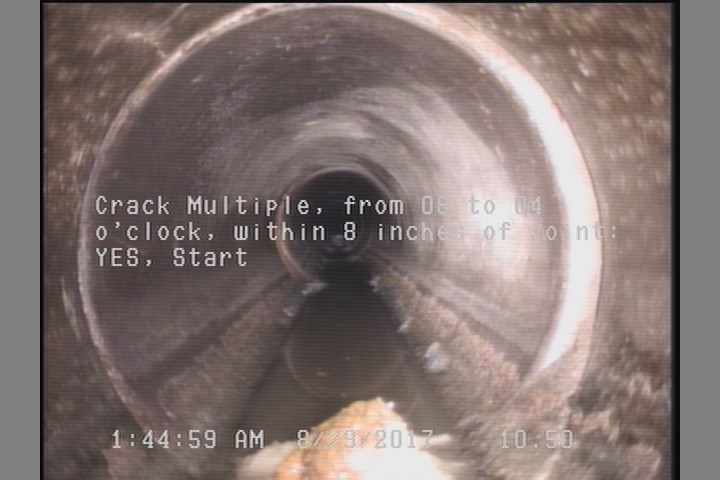

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

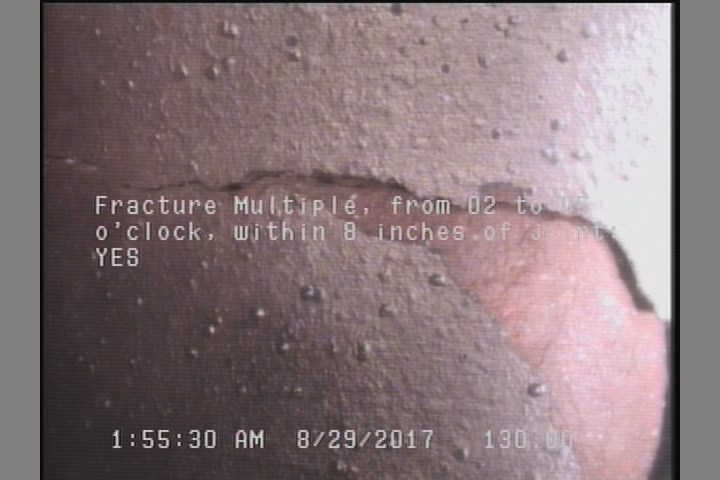

  • Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    130 ft. - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P23906Work order 651802

Observations (22)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK
155TFC—
234.1TF—
205.7TF—
0MWM—
181.9TF—
275.7AMH29 0117
130FM—
0AMH29 0087
131.7TF—
184.9TF—
275.7CM—
10.5CM—
231.7TFC—
207.7TFC—
123.7TF—
242.3TF—
0MWL—
34.2TF—
177.2TF—
57.9TF—
87.3TF—

Properties (5)

additional_info
SC345908
custom_field_two
3
customer
LACSD
datetime
2017-08-29T01:40:54-07:00
sewer_category
Gravity
