Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 10:22 AM
29 0099_29 0083 _29082017_032311.mp4
- Date
- 08/29/2017
- W/O
- 651802
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00273
- PipeID
- P23882
- Time
- 3:22 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4799
- Sewer Name
- 29 33RD STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_651802_TV29102_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0083
- Downstream MH
- 29 0099
- Dir. of Survey
- Upstream
- Length Surveyed
- 249.1 ft.
- Total Length
- 249.2 ft.
- Structural Index
- 3
- Structural Quick
- 3I21
- Structural Rating
- 149
- O&M Index
- 3
- O&M Quick
- 4231
- O&M Rating
- 15
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 164
Observation photos (4)

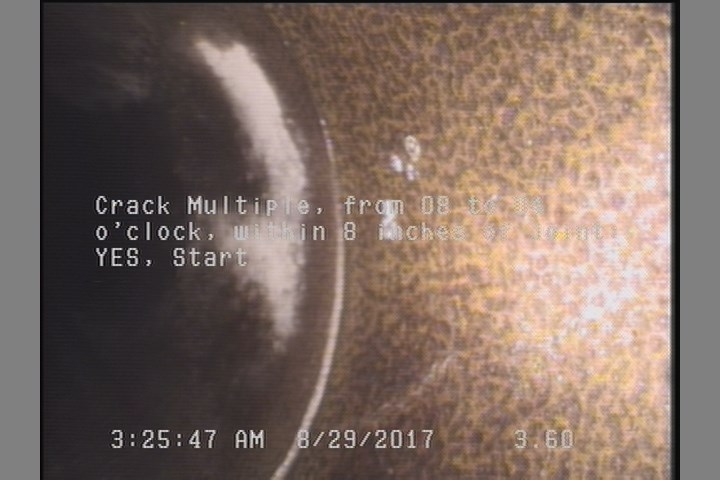

3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

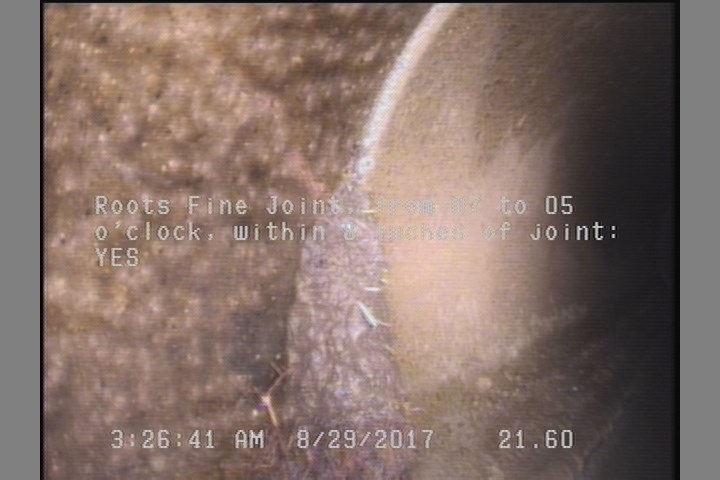

21.6 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

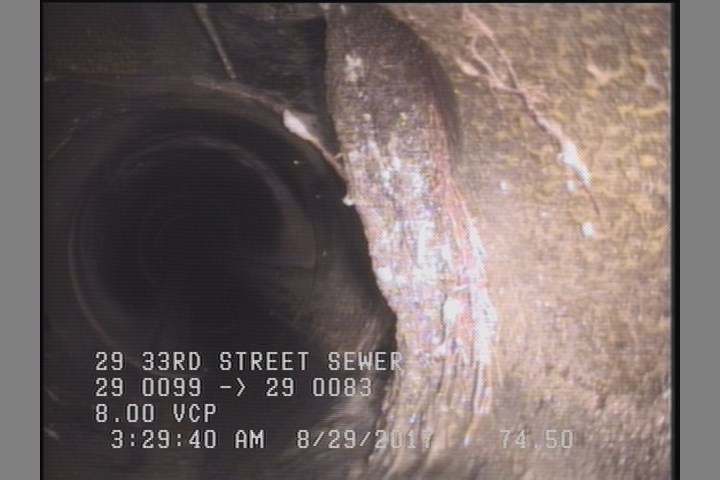

74.5 ft. - Roots Fine Connection, at 04 o'clock

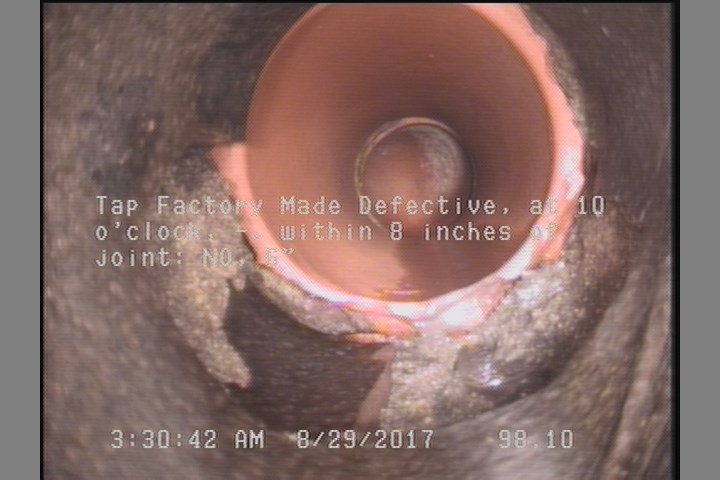

98.1 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (22)
| Distance | Code | Observation |
|---|---|---|
| 171.9 | TFC | — |
| 74.5 | RML | — |
| 0 | AMH | 29 0083 |
| 145.3 | TF | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 0 | MWL | — |
| 72.2 | RBL | — |
| 248 | CM | — |
| 74.5 | TFA | — |
| 74.5 | RFC | — |
| 72.2 | TF | — |
| 124.8 | TF | — |
| 21.6 | RFJ | — |
| 227.7 | TF | — |
| 219.8 | TF | — |
| 145.3 | RBL | — |
| 3.6 | CM | — |
| 98.1 | TFD | — |
| 249.2 | AMH | 29 0099 |
| 222.1 | TF | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345908
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-29T03:22:50-07:00
- sewer_category
- Gravity
