Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 09:53 AM

  • 29 0114_29 0113 _29082017_025355.mp4

Date
08/29/2017
W/O
651802
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00273
PipeID
P23901
Time
2:53 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4799
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_651802_TV29102_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0113
Downstream MH
29 0114
Dir. of Survey
Upstream
Length Surveyed
223.1 ft.
Total Length
223.1 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
129
O&M Index
3
O&M Quick
3A11
O&M Rating
37
Overall Index
3
Overall Quick
—
Overall Rating
166
Pipe schematic from manhole 29 0113 to 29 0114
MH: 29 0113MH: 29 0114upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish0 ft. ACOM - Cleanout Mainline, Survey Ends - 29 01141.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"4.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"12.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"15.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"60.7 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start63.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"89.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"116.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. RFJ - Roots Fine Joint, from 12 to 04 o'clock, within 8 inches of joint: YES166.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"169.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"214.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"215.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start216.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"223.1 ft. AMH - Downstream Manhole, Survey Begins - 29 0113223.1 ft. MWL - Water Level, 5 %of cross sectional area223.1 ft. MWM - Water Mark, 5 %of cross sectional area

Observation photos (3)

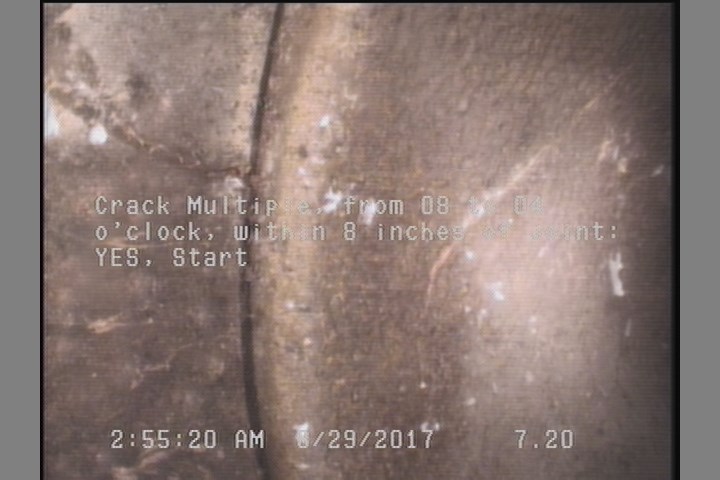

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

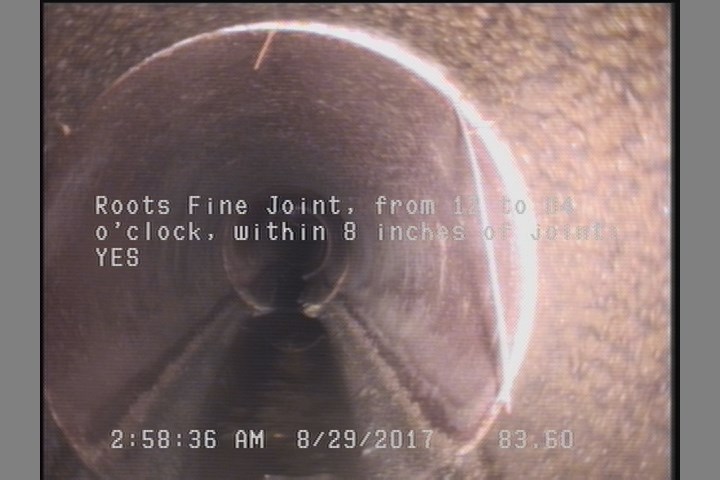

  • Roots Fine Joint, from 12 to 04 o'clock, within 8 inches of joint: YES

    83.6 ft. - Roots Fine Joint, from 12 to 04 o'clock, within 8 inches of joint: YES

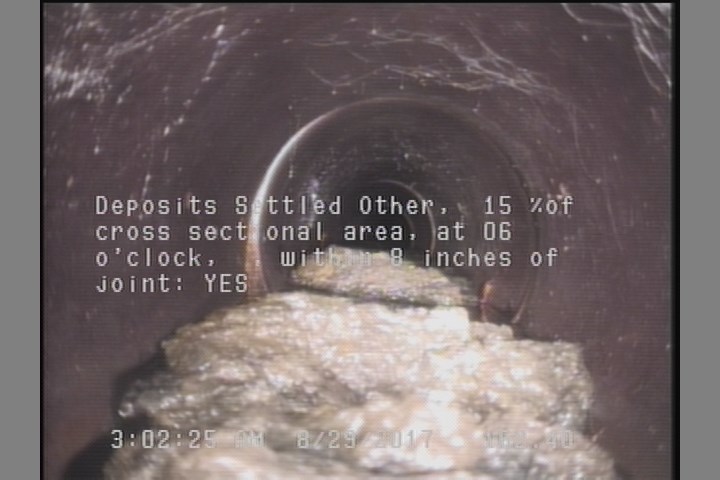

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    162.4 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P23901Work order 651802

Observations (23)

DistanceCodeObservation
157.7TF—
6.2TF—
56.2TF—
159.4TB—
7.2CM—
223.1CM—
223.1TF—
0AMH29 0113
8.5TF—
223.1DSZ—
133.8TF—
207.6TFC—
107TF—
0MWL—
0MWM—
210.4TFC—
159.7TFC—
219TFC—
83.6RFJ—
53.8TF—
223.1ACOM29 0114
162.4DSZ—
221.4TFC—

Properties (5)

additional_info
SC345908
custom_field_two
3
customer
LACSD
datetime
2017-08-29T02:53:24-07:00
sewer_category
Gravity
