Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 01:43 PM
02 1386_H JOINT _30082017_070658.mp4
- Date
- 08/30/2017
- W/O
- 659772
- Weather
- Dry
- Operator/Surveyor
- KYLE A.
- Sewer ID
- Z00242
- PipeID
- P25322
- Time
- 6:43 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4810
- Sewer Name
- 02 CLOVERLAWN TRUNK
- City
- PARAMOUNT
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_659772_DISTRICT_02_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 02 1386
- Downstream MH
- H JOINT
- Dir. of Survey
- Downstream
- Length Surveyed
- 45.3 ft.
- Total Length
- 45.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3122
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

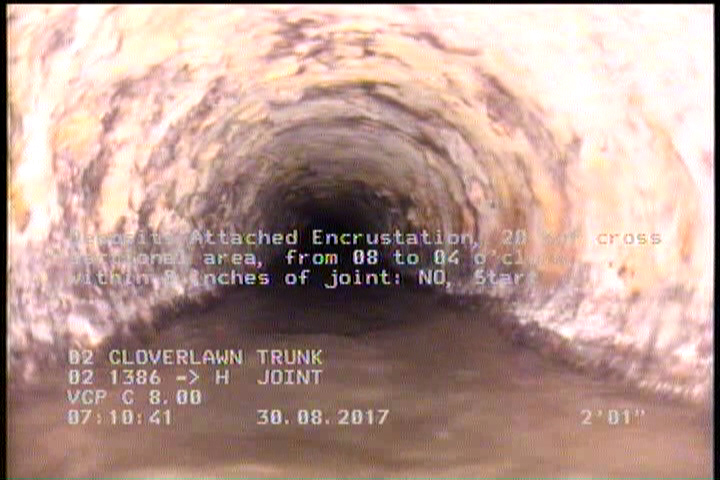

2.1 ft. - Deposits Attached Encrustation, 20 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

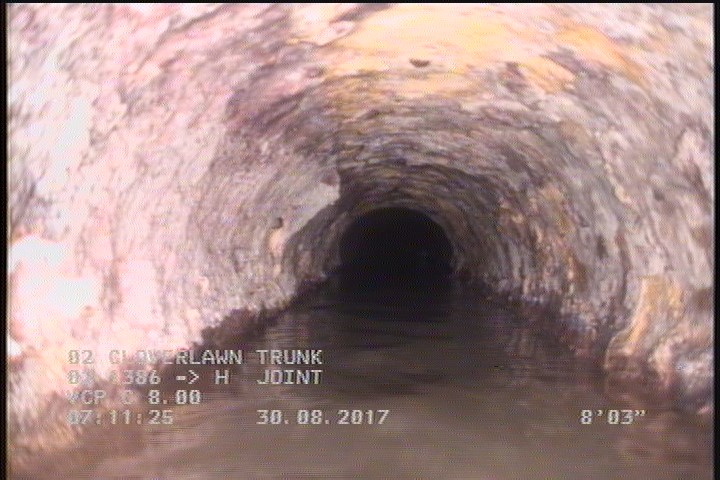

8.3 ft. - General Photograph

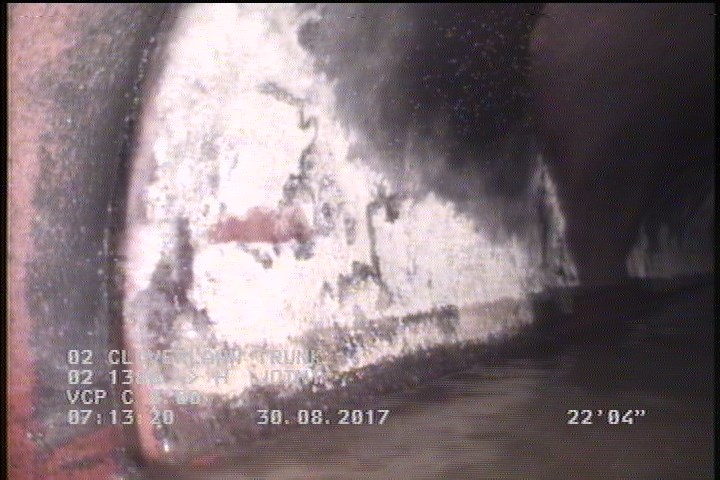

22.3 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES

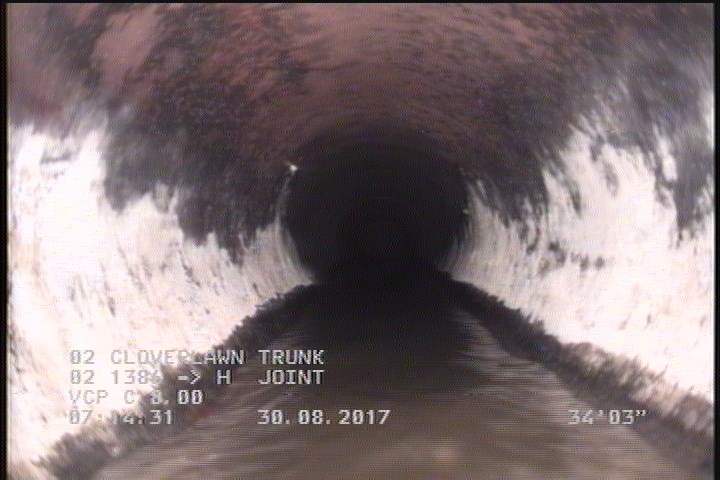

34.2 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 40.4 | DAE | — |
| 15.5 | DAE | — |
| 45.3 | AOC | H JOINT |
| 15.5 | MWL | — |
| 0 | AMH | 02 1386 |
| 44 | MGO | SPALLING THROUGHOUT THE REACH |
| 22.3 | DAE | — |
| 0 | MWM | — |
| 8.3 | MGP | — |
| 0 | MWL | — |
| 2.1 | DAE | — |
| 34.2 | DAE | — |
Properties (6)
- additional_info
- SC353042
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-30T06:43:15-07:00
- sewer_category
- Gravity
- year_laid
- 38576
