Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 05:20 AM

  • 29 0181_29 0180 _29082017_222043.mp4

Date
08/29/2017
W/O
652160
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01025
PipeID
P24078
Time
10:20 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4801
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_652160_TV29006_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
29 0181
Downstream MH
29 0180
Dir. of Survey
Downstream
Length Surveyed
316.4 ft.
Total Length
316.4 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
190
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
190
Pipe schematic from manhole 29 0181 to 29 0180
MH: 29 0181MH: 29 0180downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 01810 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 0 %of cross sectional area3.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start67.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"69.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"209.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"308.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES311.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish316.4 ft. AMH - Downstream Manhole, Survey Ends - 29 0180

Observation photos (2)

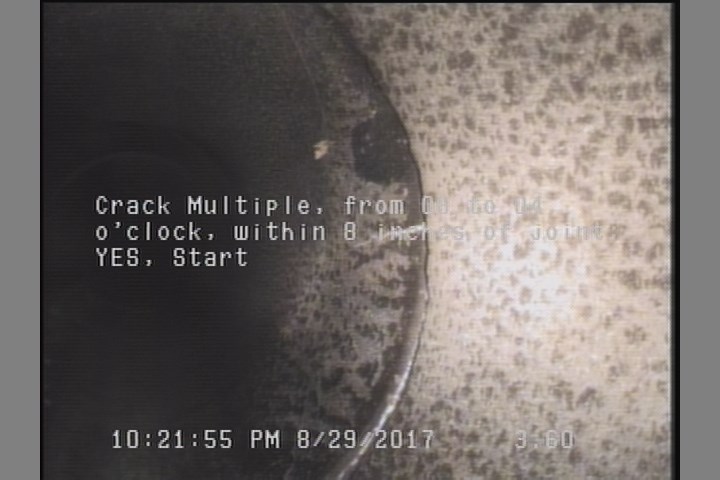

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

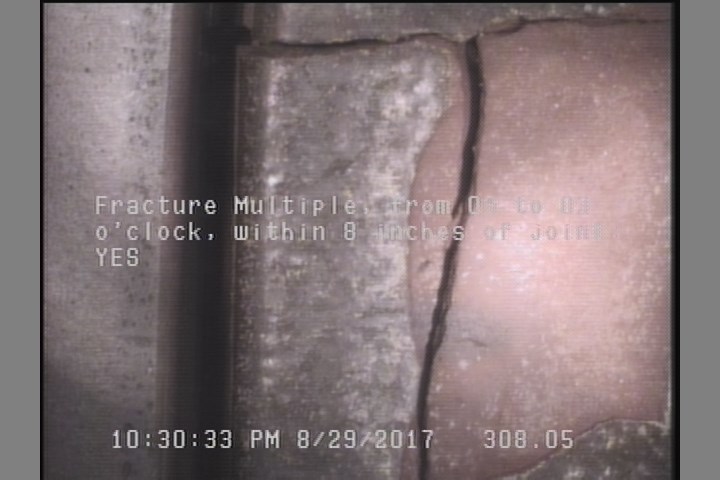

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    308.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P24078Work order 652160

Observations (11)

DistanceCodeObservation
316.4AMH29 0180
311.3CM—
0AMH29 0181
3.6CM—
206.3TB—
67.1TFC—
209.1TF—
0MWM—
69.7TFC—
308.1FM—
0MWL—

Properties (5)

additional_info
SC345910
custom_field_two
3
customer
LACSD
datetime
2017-08-29T22:20:28-07:00
sewer_category
Gravity
