Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2017, 06:11 AM

  • 29 0147_29 0146 _29082017_231213.mp4

Date
08/29/2017
W/O
651744
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00378
PipeID
P24041
Time
11:11 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4802
Sewer Name
29 REDONDO AVENUE TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
WO_651744_TV29061_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
29 0146
Downstream MH
29 0147
Dir. of Survey
Upstream
Length Surveyed
266.5 ft.
Total Length
266.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0146 to 29 0147
MH: 29 0146MH: 29 0147upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 014734.1 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 6", 6" - BROKEN131.2 ft. MGO - General Observation - UNMAPPED MH131.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK154.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"196.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES205.2 ft. H - Hole, at 01 o'clock, within 8 inches of joint: YES - CRACKS AROUND THE HOLE264.5 ft. MGO - General Observation - DROP CONNECTION266.6 ft. MWL - Water Level, 5 %of cross sectional area266.6 ft. MWM - Water Mark, 10 %of cross sectional area266.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK266.6 ft. AMH - Downstream Manhole, Survey Begins - 29 0146

Observation photos (2)

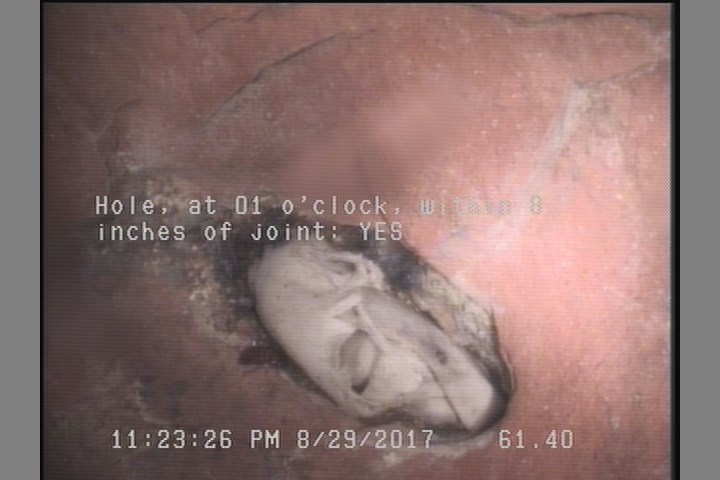

  • Hole, at 01 o'clock, within 8 inches of joint: YES - CRACKS AROUND THE HOLE

    61.4 ft. - Hole, at 01 o'clock, within 8 inches of joint: YES - CRACKS AROUND THE HOLE

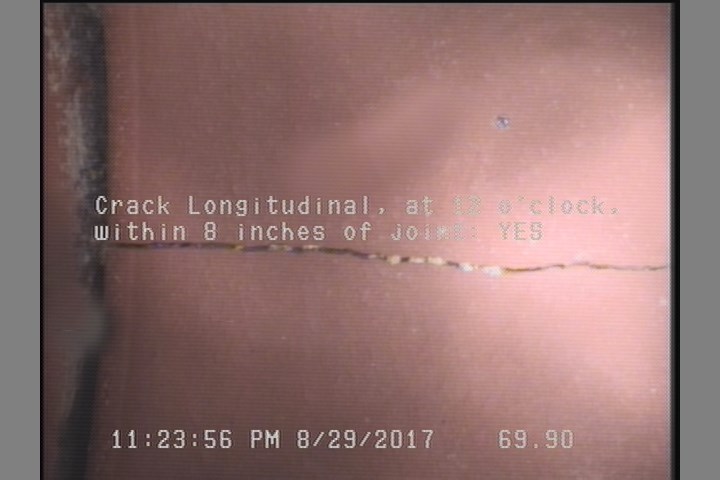

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    69.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P24041Work order 651744

Observations (12)

DistanceCodeObservation
0MWL—
0MWM—
232.5TFDBROKEN
0MGOCONNECTION AT MH 9 O'CLOCK
2.1MGODROP CONNECTION
135.4MGOUNMAPPED MH
266.6AMH29 0147
69.9CL—
0AMH29 0146
61.4HCRACKS AROUND THE HOLE
135.4MGOCONNECTION AT MH 9 O'CLOCK
112.5TF—

Properties (5)

additional_info
SC345911
custom_field_two
1
customer
LACSD
datetime
2017-08-29T23:11:21-07:00
sewer_category
Gravity
