Wastewater/Activity/PacpInspection/1.0Aug 23, 2017, 10:02 AM
21 0621_21 0620_08232017_030256.mp4
- Date
- 08/23/2017
- W/O
- 646223
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00786
- PipeID
- P15773
- Time
- 3:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4720
- Sewer Name
- 21 TRI-CITIES OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_646223_TV21082_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0620
- Downstream MH
- 21 0621
- Dir. of Survey
- Upstream
- Length Surveyed
- 413.2 ft.
- Total Length
- 413.2 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 219
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 164
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 383
Observation photos (2)

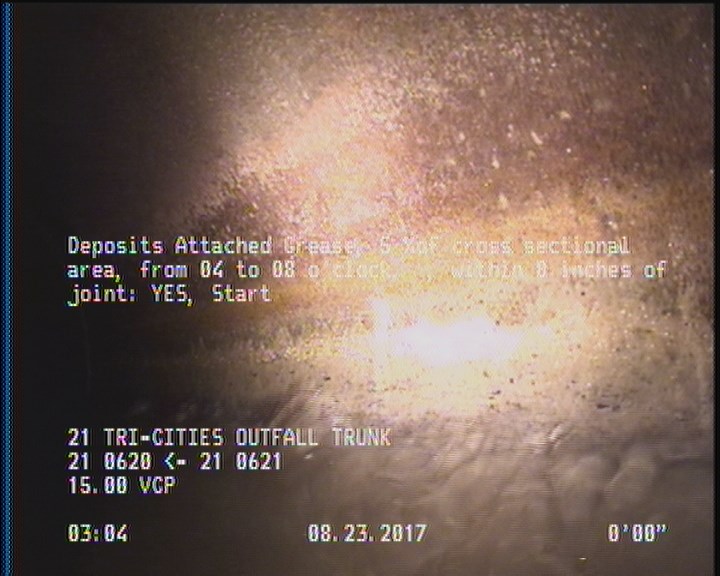

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

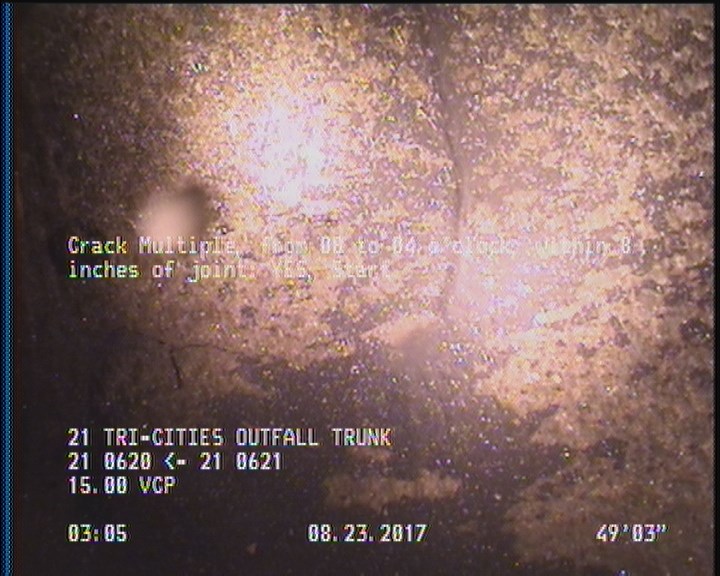

49.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 413.2 | DAGS | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 413.2 | AMH | 21 0621 |
| 0 | AMH | 21 0620 |
| 413.2 | CM | — |
| 413.2 | MGO | ACTIVE CONNECTION AT MH 10 O'CLOCK |
| 49.3 | CM | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345722
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-23T03:02:07-07:00
- sewer_category
- Gravity
