Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 06:28 PM
22 1023_22 1022_1032017_113250.mp4
- Date
- 10/03/2017
- W/O
- 0596837
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00819
- PipeID
- P17392
- Time
- 11:28 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7527
- Sewer Name
- 22 LORAINE TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20171003SHO_LORAINE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 22 1023
- Downstream MH
- 22 1022
- Dir. of Survey
- Downstream
- Length Surveyed
- 118 ft.
- Total Length
- 118 ft.
- Structural Index
- 1
- Structural Quick
- 2112
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

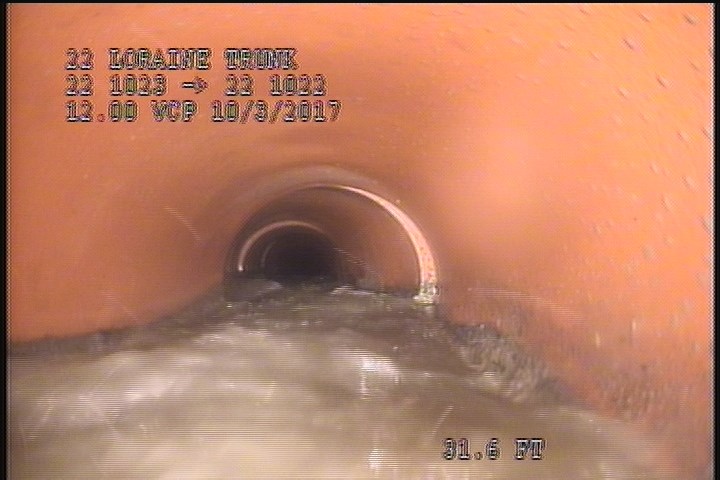

34 ft. - Joint Offset Medium

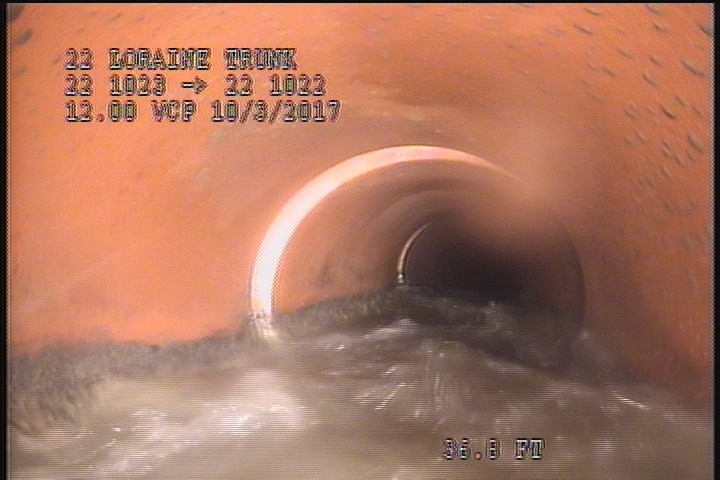

36.8 ft. - Joint Offset Medium

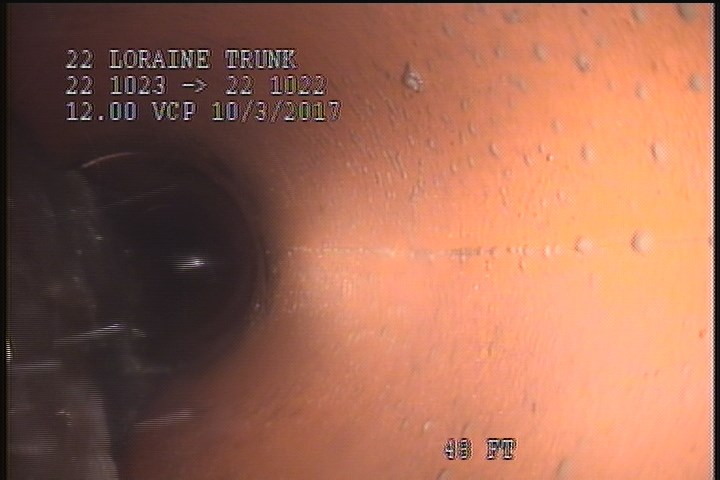

48 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES - JOINT TO JOINT
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1135 |
| 48 | CL | JOINT TO JOINT |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 6 O CLOCK |
| 36.8 | JOM | — |
| 113.9 | MGO | GREASE THROUGHOUT THE REACH |
| 0 | MWL | — |
| 118 | AMH | 1145 |
| 34 | JOM | — |
Properties (4)
- custom_field_three
- CRACK THAT IS JOINT TO JOINT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-03T11:28:38-07:00
