Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 05:37 PM
22 1028_22 1027_9292017_103830.mp4
- Date
- 09/29/2017
- W/O
- 0596837
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00819
- PipeID
- P17397
- Time
- 10:37 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7525
- Sewer Name
- 22 LORAINE TRUNK
- City
- GLENDORA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170929SHO_LORAINE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 22 1028
- Downstream MH
- 22 1027
- Dir. of Survey
- Downstream
- Length Surveyed
- 271.6 ft.
- Total Length
- 271.6 ft.
- Structural Index
- 2
- Structural Quick
- 2211
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 3123
- O&M Rating
- 9
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

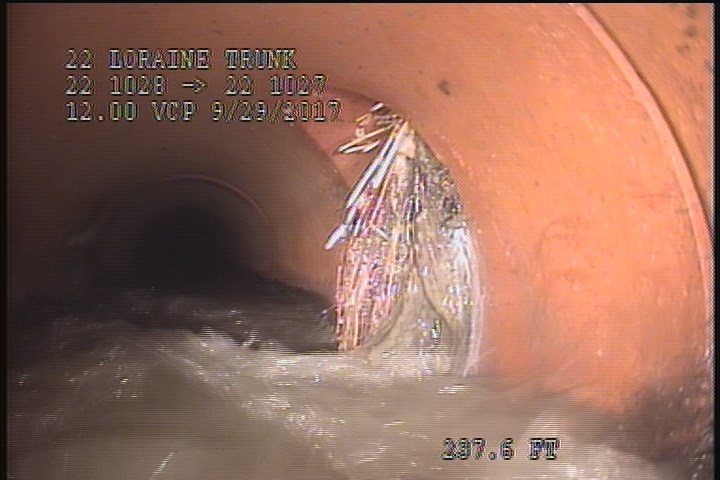

237.6 ft. - Roots Medium Connection, from 02 to 05 o'clock, 10 %, within 8 inches of joint: NO

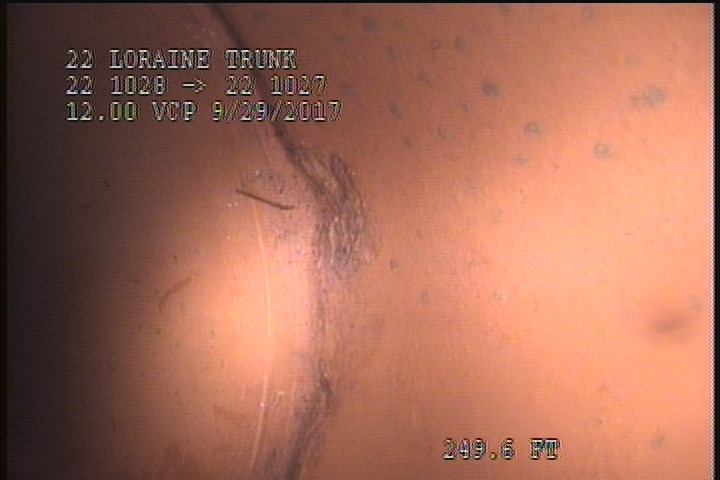

249.6 ft. - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: YES

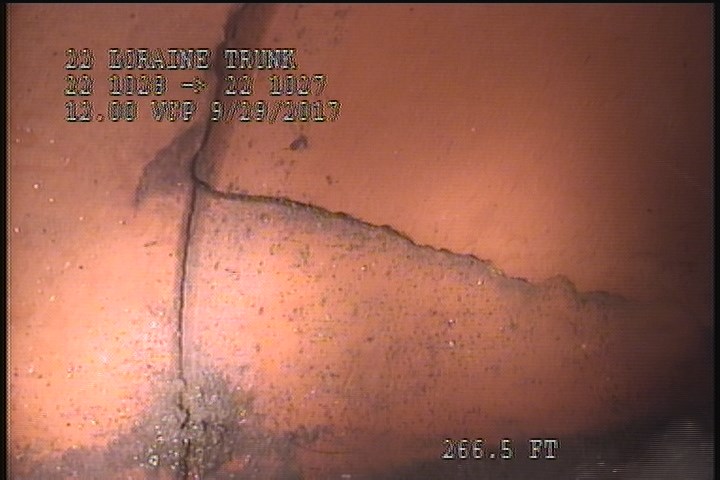

266.5 ft. - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 3.2 | DAGS | — |
| 269.5 | DAGS | — |
| 239.3 | TFD | 80% ROOTS, OPEN |
| 107.9 | TF | OPEN |
| 0 | AMH | 1040 |
| 271.6 | AMH | 1050 |
| 156 | CC | — |
| 237.6 | RMC | — |
| 249.6 | SSS | — |
| 266.5 | FC | — |
| 0 | MWM | — |
| 39.1 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 3 O CLOCK |
| 173.6 | TFD | 20% ROOTS, OPEN |
| 0 | MWL | — |
Properties (4)
- custom_field_three
- SPALLING & FRACTURE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-29T10:37:13-07:00
