Wastewater/Activity/PacpInspection/1.0Oct 5, 2017, 04:06 PM
05 0953A_05 0953_1052017_095518.mp4
- Date
- 10/05/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00481
- PipeID
- P06186
- Time
- 9:06 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7529
- Sewer Name
- 05 MANCHESTER AVENUE PUMP TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Maintenance Related
- Project
- 20171005SHO_MANCHESTER_AVENUE_PUMP_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 0953A
- Downstream MH
- 05 0953
- Dir. of Survey
- Downstream
- Length Surveyed
- 199.8 ft.
- Total Length
- 199.8 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (8)

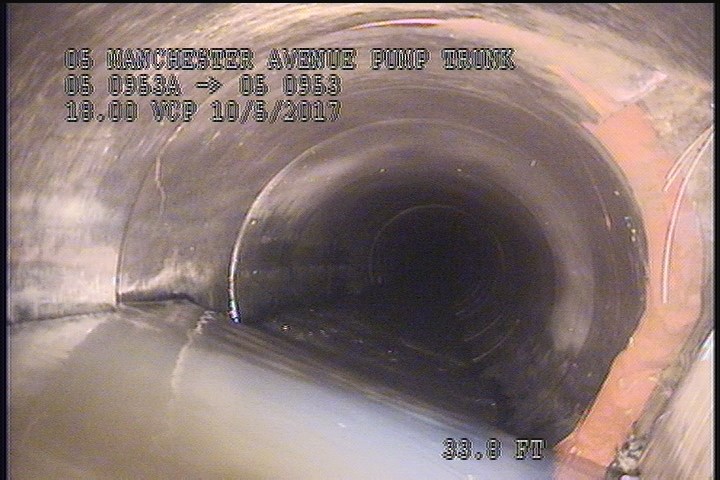

33.8 ft. - General Observation - AFTER CLEANING

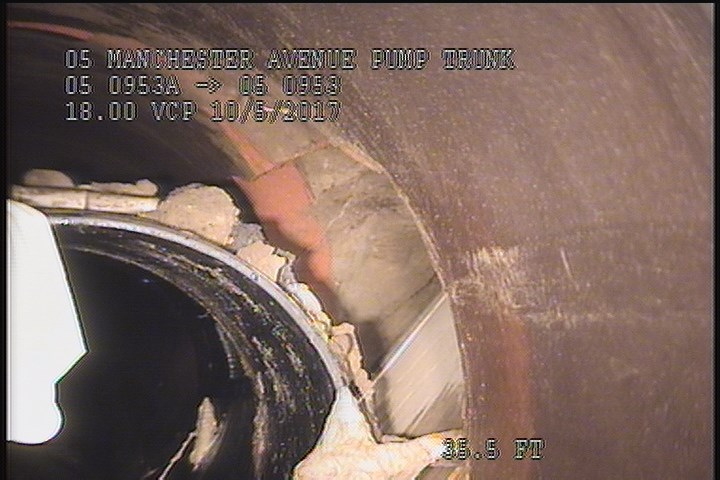

34.4 ft. - General Observation - SOIL VISIBLE

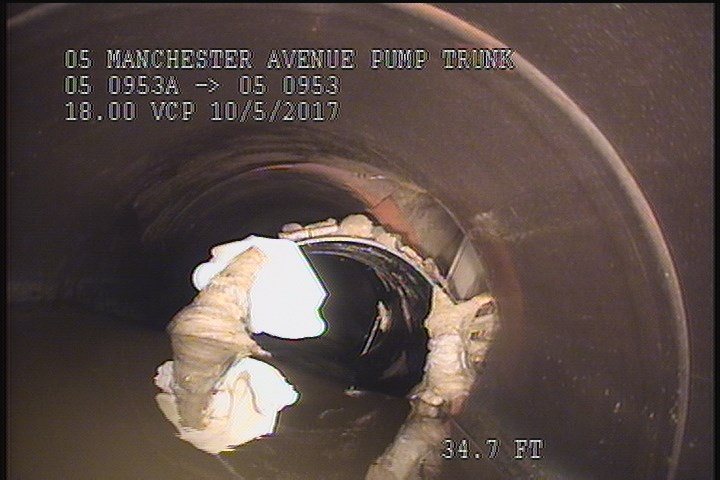

34.4 ft. - Collapse Pipe Sewer, 50 %

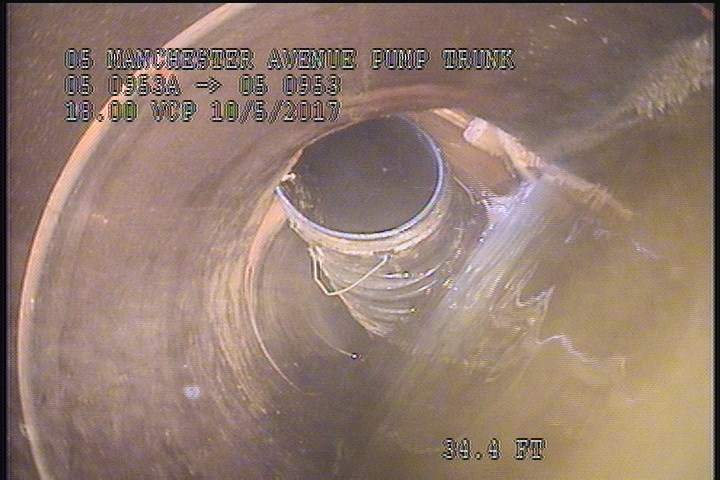

34.4 ft. - General Observation - BUCKET CONTRACTOR USED TO PROTECT THE HOLE

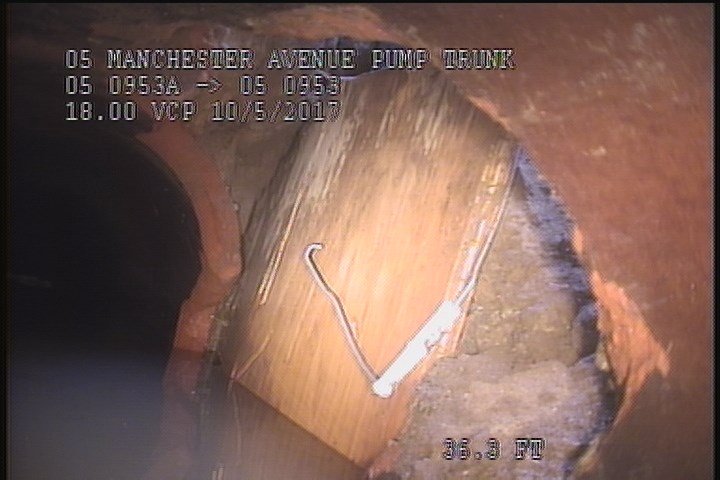

36.3 ft. - General Observation - COLLAPSE

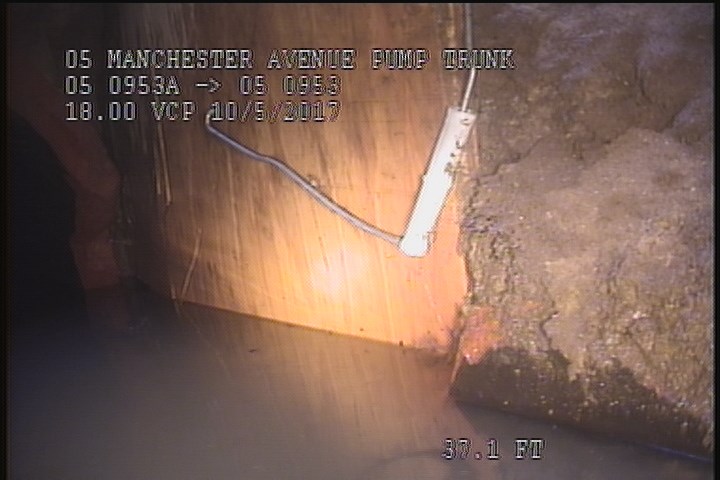

37.1 ft. - General Observation - BREAK IN PIPE, BREAK IS UNDER WATER
44.9 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - PART OF THE VCP
199.8 ft. - Downstream Manhole, Survey Ends - 1047
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 34.4 | MGO | SOIL VISIBLE |
| 44.9 | DSZ | PART OF THE VCP |
| 34.4 | XP | — |
| 36.3 | MGO | COLLAPSE |
| 199.8 | AMH | 1047 |
| 37.1 | MGO | BREAK IN PIPE, BREAK IS UNDER WATER |
| 0 | AMH | 0955 |
| 33.8 | MGO | AFTER CLEANING |
| 34.4 | MGO | BUCKET CONTRACTOR USED TO PROTECT THE HOLE |
Properties (5)
- additional_info
- ASSESSING DAMAGE TO OUR PIPE DUE TO EDISON CONSTRUCTION
- custom_field_three
- EMERGENCY CCTV
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-05T09:06:12-07:00
