Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 08:04 AM

  • Section#1_02 0927_02 0926__1032017__G6836.mp4

Date
10/03/2017
W/O
0663254
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00252
PipeID
P03495
Time
1:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6836
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20171003MDM_DOWNEY_BELLFLOWER_DIVERISON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0927
Downstream MH
02 0926
Dir. of Survey
Downstream
Length Surveyed
348.2 ft.
Total Length
348.2 ft.
Structural Index
3
Structural Quick
513D
Structural Rating
106
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
110
Pipe schematic from manhole 02 0927 to 02 0926
MH: 02 0927MH: 02 0926downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area8.1 ft. MGO - General Observation - 24" VCP16.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE22 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H27.3 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H32.4 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - SLIGHT37 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT37.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H43.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT62.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT66.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT68.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H68.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT107.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT117.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT127.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT143.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H148.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H153.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT158.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H169.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT178.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H203.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H219 ft. HSV - Hole Soil Visible, at 03 o'clock, within 8 inches of joint: YES - 1" X1"219 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H229.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H249.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H259.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT259.9 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SLIGHT265 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H274.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H285.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT285.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H295.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H305.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H315.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H325.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT325.8 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H335.9 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT343.1 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - SLIGHT348.2 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (6)

  • General Observation - 24" VCP

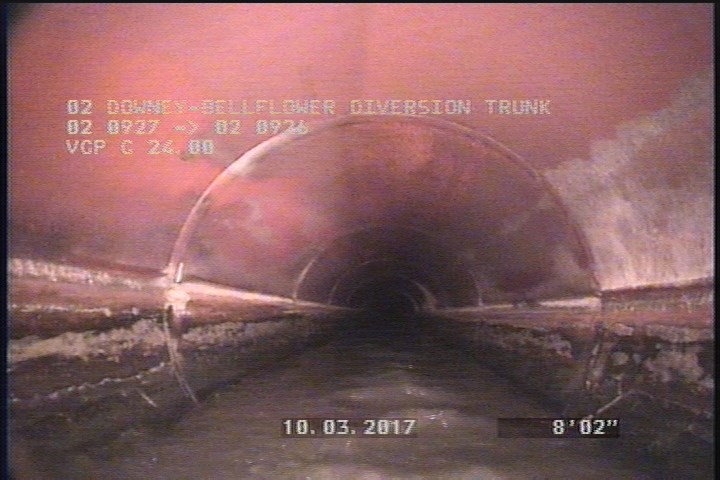

    8.1 ft. - General Observation - 24" VCP

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

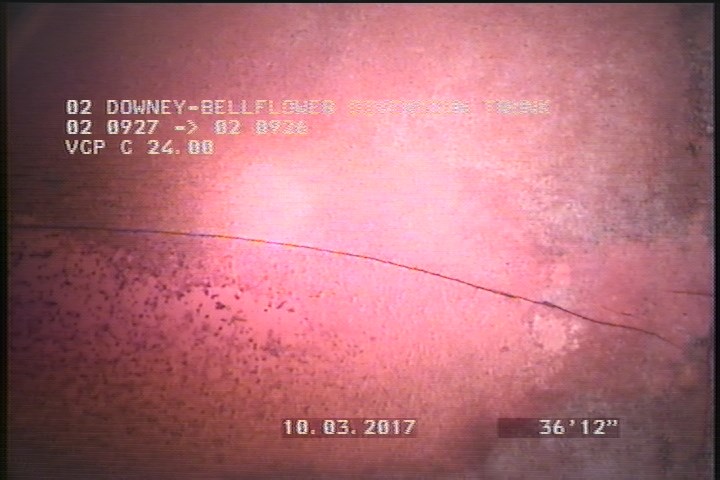

    37 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

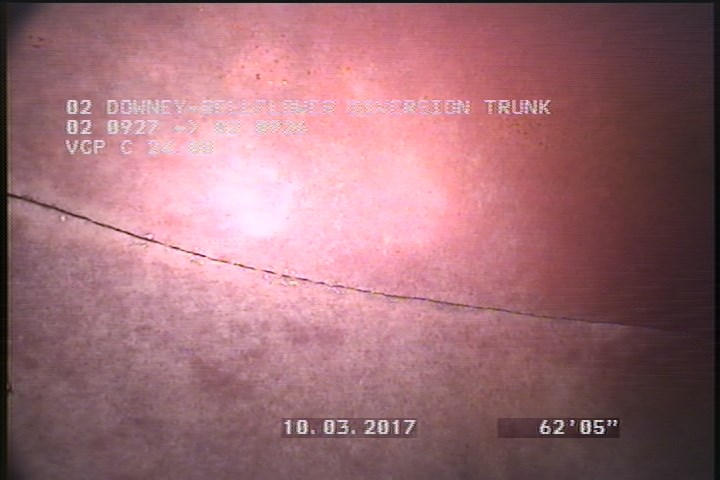

    62.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

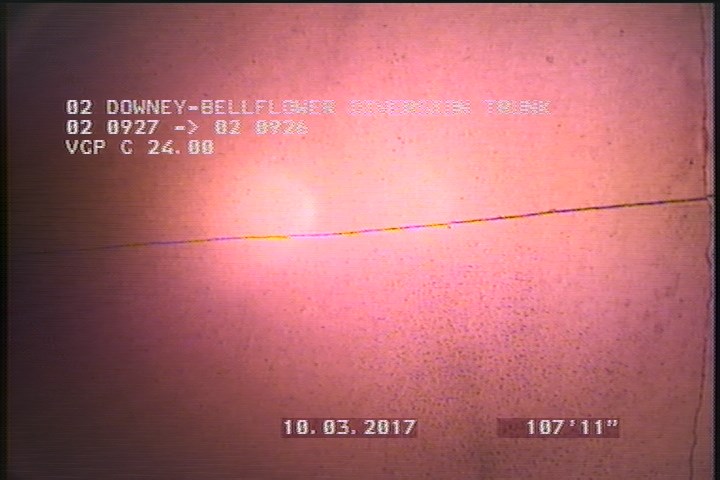

    107.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Hole Soil Visible, at 03 o'clock, within 8 inches of joint: YES - 1" X1"

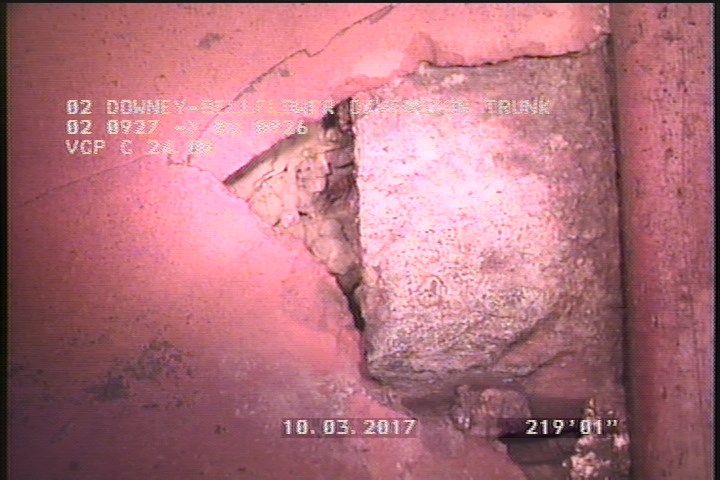

    219 ft. - Hole Soil Visible, at 03 o'clock, within 8 inches of joint: YES - 1" X1"

  • Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

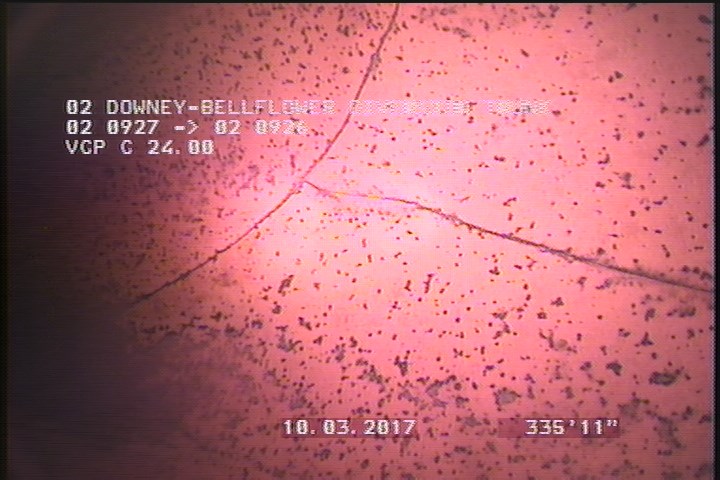

    335.9 ft. - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P03495Work order 0663254

Observations (43)

DistanceCodeObservation
259.9FLSLIGHT
62.4FLSLIGHT
117.6FLSLIGHT
143.1FLH
203.8FLH
107.9FLSLIGHT
295.5FLH
0AMH4:55AM
0MWL—
169.7FLSLIGHT
219HSV1" X1"
259.9FCSLIGHT
27.3FLH
22FLH
68.2FLH
325.8FCSLIGHT
32.4FLSLIGHT
325.8FLH
153.2FCSLIGHT
274.6FCH
285.1FCSLIGHT
37.9FLH
305.8FLH
285.1FLH
0MWM—
16.7FLHAIRLINE
219FCH
178.8FLH
335.9FSSLIGHT
158.7FCH
148.1FCH
265FLH
66.6FLSLIGHT
249.3FLH
343.1FSSLIGHT
127.9FLSLIGHT
8.1MGO24" VCP
229.4FLH
315.5FCH
37FLSLIGHT
68.2FCSLIGHT
348.2AMH5:40AM
43.3FLSLIGHT

Properties (4)

custom_field_three
SLIGHT FRACTURES JOINT TO JOINT LONGER-(1" X1"HOLE
custom_field_two
2
customer
LACSD
datetime
2017-10-03T01:04:41-07:00
