Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2017, 08:51 AM

  • Section#2_G 0319_G 0318__1022017__G6834.mp4

Date
10/02/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01755
Time
1:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6834
Sewer Name
G JOINT OUTFALL G- UNIT 9 TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20171002MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
G 0319
Downstream MH
G 0318
Dir. of Survey
Downstream
Length Surveyed
464.8 ft.
Total Length
464.8 ft.
Structural Index
4
Structural Quick
5E4R
Structural Rating
532
O&M Index
3
O&M Quick
3N00
O&M Rating
228
Overall Index
4
Overall Quick
—
Overall Rating
760
Pipe schematic from manhole G 0319 to G 0318
MH: G 0319MH: G 0318downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:25AM2 ft. MGO - General Observation - MISSING TILES 70% START 8:00 TO 4:002 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERER AGG AREAS OF MISSING TILES4.8 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - FALLEN TILES9.7 ft. MGO - General Observation - MISING TILES 80%14.8 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish - FALLEN TILES14.8 ft. MGO - General Observation - MISSING TILES 10% START41 ft. MGO - General Observation - 90% MISSING TILES46.3 ft. SRV - Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR61.1 ft. MGO - General Observation - MISSIING TILES 100%74.3 ft. MGO - General Observation - MISSING TILES 90%77.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG78 ft. SRV - Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR86.6 ft. MGO - General Observation - 80% MISSING TILES92 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES, Start - LONG REBAR92.8 ft. SRV - Surface Reinforcement Visible, from 09 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR98.2 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES, Finish - LONG REBAR98.2 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - FALLEN TILES98.2 ft. SRV - Surface Reinforcement Visible, from 09 to 02 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR105.7 ft. MGO - General Observation - LOOSE TILES109.9 ft. MGO - General Observation - MISSING TILES 90%112.8 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR116.2 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR123 ft. SRV - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR126.8 ft. MGO - General Observation - 90% MISSING TILES129 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR129 ft. SRV - Surface Reinforcement Visible, at 03 o'clock, within 8 inches of joint: YES, Start - LONG REBAR132.8 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR132.8 ft. SRV - Surface Reinforcement Visible, at 03 o'clock, within 8 inches of joint: YES - LONG REBAR137.4 ft. MGO - General Observation - 90% MISSING TILES140.8 ft. SRV - Surface Reinforcement Visible, at 03 o'clock, within 8 inches of joint: YES, Finish - LONG REBAR140.8 ft. SRV - Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR173.8 ft. MGO - General Observation - 90% MISSING TILES176.8 ft. SRV - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR193.7 ft. MGO - General Observation - 20% MISSING TILES START221.7 ft. MGO - General Observation - 90% MISSING TILES224.8 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR226.4 ft. SRV - Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: NO - CIRCUM229 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR235.4 ft. MGO - General Observation - MISSING TILES 100%246.1 ft. SRV - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR262 ft. MGO - General Observation - MISSING TILES 50%285.2 ft. MGO - General Observation - MISSING TILES 60%300.9 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - TILES & DEBRIE307.7 ft. MGO - General Observation - MISSING TILES 90%309.7 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR313.1 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR329.1 ft. SRV - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR344.4 ft. MGO - General Observation - 90% MISSING TILES START346.3 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR350.4 ft. SRV - Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - LONG REBAR & CIRCUM REBAR360.6 ft. SRV - Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR360.6 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR378.6 ft. SRV - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - CIRCUM REBAR383.3 ft. MGO - General Observation - 20% MISSING TILES START402.3 ft. MGO - General Observation - 50% MISSING TILES414.3 ft. SRV - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR445 ft. MGO - General Observation - MISSING TILES 90%448 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR451.4 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR464.3 ft. MGO - General Observation - VEIW TO MH# G318464.3 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish - FALLEN TILES464.3 ft. MGO - General Observation - MH CONN 4:00 ACTIVE464.3 ft. MGO - General Observation - MH CONN 3:00 ACTIVE464.3 ft. MGO - General Observation - MISSING TILES 90% FINISH464.3 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG AREAS OF MISSING TILES464.8 ft. AMH - Downstream Manhole, Survey Ends - 3:45AM

Observation photos (46)

  • General Observation - MISSING TILES 70% START 8:00 TO 4:00

    2 ft. - General Observation - MISSING TILES 70% START 8:00 TO 4:00

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERER AGG AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERER AGG AREAS OF MISSING TILES

  • General Observation - MISING TILES 80%

    9.7 ft. - General Observation - MISING TILES 80%

  • General Observation - MISSING TILES 10% START

    14.8 ft. - General Observation - MISSING TILES 10% START

  • General Observation - 90% MISSING TILES

    41 ft. - General Observation - 90% MISSING TILES

  • Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    46.3 ft. - Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - MISSIING TILES 100%

    61.1 ft. - General Observation - MISSIING TILES 100%

  • General Observation - MISSING TILES 90%

    74.3 ft. - General Observation - MISSING TILES 90%

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    77.4 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

  • Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    78 ft. - Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - 80% MISSING TILES

    86.6 ft. - General Observation - 80% MISSING TILES

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES, Start - LONG REBAR

    92 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES, Start - LONG REBAR

  • Surface Reinforcement Visible, from 09 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

    92.8 ft. - Surface Reinforcement Visible, from 09 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

  • General Observation - LOOSE TILES

    105.7 ft. - General Observation - LOOSE TILES

  • General Observation - MISSING TILES 90%

    109.9 ft. - General Observation - MISSING TILES 90%

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    112.8 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

  • Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    123 ft. - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

  • General Observation - 90% MISSING TILES

    126.8 ft. - General Observation - 90% MISSING TILES

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

    129 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

  • Surface Reinforcement Visible, at 03 o'clock, within 8 inches of joint: YES, Start - LONG REBAR

    129 ft. - Surface Reinforcement Visible, at 03 o'clock, within 8 inches of joint: YES, Start - LONG REBAR

  • General Observation - 90% MISSING TILES

    137.4 ft. - General Observation - 90% MISSING TILES

  • Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    140.8 ft. - Surface Reinforcement Visible, from 01 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - 90% MISSING TILES

    173.8 ft. - General Observation - 90% MISSING TILES

  • General Observation - 20% MISSING TILES START

    193.7 ft. - General Observation - 20% MISSING TILES START

  • General Observation - 90% MISSING TILES

    221.7 ft. - General Observation - 90% MISSING TILES

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    224.8 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

  • Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: NO - CIRCUM

    226.4 ft. - Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: NO - CIRCUM

  • General Observation - MISSING TILES 100%

    235.4 ft. - General Observation - MISSING TILES 100%

  • Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    246.1 ft. - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

  • General Observation - MISSING TILES 50%

    262 ft. - General Observation - MISSING TILES 50%

  • General Observation - MISSING TILES 60%

    285.2 ft. - General Observation - MISSING TILES 60%

  • Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - TILES & DEBRIE

    300.9 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - TILES & DEBRIE

  • General Observation - MISSING TILES 90%

    307.7 ft. - General Observation - MISSING TILES 90%

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    309.7 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

  • Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    329.1 ft. - Surface Reinforcement Visible, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - 90% MISSING TILES START

    344.4 ft. - General Observation - 90% MISSING TILES START

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

    346.3 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

  • Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - LONG REBAR & CIRCUM REBAR

    350.4 ft. - Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - LONG REBAR & CIRCUM REBAR

  • Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    378.6 ft. - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

  • General Observation - 20% MISSING TILES START

    383.3 ft. - General Observation - 20% MISSING TILES START

  • General Observation - 50% MISSING TILES

    402.3 ft. - General Observation - 50% MISSING TILES

  • Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    414.3 ft. - Surface Reinforcement Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - MISSING TILES 90%

    445 ft. - General Observation - MISSING TILES 90%

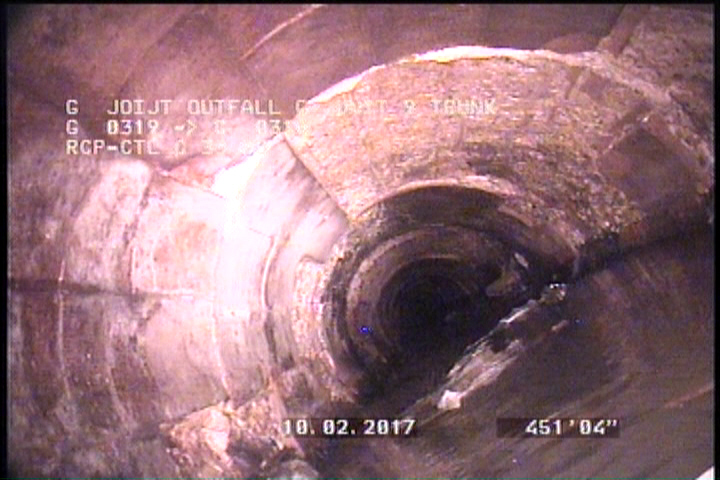

  • Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    448 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

  • Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR

    451.4 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR

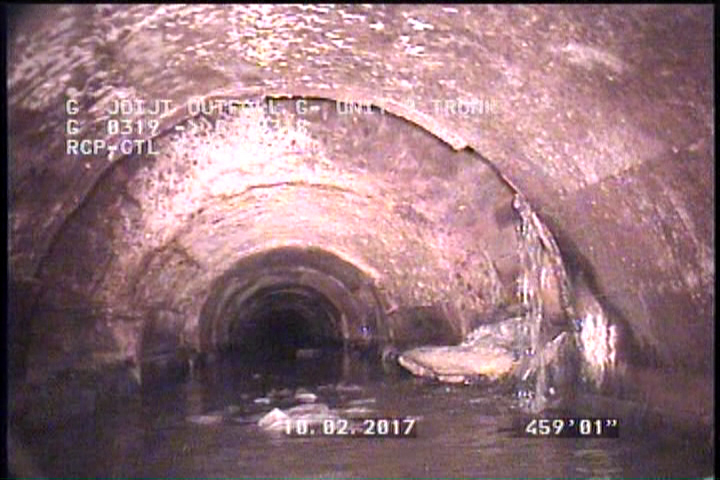

  • General Observation - VEIW TO MH# G318

    464.3 ft. - General Observation - VEIW TO MH# G318

All inspections of P01755Work order 0646225

Observations (69)

DistanceCodeObservation
2MGOMISSING TILES 70% START 8:00 TO 4:00
464.3MGOVEIW TO MH# G318
74.3MGOMISSING TILES 90%
464.8AMH3:45AM
445MGOMISSING TILES 90%
464.3DSZFALLEN TILES
360.6SRVLONG & CIRCUM REBAR
173.8MGO90% MISSING TILES
235.4MGOMISSING TILES 100%
464.3MGOMH CONN 4:00 ACTIVE
300.9DSZTILES & DEBRIE
193.7MGO20% MISSING TILES START
2SAMSEVERER AGG AREAS OF MISSING TILES
344.4MGO90% MISSING TILES START
132.8SRVCIRCUM REBAR
41MGO90% MISSING TILES
78SRVCIRCUM REBAR
105.7MGOLOOSE TILES
285.2MGOMISSING TILES 60%
383.3MGO20% MISSING TILES START
116.2SRVLONG & CIRCUM REBAR
350.4SRVLONG REBAR & CIRCUM REBAR
0MWL—
109.9MGOMISSING TILES 90%
414.3SRVCIRCUM REBAR
92SRVLONG REBAR
464.3MGOMH CONN 3:00 ACTIVE
77.4SAMSEVERE AGG
0MWM—
112.8SRVLONG & CIRCUM REBAR
137.4MGO90% MISSING TILES
98.2SRVLONG REBAR
224.8SRVLONG & CIRCUM REBAR
307.7MGOMISSING TILES 90%
309.7SRVLONG & CIRCUM REBAR
92.8SRVCIRCUM REBAR
129SRVCIRCUM REBAR
329.1SRVCIRCUM REBAR
132.8SRVLONG REBAR
46.3SRVCIRCUM REBAR
246.1SRVLONG & CIRCUM REBAR
98.2DSZFALLEN TILES
448SRCLONG & CIRCUM REBAR
378.6SRVCIRCUM REBAR
262MGOMISSING TILES 50%
402.3MGO50% MISSING TILES
140.8SRVLONG REBAR
61.1MGOMISSIING TILES 100%
221.7MGO90% MISSING TILES
346.3SRVCIRCUM REBAR
126.8MGO90% MISSING TILES
140.8SRVCIRCUM REBAR
14.8DSZFALLEN TILES
86.6MGO80% MISSING TILES
14.8MGOMISSING TILES 10% START
451.4SRCLONG & CIRCUM REBAR
176.8SRVCIRCUM REBAR
0AMH2:25AM
123SRVCIRCUM REBAR
464.3MGOMISSING TILES 90% FINISH
129SRVLONG REBAR
98.2SRVCIRCUM REBAR
229SRVLONG & CIRCUM REBAR
9.7MGOMISING TILES 80%
313.1SRVLONG & CIRCUM REBAR
464.3SAMSEVERE AGG AREAS OF MISSING TILES
4.8DSZFALLEN TILES
226.4SRVCIRCUM
360.6SRVCIRCUM REBAR

Properties (4)

custom_field_three
LONG & CIRCUM REBAR
custom_field_two
1
customer
LACSD
datetime
2017-10-02T01:51:01-07:00
