Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2017, 11:05 AM

  • G 0324_G 0323_9302017_041025.mp4

Date
09/30/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01760
Time
4:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0649
Sewer Name
01 JOINT OUTFALL G - UNIT 9 TRUNK
City
BELL GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
30 in.
Upstream MH
G 0323
Downstream MH
G 0324
Dir. of Survey
Upstream
Length Surveyed
219.8 ft.
Total Length
219.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0323 to G 0324
MH: G 0323MH: G 0324upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:40AM0.4 ft. MGO - General Observation - MAG COAT 100% FINISH0.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.4 ft. MGO - General Observation - 30% MISSING TILES UNDER MAG COAT FINISH97.2 ft. MGO - General Observation - 60% MISSNG TILES UNDER MAG113.8 ft. MGO - General Observation - 30% MISSING TILES START UNDER MAG COAT189.5 ft. MGO - General Observation - MISSING TILES 20% START196.5 ft. MGO - General Observation - MISSING TILES UNDER MAG204.3 ft. MGO - General Observation - MISSING TILES UNDER MAG211 ft. MGO - General Observation - MISSING TILES UNDER MAG COAT217.8 ft. MGO - General Observation - TILES 90% IN PLACE UNDER MAG COAT217.8 ft. MGO - General Observation - MAG COAT 100% START 8:00 TO 4:00219.8 ft. AMH - Downstream Manhole, Survey Begins - 4:10AM219.8 ft. MWL - Water Level, 10 %of cross sectional area219.8 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (8)

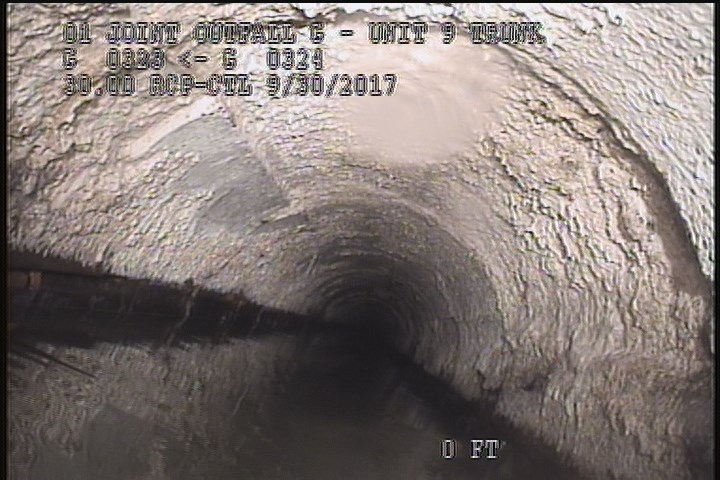

  • General Observation - TILES 90% IN PLACE UNDER MAG COAT

    2 ft. - General Observation - TILES 90% IN PLACE UNDER MAG COAT

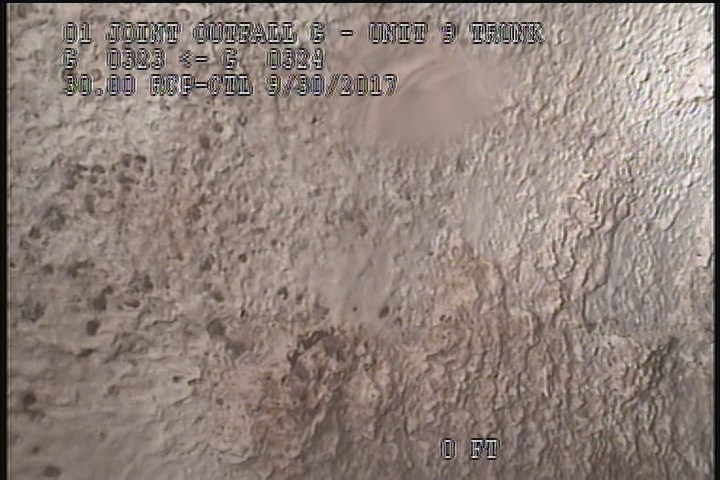

  • General Observation - MAG COAT 100% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 100% START 8:00 TO 4:00

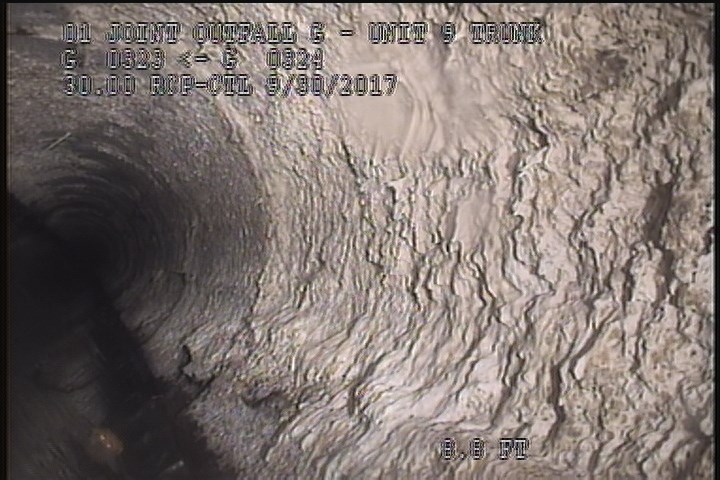

  • General Observation - MISSING TILES UNDER MAG COAT

    8.8 ft. - General Observation - MISSING TILES UNDER MAG COAT

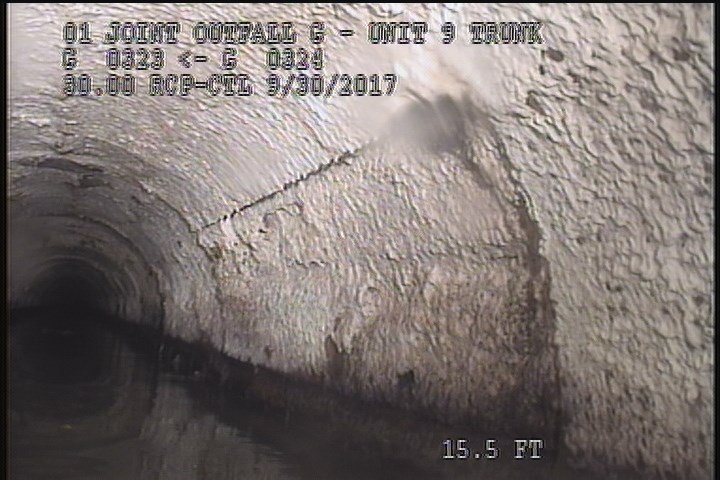

  • General Observation - MISSING TILES UNDER MAG

    15.5 ft. - General Observation - MISSING TILES UNDER MAG

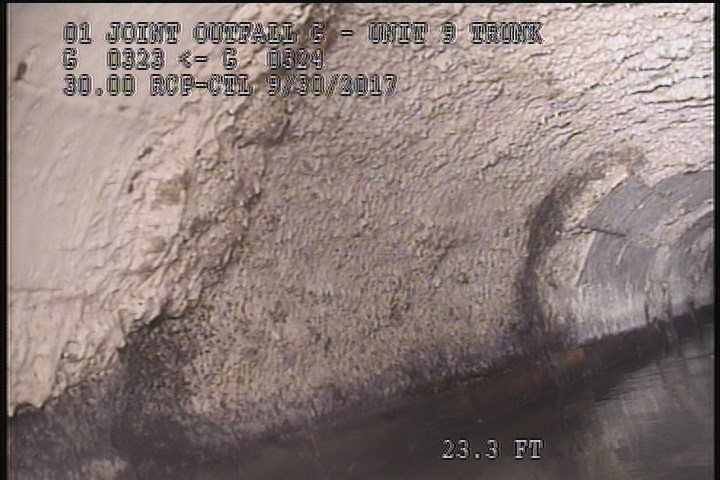

  • General Observation - MISSING TILES UNDER MAG

    23.3 ft. - General Observation - MISSING TILES UNDER MAG

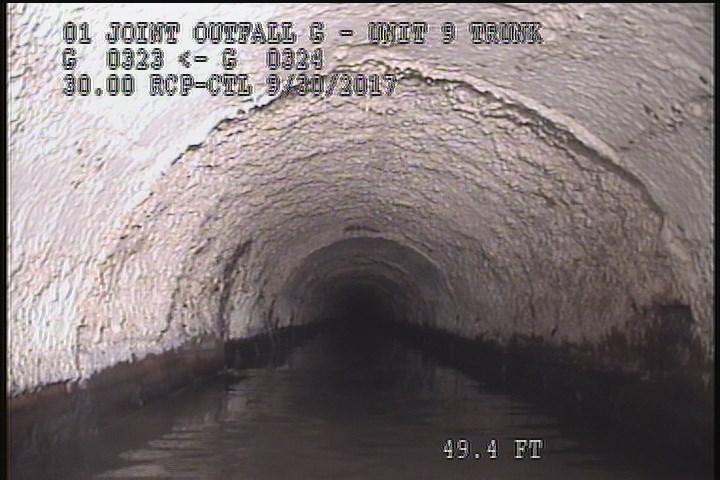

  • General Observation - MISSING TILES 20% START

    30.3 ft. - General Observation - MISSING TILES 20% START

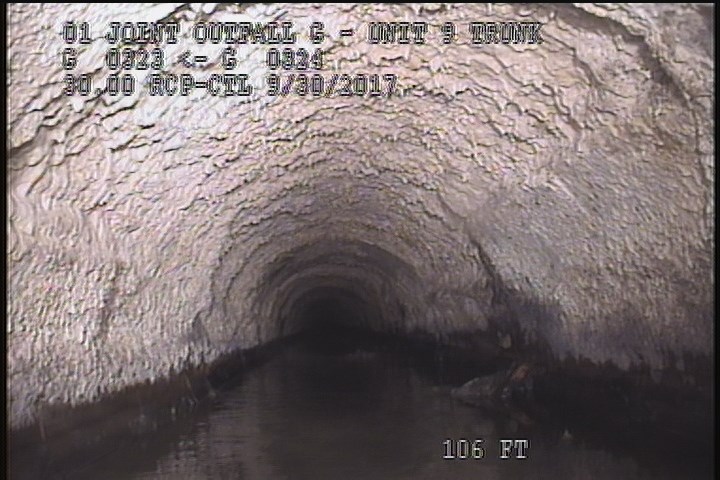

  • General Observation - 30% MISSING TILES START UNDER MAG COAT

    106 ft. - General Observation - 30% MISSING TILES START UNDER MAG COAT

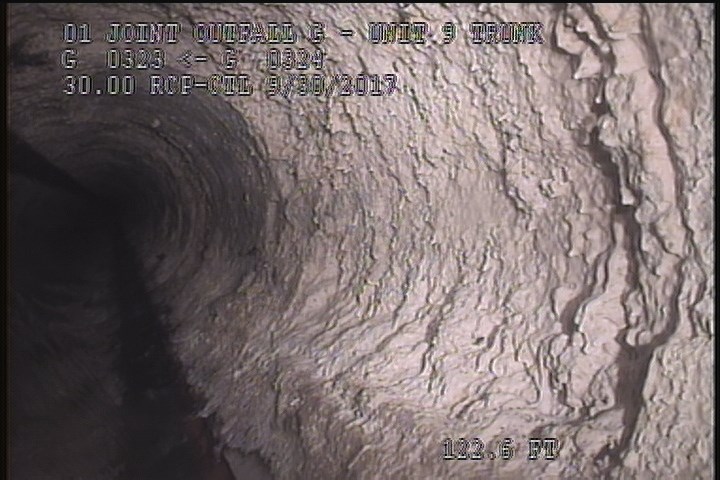

  • General Observation - 60% MISSNG TILES UNDER MAG

    122.6 ft. - General Observation - 60% MISSNG TILES UNDER MAG

All inspections of P01760Work order 0646225

Observations (15)

DistanceCodeObservation
0AMH4:10AM
2MGOTILES 90% IN PLACE UNDER MAG COAT
15.5MGOMISSING TILES UNDER MAG
219.8AMH4:40AM
0MWL—
8.8MGOMISSING TILES UNDER MAG COAT
219.4MGOMAG COAT 100% FINISH
30.3MGOMISSING TILES 20% START
219.4MGOConn. @ Mh, 9 O' Clock. Active
2MGOMAG COAT 100% START 8:00 TO 4:00
122.6MGO60% MISSNG TILES UNDER MAG
219.4MGO30% MISSING TILES UNDER MAG COAT FINISH
0MWM—
23.3MGOMISSING TILES UNDER MAG
106MGO30% MISSING TILES START UNDER MAG COAT

Properties (4)

custom_field_three
20% MISSING TILES
custom_field_two
2
customer
LACSD
datetime
2017-09-30T04:05:05-07:00
