Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2017, 07:55 AM

  • G 0327_G 0326_9302017_012905.mp4

Date
09/30/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01763
Time
12:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0649
Sewer Name
01 JOINT OUTFALL G - UNIT 9 TRUNK
City
BELL GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
30 in.
Upstream MH
G 0327
Downstream MH
G 0326
Dir. of Survey
Downstream
Length Surveyed
340.8 ft.
Total Length
340.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole G 0327 to G 0326
MH: G 0327MH: G 0326downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:20AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 100% START 8:00 TO 4:002 ft. MGO - General Observation - TILES 99% IN PLACE UNDER MAG COAT79.8 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT79.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start94.1 ft. MGO - General Observation - PARTIAL MISSING TILE UNDER MAG205.3 ft. MGO - General Observation - 100% MAG COAT281.1 ft. MGO - General Observation - MISSING TILES UNDER MAG COAT308 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO340.2 ft. MGO - General Observation - MAG COAT 100% FINISH340.2 ft. MGO - General Observation - TILES 99% FINISH , IN PLACE UNDER MAG COAT340.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active340.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish340.8 ft. AMH - Downstream Manhole, Survey Ends - 1:45AM

Observation photos (7)

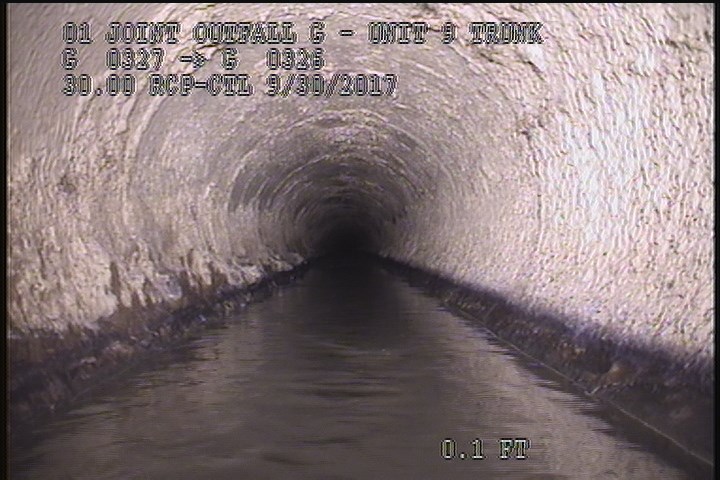

  • General Observation - MAG COAT 100% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 100% START 8:00 TO 4:00

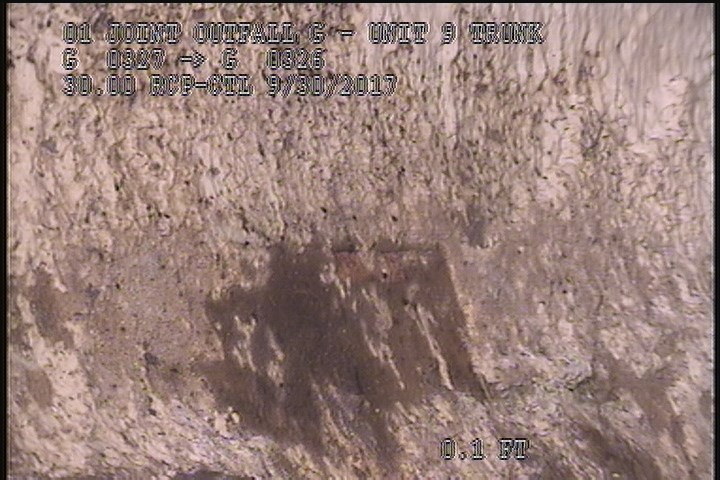

  • General Observation - TILES 99% IN PLACE UNDER MAG COAT

    2 ft. - General Observation - TILES 99% IN PLACE UNDER MAG COAT

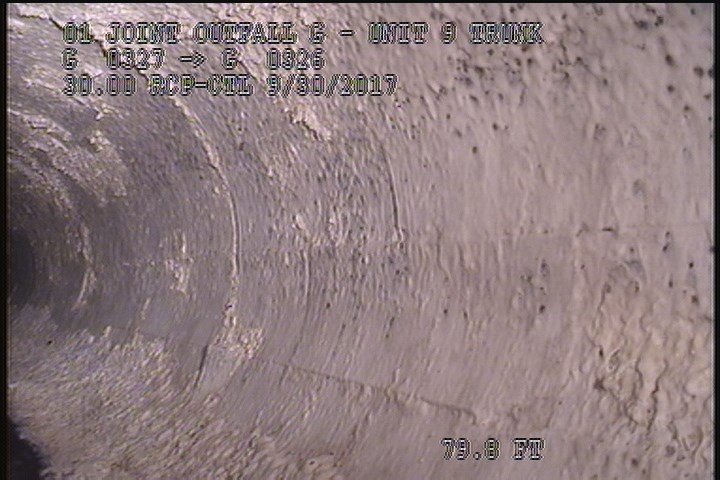

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    79.8 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

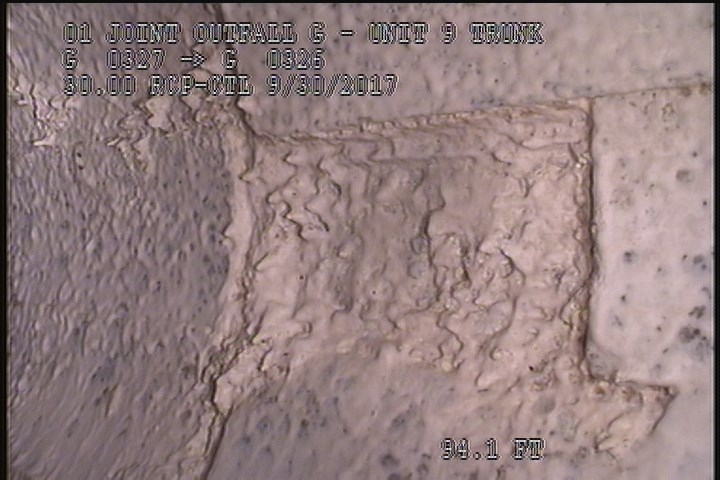

  • General Observation - PARTIAL MISSING TILE UNDER MAG

    94.1 ft. - General Observation - PARTIAL MISSING TILE UNDER MAG

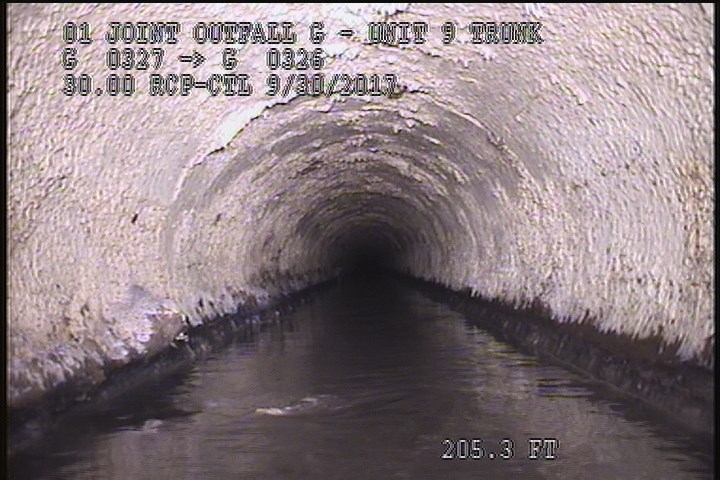

  • General Observation - 100% MAG COAT

    205.3 ft. - General Observation - 100% MAG COAT

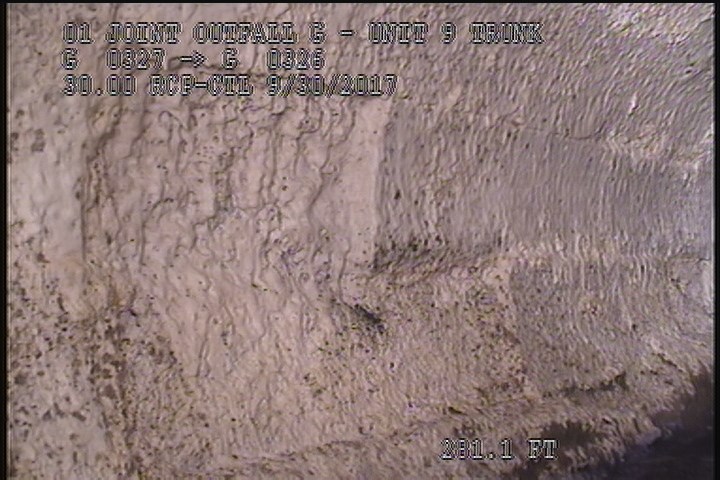

  • General Observation - MISSING TILES UNDER MAG COAT

    281.1 ft. - General Observation - MISSING TILES UNDER MAG COAT

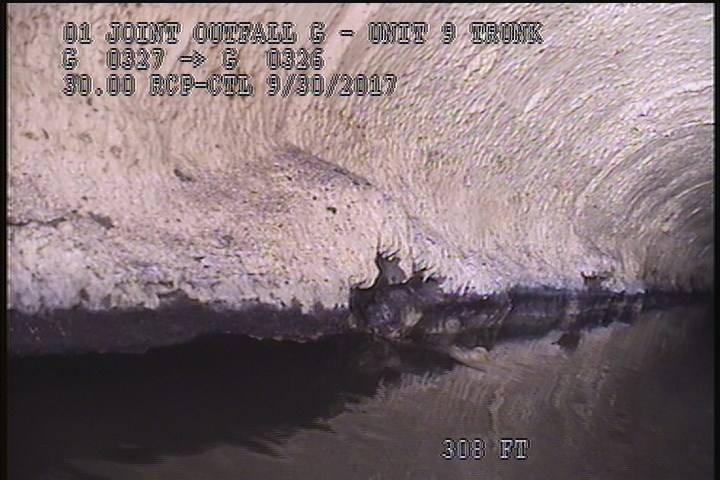

  • Deposits Attached Grease, 10 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO

    308 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO

All inspections of P01763Work order 0646225

Observations (16)

DistanceCodeObservation
0AMH1:20AM
308DAGS—
94.1MGOPARTIAL MISSING TILE UNDER MAG
79.8MGOTILES 100% IN PLACE UNDER MAG COAT
340.2MGOMAG COAT 100% FINISH
79.8DAGS—
2MGOMAG COAT 100% START 8:00 TO 4:00
340.2MGOTILES 99% FINISH , IN PLACE UNDER MAG COAT
340.8AMH1:45AM
205.3MGO100% MAG COAT
0MWM—
340.2MGOConn. @ Mh, 3 O' Clock. Active
340.2DAGS—
2MGOTILES 99% IN PLACE UNDER MAG COAT
281.1MGOMISSING TILES UNDER MAG COAT
0MWL—

Properties (4)

custom_field_three
TILE LINE-TILES 99% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-30T00:55:03-07:00
