Wastewater/Activity/PacpInspection/1.0Sep 30, 2017, 07:45 AM
G 0328_G 0327_9302017_010408.mp4
- Date
- 09/30/2017
- W/O
- 0646225
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00228
- PipeID
- P01764
- Time
- 12:45 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0649
- Sewer Name
- 01 JOINT OUTFALL G - UNIT 9 TRUNK
- City
- BELL GARDENS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- G 0327
- Downstream MH
- G 0328
- Dir. of Survey
- Upstream
- Length Surveyed
- 80.8 ft.
- Total Length
- 80.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

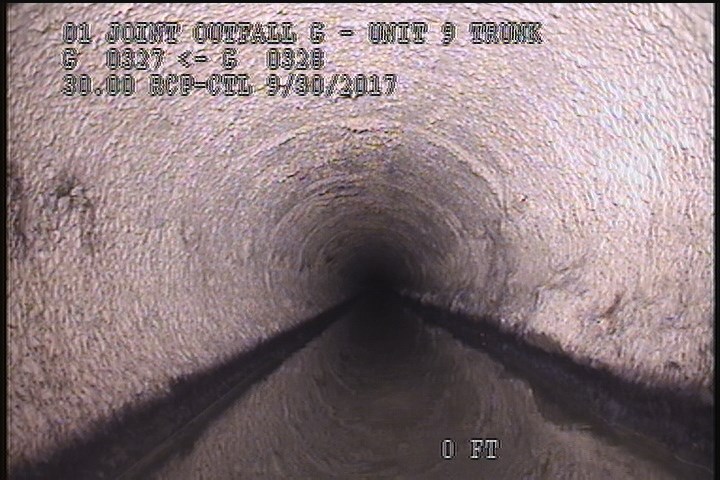

2 ft. - General Observation - MAG COAT 100% START 8:00 TO 4:00

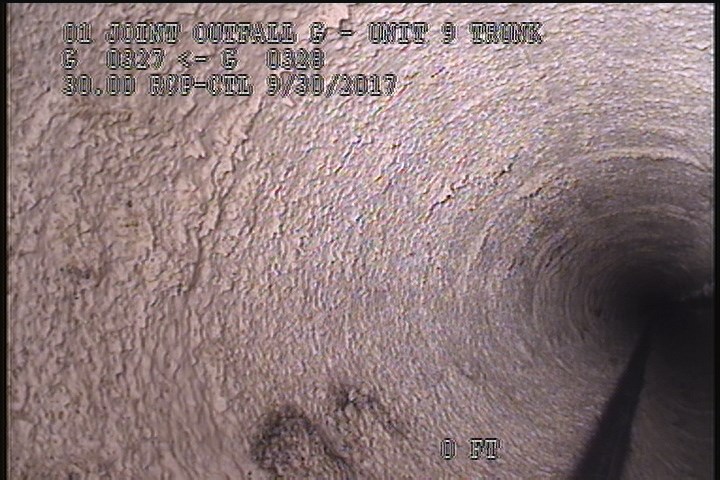

2 ft. - General Observation - TILES 100% IN PLACE START

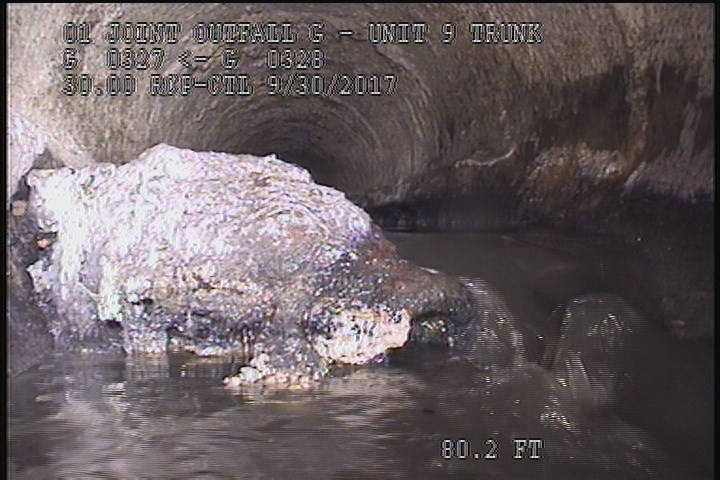

80.4 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 05 to 08 o'clock, , within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 12:50AM |
| 80.4 | MGO | TILES 100% IN PLACE UNDER MAG COAT |
| 2 | MGO | MAG COAT 100% START 8:00 TO 4:00 |
| 0 | MWL | — |
| 80.8 | AMH | 1:00AM( COMPLETED BY REVERSE INSPECTION) |
| 2 | MGO | TILES 100% IN PLACE START |
| 80.4 | MGO | MAG COAT 100% FINISH |
| 80.4 | DAGS | — |
| 1 | MGO | 80' UPSTREAM TO COMPLETE INSPECTION |
Properties (5)
- additional_info
- 80' UPSTREAM TO COMPLETE INSPECTION
- custom_field_three
- TILE LINE-TILES 100% IN PLACE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-30T00:45:00-07:00
