Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 10:49 AM

  • G 0329_G 0328_9292017_041306.mp4

Date
09/29/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01765
Time
3:49 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0648
Sewer Name
01 JOINT OUTFALL G - UNIT 9 TRUNK
City
BELL GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
30 in.
Upstream MH
G 0328
Downstream MH
G 0329
Dir. of Survey
Upstream
Length Surveyed
257.8 ft.
Total Length
257.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole G 0328 to G 0329
MH: G 0328MH: G 0329upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:35AM0.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE0.2 ft. MGO - General Observation - MAG COAT 100% FINISH0.2 ft. MGO - General Observation - TILES 100% IN PLACE FINISH0.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active14.9 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT220.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO235 ft. MGO - General Observation - 100 MAG COAT244.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - TILE255.8 ft. MGO - General Observation - MAG COAT 100%:START 8:00 TO 4:00255.8 ft. MGO - General Observation - TILES 100% IN PLACE START257.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE257.8 ft. MWM - Water Mark, 20 %of cross sectional area257.8 ft. AMH - Downstream Manhole, Survey Begins - 4:15AM257.8 ft. MWL - Water Level, 10 %of cross sectional area257.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (6)

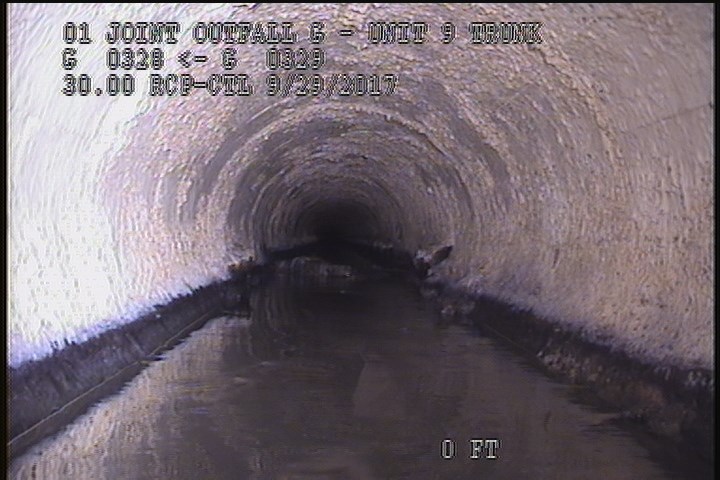

  • General Observation - MAG COAT 100%:START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 100%:START 8:00 TO 4:00

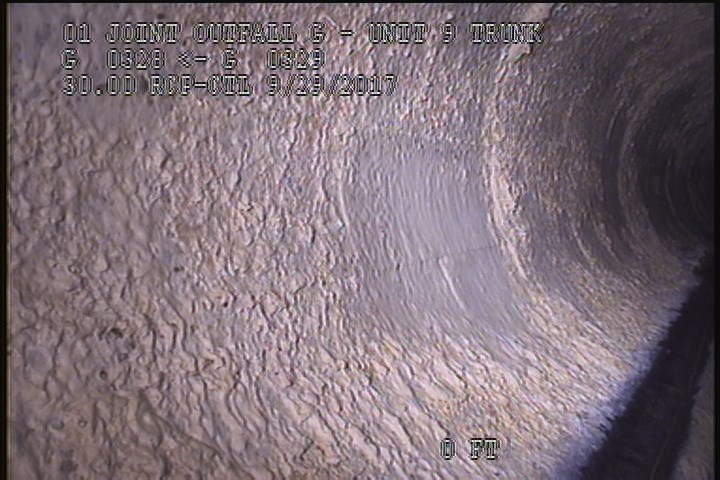

  • General Observation - TILES 100% IN PLACE START

    2 ft. - General Observation - TILES 100% IN PLACE START

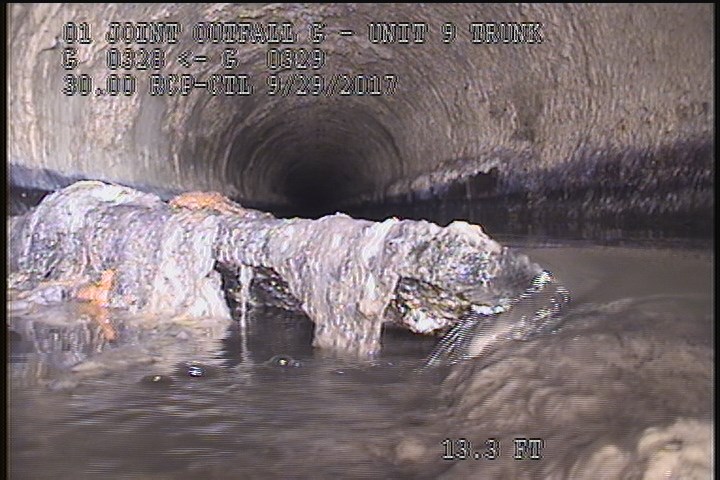

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - TILE

    13.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - TILE

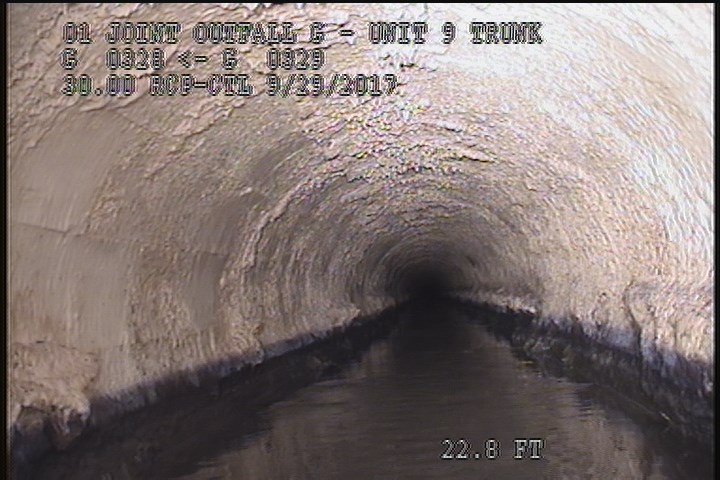

  • General Observation - 100 MAG COAT

    22.8 ft. - General Observation - 100 MAG COAT

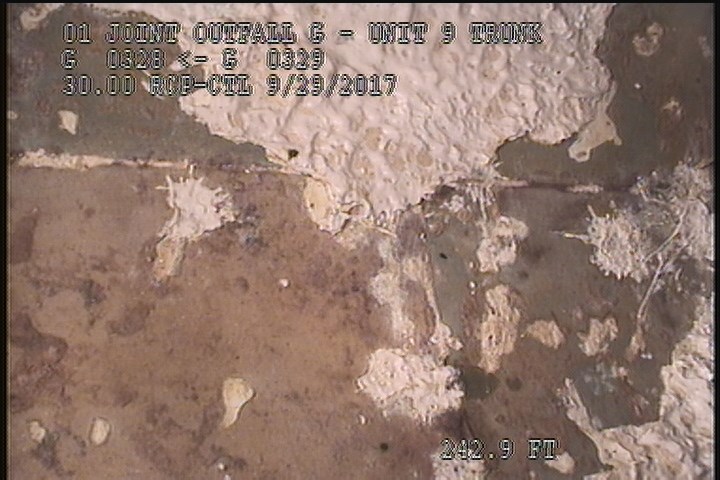

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    242.9 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

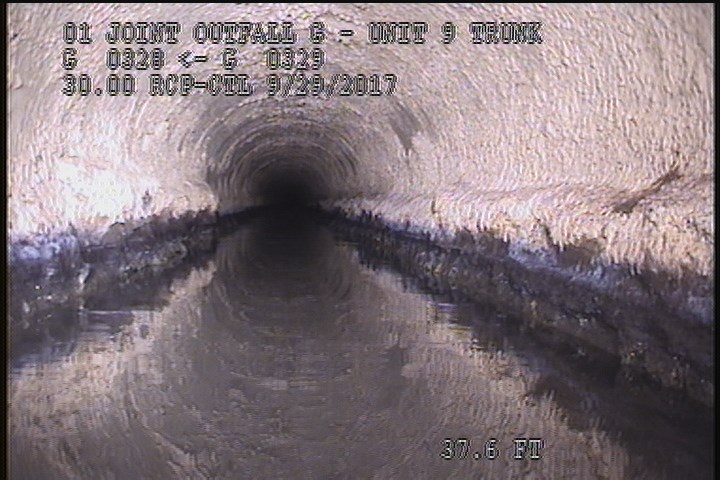

  • Upstream Manhole, Survey Ends - 4:35AM

    257.8 ft. - Upstream Manhole, Survey Ends - 4:35AM

All inspections of P01765Work order 0646225

Observations (16)

DistanceCodeObservation
242.9MGOTILES 100% IN PLACE UNDER MAG COAT
257.8AMH4:35AM
0.2DSZSLUDGE
37.6DAGS—
257.6DSZSLUDGE
22.8MGO100 MAG COAT
2MGOMAG COAT 100%:START 8:00 TO 4:00
0MWM—
257.6MGOMAG COAT 100% FINISH
2MGOTILES 100% IN PLACE START
257.6MGOTILES 100% IN PLACE FINISH
257.6MGOConn. @ Mh, 3 O' Clock. Active
0AMH4:15AM
13.3DSZTILE
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active

Properties (4)

custom_field_three
TILE LINE - TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-29T03:49:58-07:00
